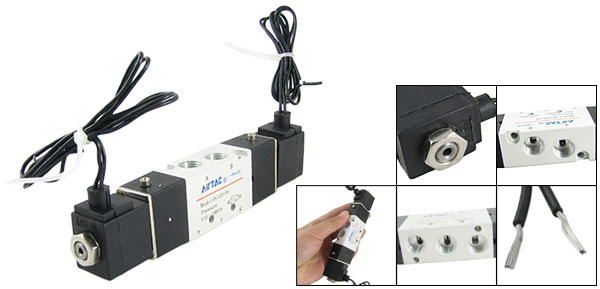

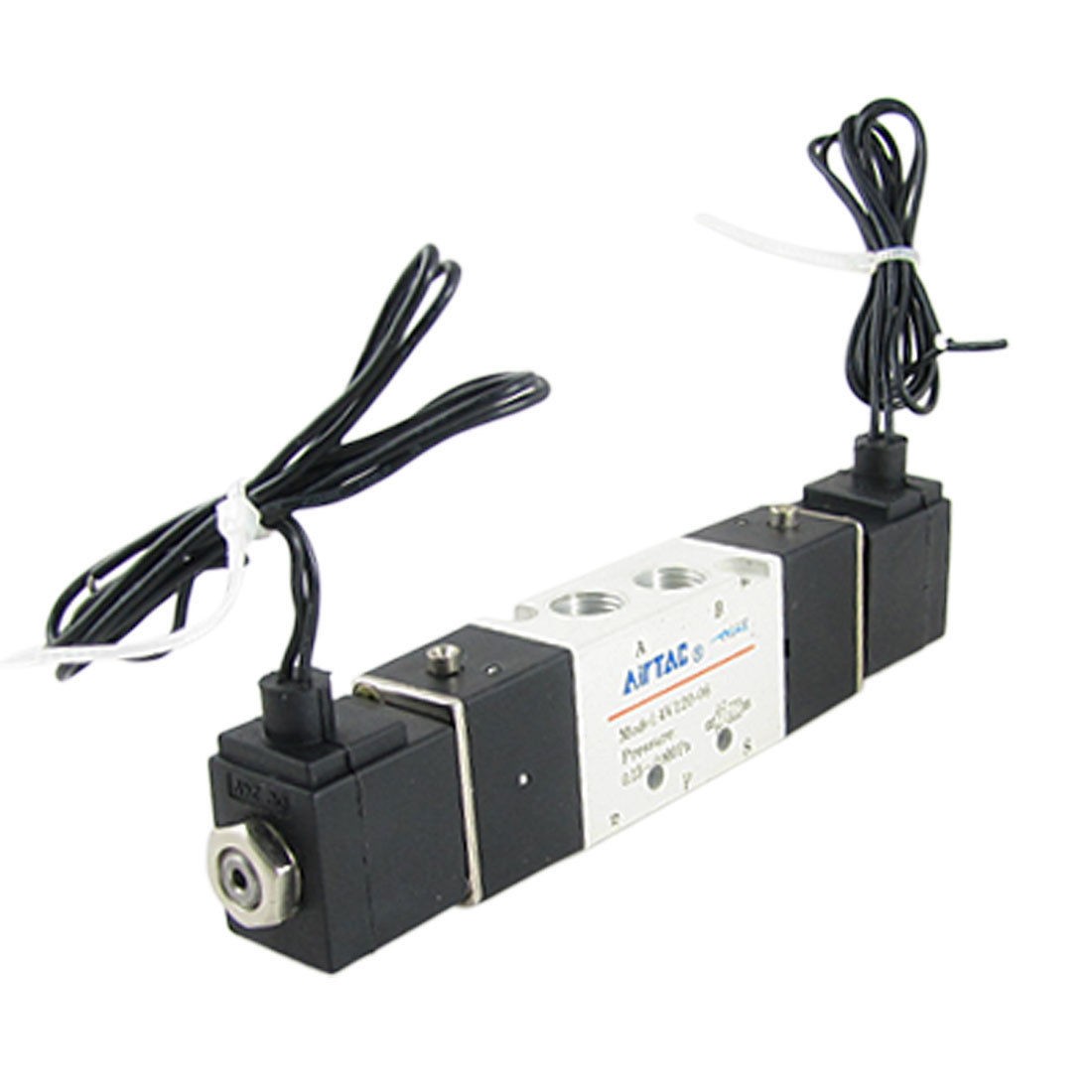

DC 24V 4V120 06 2 Position 5 Way Air Solenoid Valve

More Views

$17.94

Availability: In stock

Qty:

Description

Product Name	Pneumatic Solenoid Valve
Model	4V120-06
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Type	2 Position 5 Way
Material	Resin, Plastic
Working Voltage/Power	DC24V, 2.5W
Temperature	Rise 35°C
Operating Pressure	1.5 ~ 8kgf/cm²
Effective Area	12mm²
Port Connection	Air Inlet =Air Outlet=Exaust =PT 1/8
Air Inlet/ Exaust Diameter	0.87cm/ 0.34"
Cable Length	42cm/ 16.5"
Wiring Form	Direct Lead Wire or Connector
Total Size (Approx.)	13.7 x 2.8 x 1.8cm / 5.8" x 1.1" x 0.7" (L * W * T)
Color	White, Black
Weight	150g
Package Content	1 x Pneumatic Solenoid Valve
