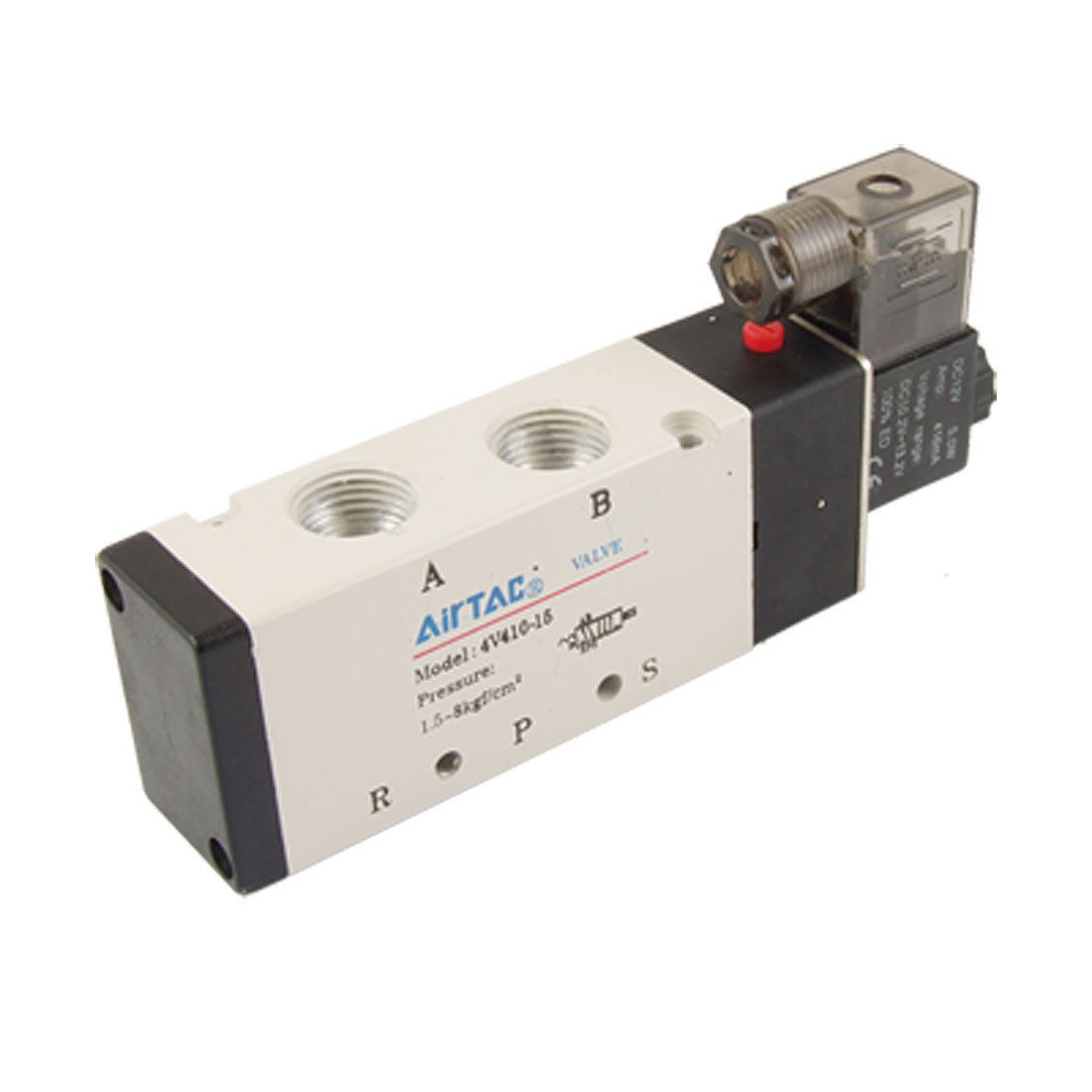

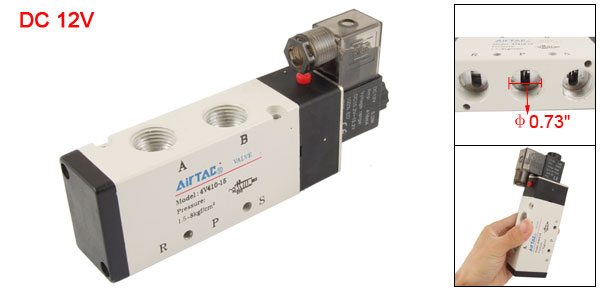

DC 12V 4V410 15 2 Position 5 Way Air Solenoid Valve

More Views

$22.98

Availability: In stock

Qty:

Description

Product Name	Pneumatic Solenoid Valve
Model	4V410-15
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Type	2 Position 5 Way
Material	Resin, Plastic
Working Voltage	DC12V
Temperature	Rise 35°C
Operating Pressure	1.5 ~ 8kgf/cm²
Effective Area	50mm²
Port Connection	Air Inlet =Air Outlet=Exaust =PT 1/2
Air Inlet/ Exaust Diameter	1.85cm/ 0.73"
Black Pull Into Diameter	1.1cm/ 0.43"
Wiring Form	Direct Lead Wire or Connector
Total Size (Approx.)	16.5 x 7.3 x 3.3cm / 5.3" x 2.6" x 0.87" (L * W * T)
Color	White, Black
Weight	489g
Package Content	1 x Pneumatic Solenoid Valve
