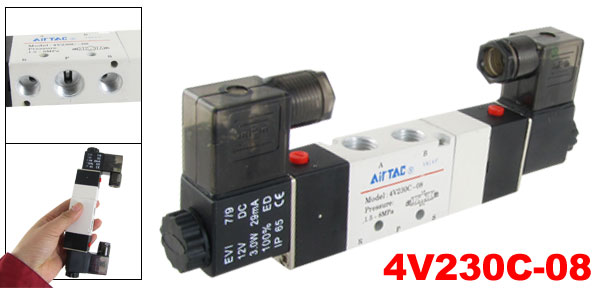

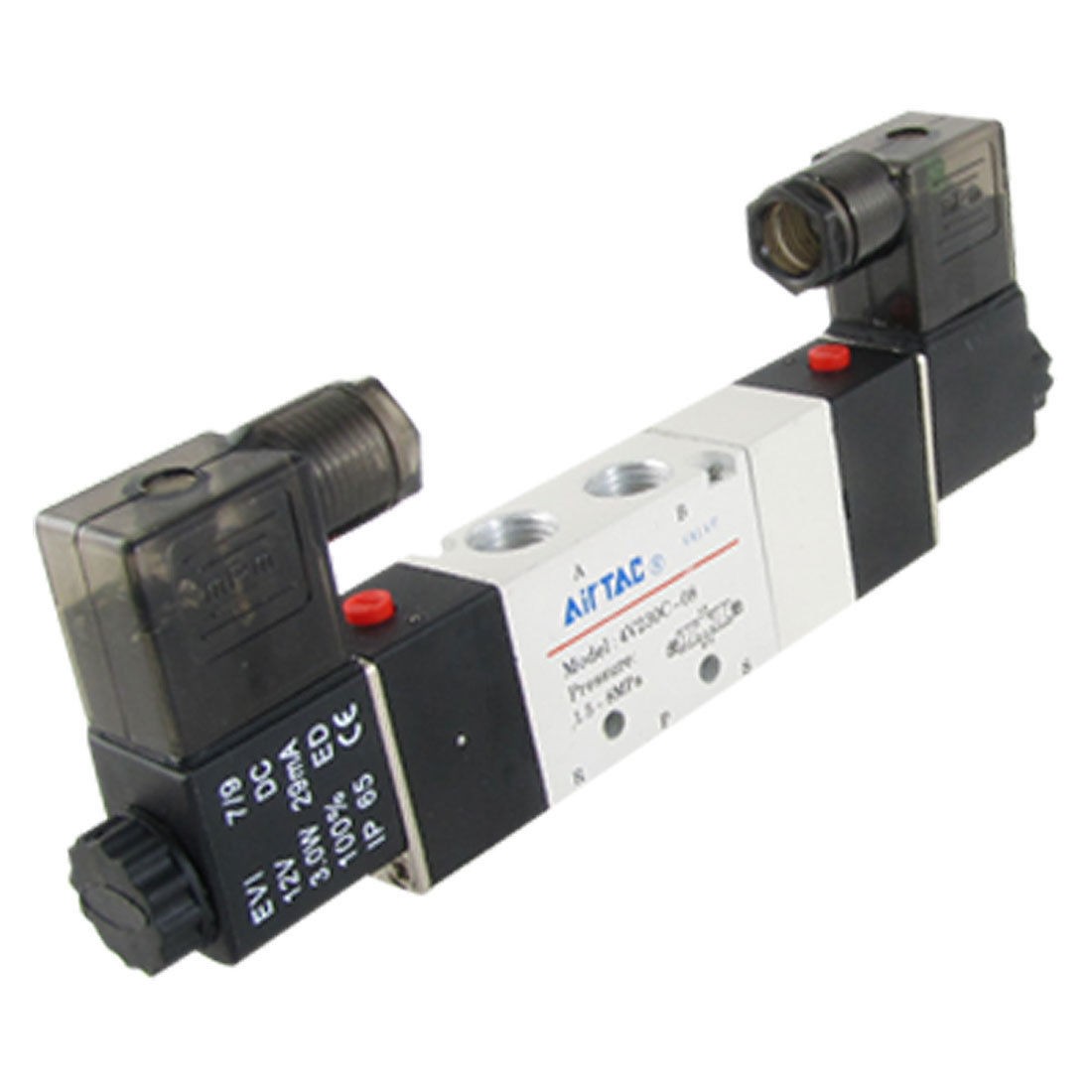

DC 12V 4V230C 08 3 Position 5 Way Pneumatic Solenoid Valve

More Views

$22.71

Availability: In stock

Qty:

Description

Product Name	Pneumatic Solenoid Valve
Model	4V230C-08
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Type	3 Position 5 Way
Material	Resin, Plastic
Working Voltage/Power	DC12V, 3W, 29mA
Port Connection	Air Inlet =Air Outlet=Exaust =PT 1/8
Working Temperature	-5°C - 60°C
Operating Pressure	1.5 ~ 8kgf/cm²
Max Resistance Pressure	12 kgf/cm²
Voltage Range	- 15% - +10%
AirInlet Diameter	11mm/ 0.43"
Air Exhaust Diameter	8mm/ 0.31"
Black Pull Into Diameter	11mm/ 0.43"
Wiring Form	Direct Lead Wire or Connector
Total Size (Approx.)	19 x 6.6 x 2.2cm/ 7.5" x 2.6" x 0.9" (L * W * T)
Color	White, Black
Weight	326g
Package Content	1 x Pneumatic Solenoid Valve
