- Description
-
Details

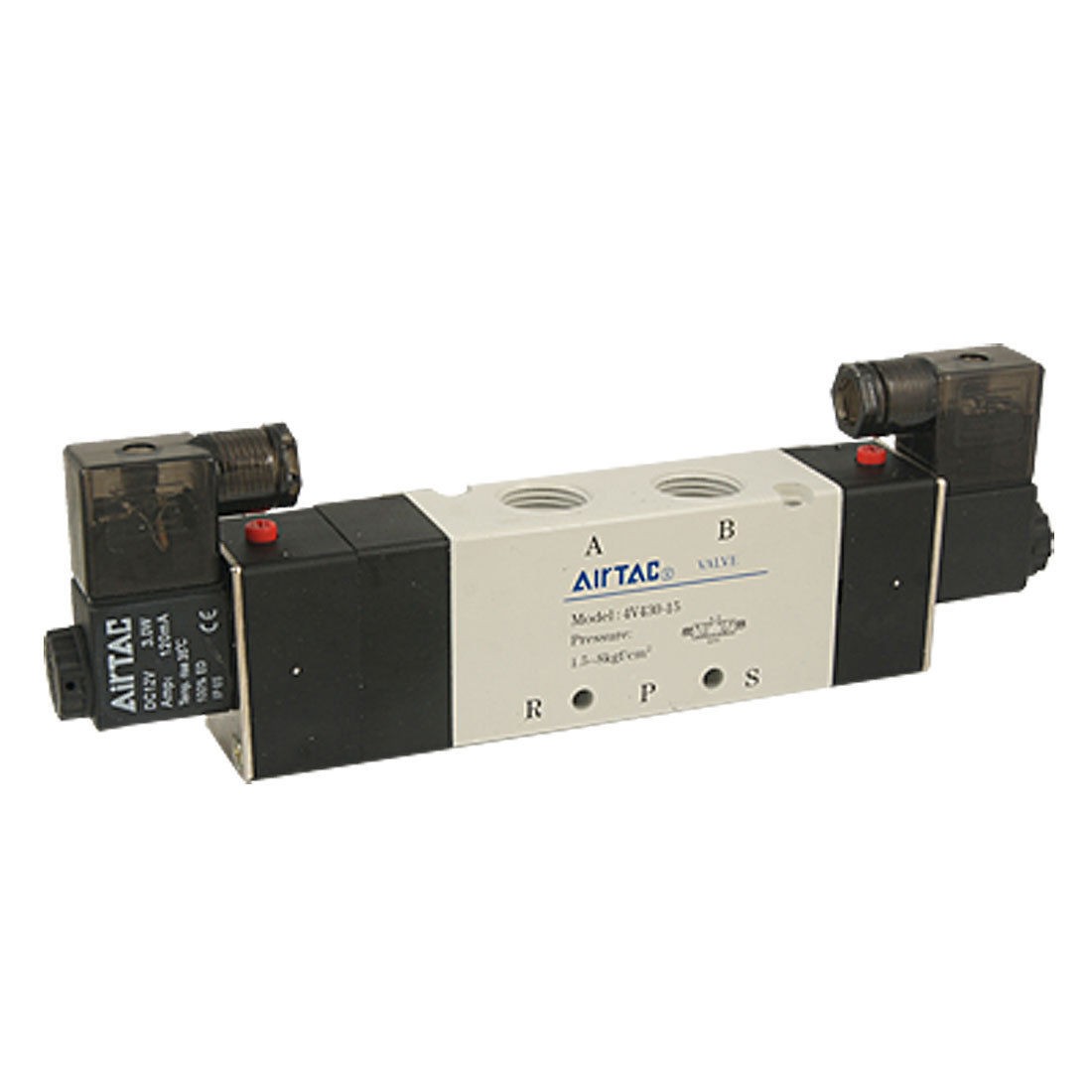

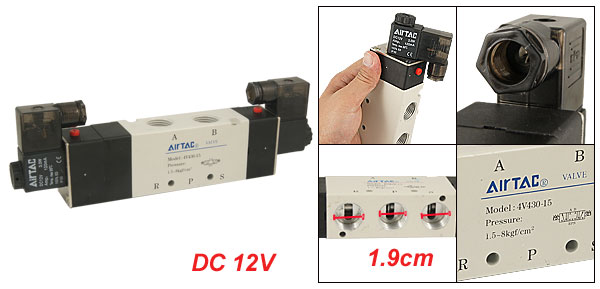

DC 12V 3 Position 5 Way Pneumatic Solenoid Valve New
Product Name Pneumatic Solenoid Valve Model 4V430-15 Working Medium
40 Micron Filtered Air
Motion Pattern
Inner Guide Type
Type 3 Position 5 Way Material Resin, Plastic Working Voltage/Current/Power DC 12V, 120mA, 3W Temperature Rise 35°C Operating Pressure 1.5 ~ 8kgf/cm² Effective Area 30mm² (CV=1.68) Port Connection
Air Inlet = Air Outlet= Air Exhaust = PT1/2
Inlet/Exhaust Port Diameter 1.9cm / 0.75" Black Pull Into Diameter 1.1cm/ 0.43" Wiring Form
Direct Lead Wire or Connector Total Size (Approx.) 24 x 7.3 x 3.3cm / 9.5" x 2.9" x 1.3" (L * W * T) Color White, Black Weight 690g Package Content 1 x Pneumatic Solenoid Valve - Reviews
-
