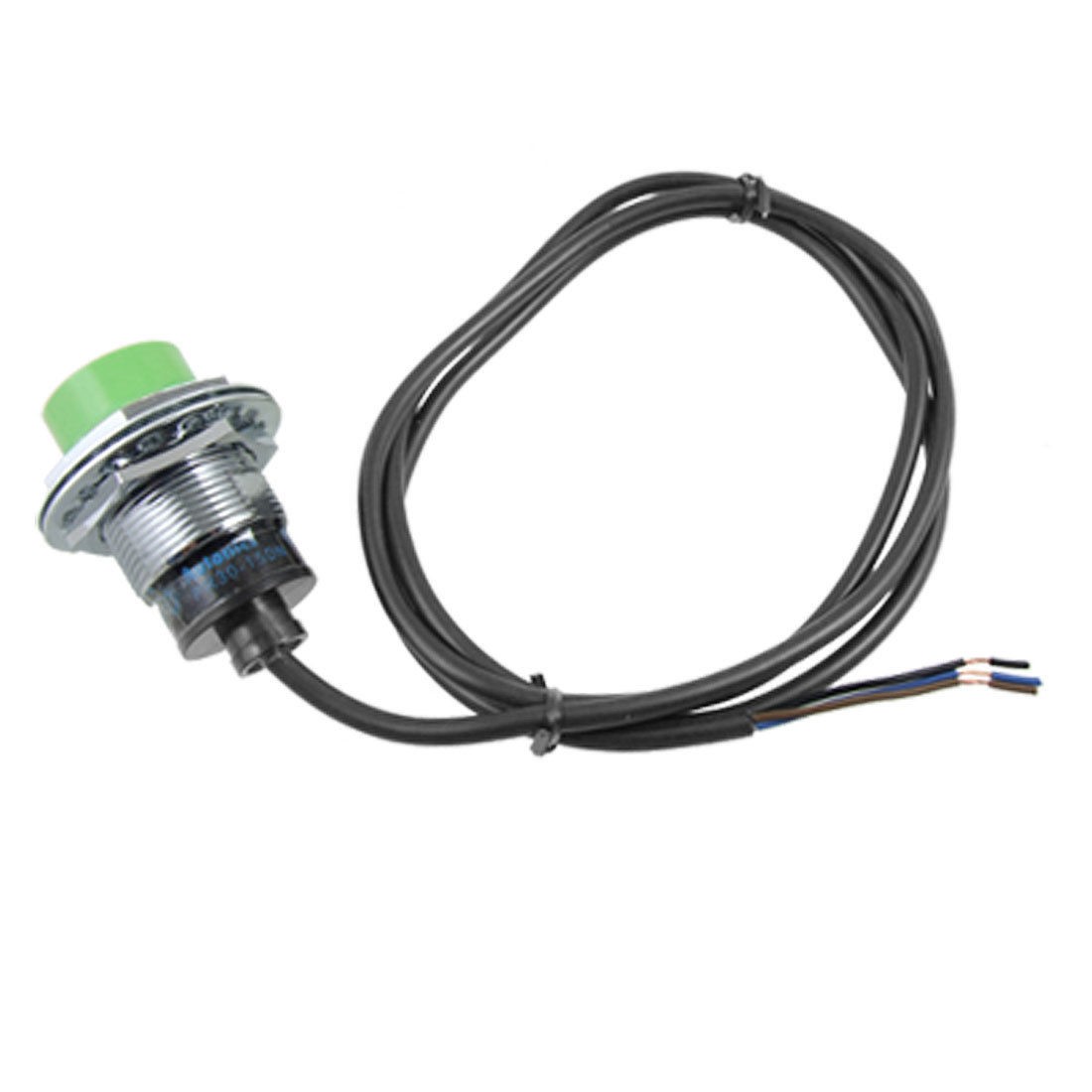

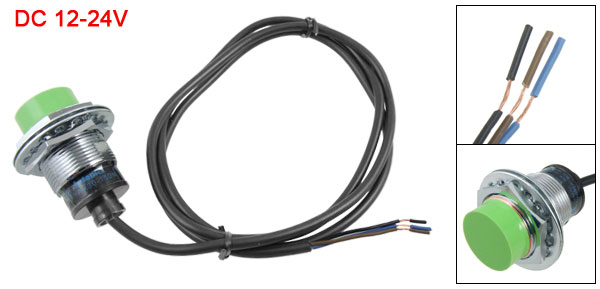

DC 12-24V NPN 3-wire 15mm Inductive Proximity Sensor Approach Switch PR30-15-DN
Product Name Proximity Switch Model PR30-15-DN Wire Type 3 Wire Theory Inductive Sensor Output Type NPN, NO(Normal Open) Diameter of Head 30mm Detecting Distance 15mm±10% Hysteresis Max. 10% of Detecting Distance Standard Detecting Target Size: 45 x 45 x 1mm Material: Iron Setting Distance 0 to 10.5 Supply Voltage DC 12-24V Current Consumption 10mA Response Frequency 100Hz Residual Voltage Max. 1.5V Variation Due To Temp. Fluctuation Max. +10% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output Resistive Load: 200mA Inductive Load: 100mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Indicator Red LED Operating Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse Polarity Protection Surge Protection Circuit Overload Protection Short Circuit Protection Size 6 x 4.7cm/2.4'' x 1.9'' (L*Max. Dia) Cable Length 140cm/55.1" Extenal Material ABS Resin Net Weight 155g Color As Picture Show Package Content 1 x Proximity Switch 1 x English-Korean User Manual - Reviews
-
