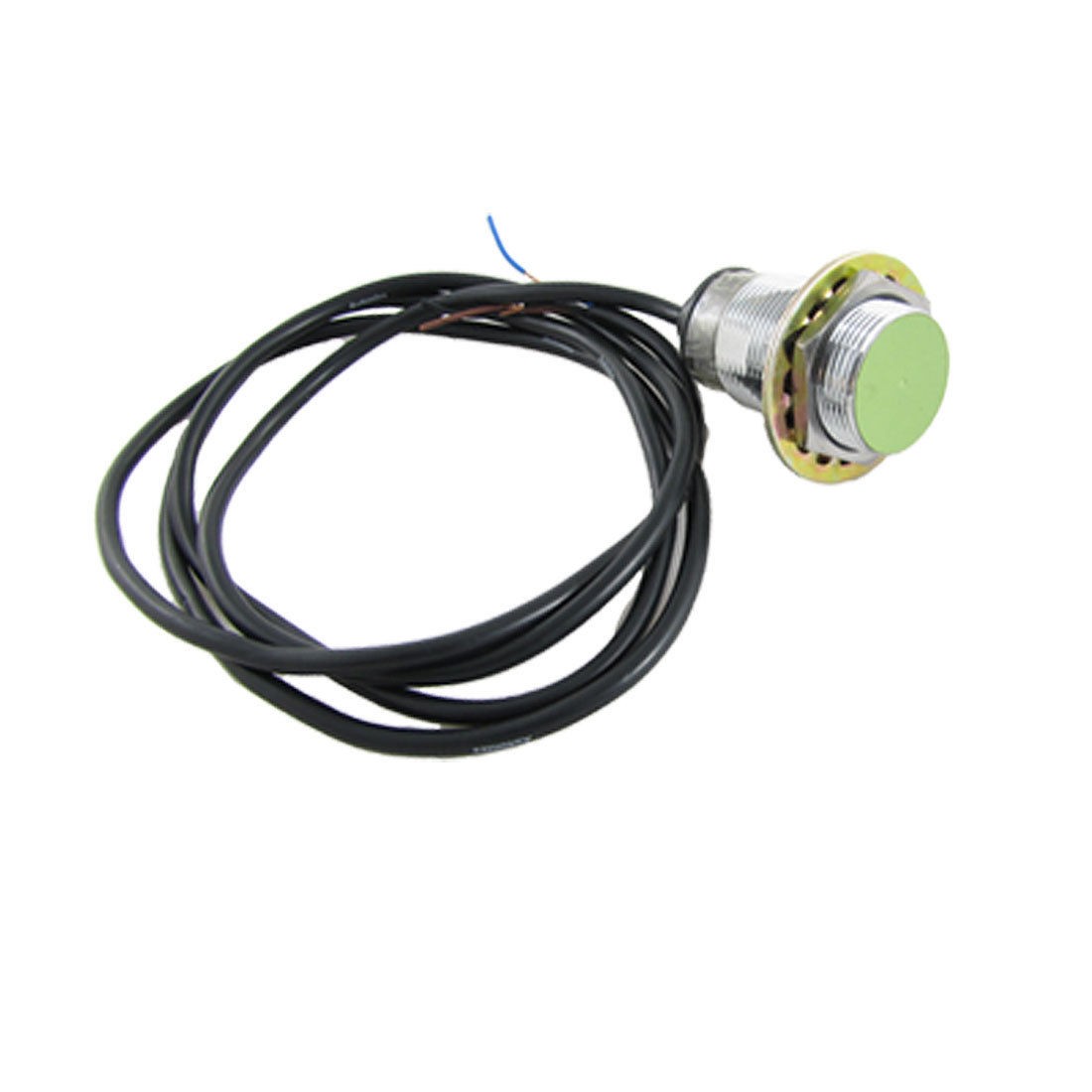

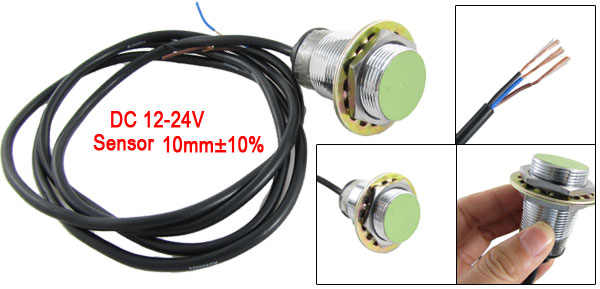

DC 12-24V NPN 3-wire 10mm Inductive Proximity Sensor Approach Switch PR30-10DN
Product Name Proximity Switch Model PR30-10DN Wire Type 3 Wire Theory Inductive Sensor Output Type NPN NO(Normal Open) Diameter of Head 30mm Detecting Distance 10mm±10% Hysteresis Max. 10% of Detecting Distance Standard Detecting Target Size: 30 x 30 x 1mm Material: Iron Setting Distance 0 to 7 Supply Voltage DC 12-24V Current Consumption 10mA Response Frequency 250Hz Residual Voltage Max. 1.5V Variation Due To Temp. Fluctuation Max. +10% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output 200mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Operating Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse Polarity Protection Surge Protection Circuit Overload Protection Short Circuit Protection Size 6 x 5cm / 2.4'' x 2'' ( L * Max. Dia ) Cable Length 180cm / 70.9" Extenal Material ABS Resin Net Weight Approx 143g Color As Picture Show Package Content 1 x Proximity Switch 1 x English-Korean User Manual - Reviews
-
