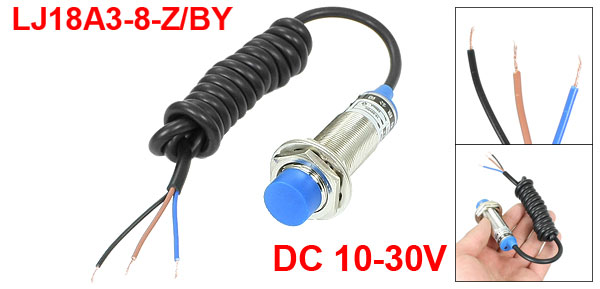

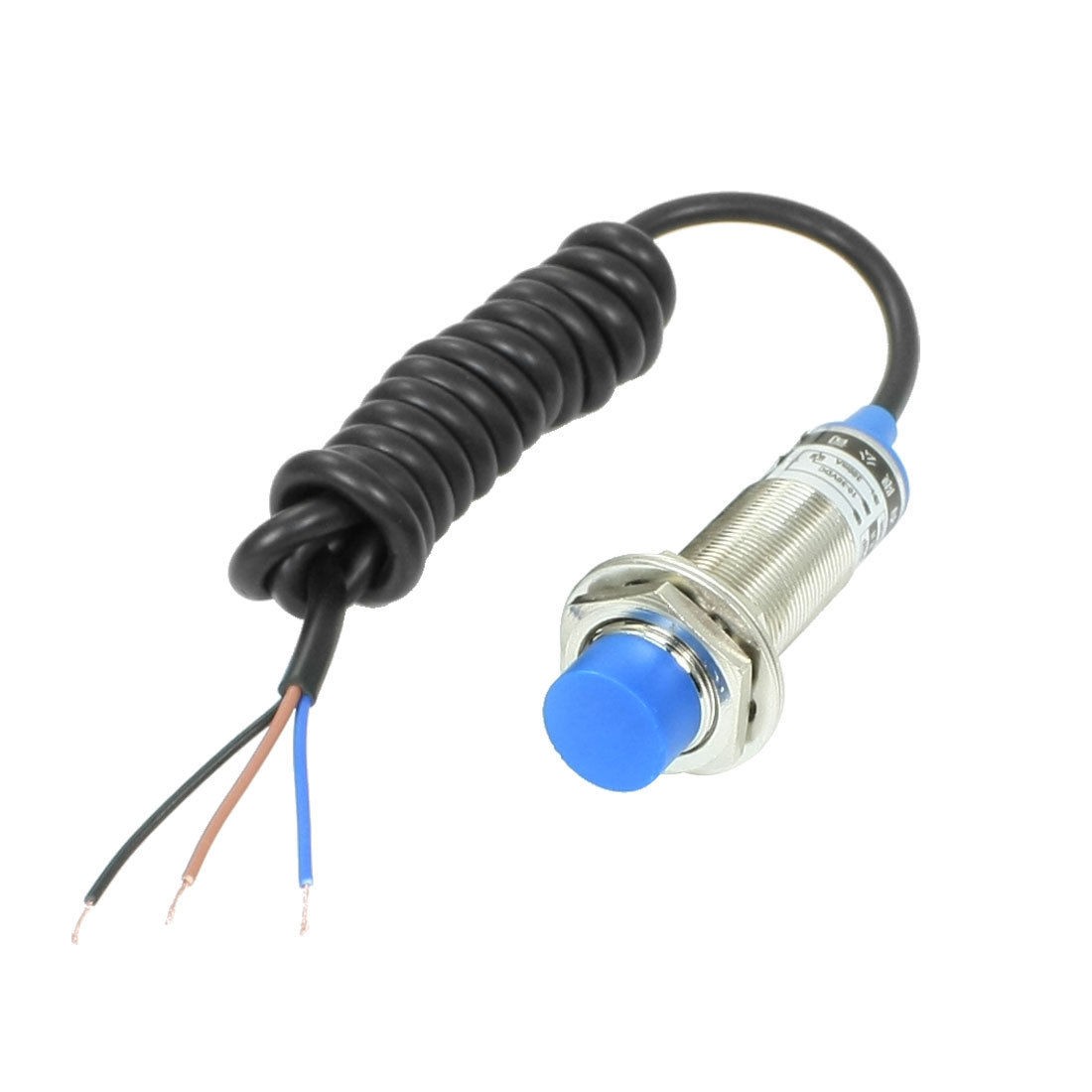

DC 10-30V Inductive Proximity Sensor Switch 8mm Detection PNP NO LJ18A3-8-Z/BY
Product Name Proximity Switch Model LJ18A3-8-Z/BY Wire Type 3 Wire Theory Inductive Sensor Output Type PNP NO(Normal Open) Diameter of Head 17mm Detecting Distance 8mm±10% Hysteresis Max. 10% of Detecting Distance Standard Detecting Target Size: 25 x 25 x 1mm Material: Iron Setting Distance 0 to 5.6 Supply Voltage DC 10-30V Current Consumption 10mA Response Frequency 200Hz Residual Voltage Max. 1.5V Variation Due To Temp. Fluctuation Max. +10% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output 200mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Ambient Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse polarity protection, surge protection, overload & short circuit protection (exception PRS 12) Size 6.5 x 3cm / 2.5'' x 1.2'' (L*Max. Dia) Cable Length 140cm / 55.1" Extenal Material ABS Resin Net Weight 84g Color Silver Tone, Blue Package Content 1 x Proximity Switch - Reviews
-
