Details

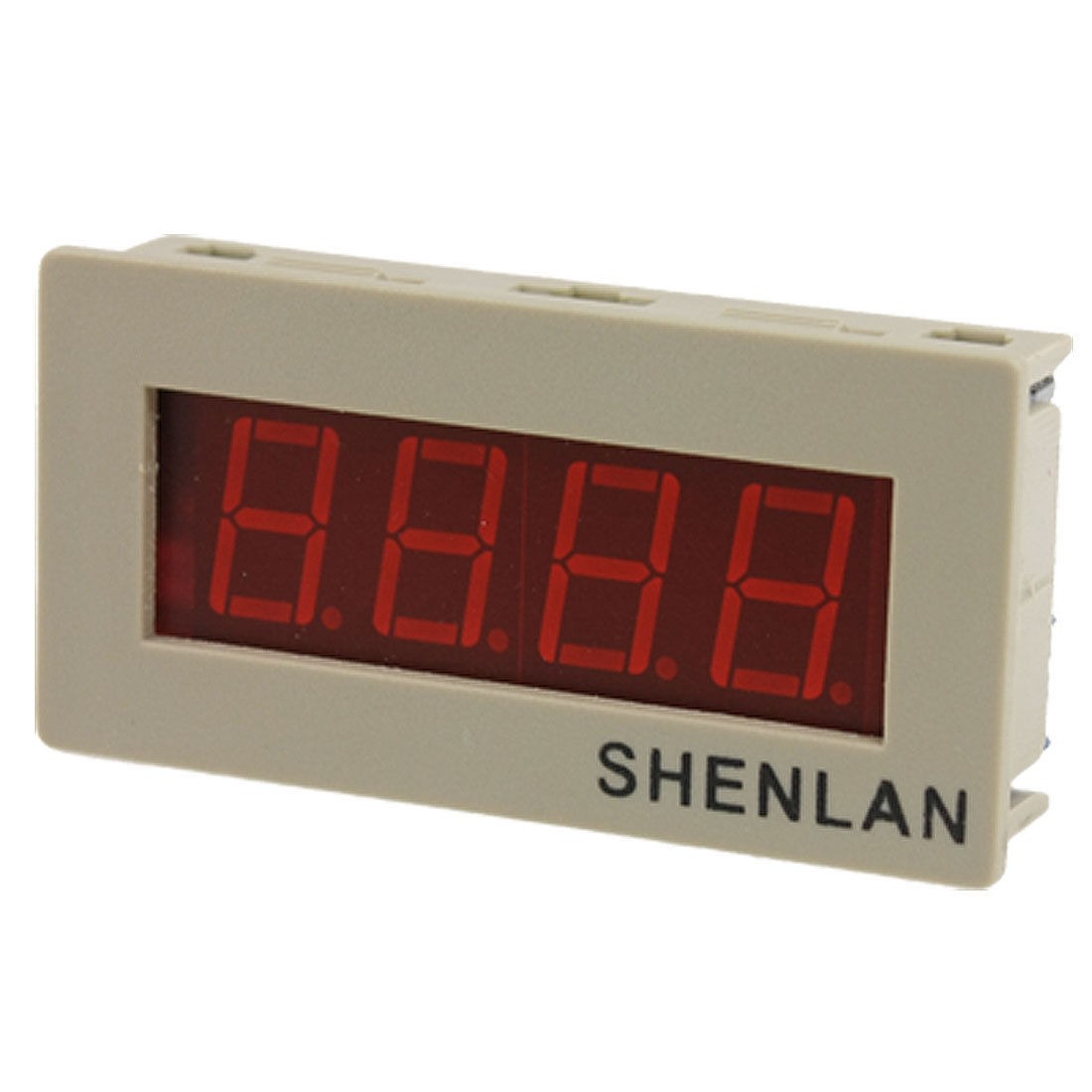

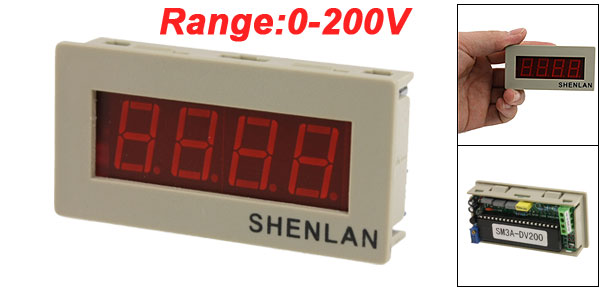

DC 0-200V 3 1/2 LED Digital Panel Voltmeter Voltage Meter Gauge
Product Name 3 1/2 LED Voltmeter Voltage Detection Type DC Voltage Measure Range 0-200V LED Number Display Size 0.55"(Max.H) Power Supply DC 5V ±5% (Option:7~12V DC / 7~30V DC) Input F.S ±199.9V Power Consumption 70mA (Max. when DC 5V power supply) Display Method 7 Segment LED Display Display Range ±1.999A Sampling Time ~2.5 times/sec Response Time ~2 sec.(0~max.) A/D Converter Dual Slot intergral mathrod Display Accuracy ±0.2%F.S±2 Digit(DC)
±0.5%F.S±2 Digit(AC)
Overflow Indication -1 or 1 Total Size 7.3 x 3.6 x 2.1cm/ 2.9" x 1.4" x 0.8"(L*W*Max. T) Panel Mounting Size ~6.8 x 3.4cm/ 2.7" x 1.3"(L*W) Max. Allowable Input 150% for input F.S Insulation Strength AC 2000V 50/60Hz for 1 min Dielectric Resistance(Min.) 100M Ohm(at 500V DC) Ambient Hunidity 0~50 °C and 35%-85%FH External Material Plastic Display Color Red Shell Main Color Gray Weight 38g Package Content 1 x 3 1/2 LED Voltmeter
1 x User Manual
