CV 15HS 1 4 BSP Female Thread Dia Vacuum Ejector Pneumatic Fitting

CV 15HS 1 4 BSP Female Thread Dia Vacuum Ejector Pneumatic Fitting

More Views

CV 15HS 1 4 BSP Female Thread Dia Vacuum Ejector Pneumatic Fitting
$13.48

Availability: In stock

OR
Description

Details

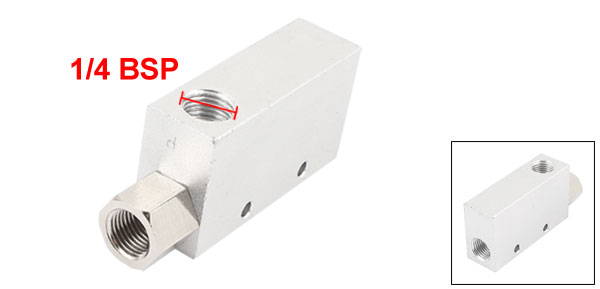

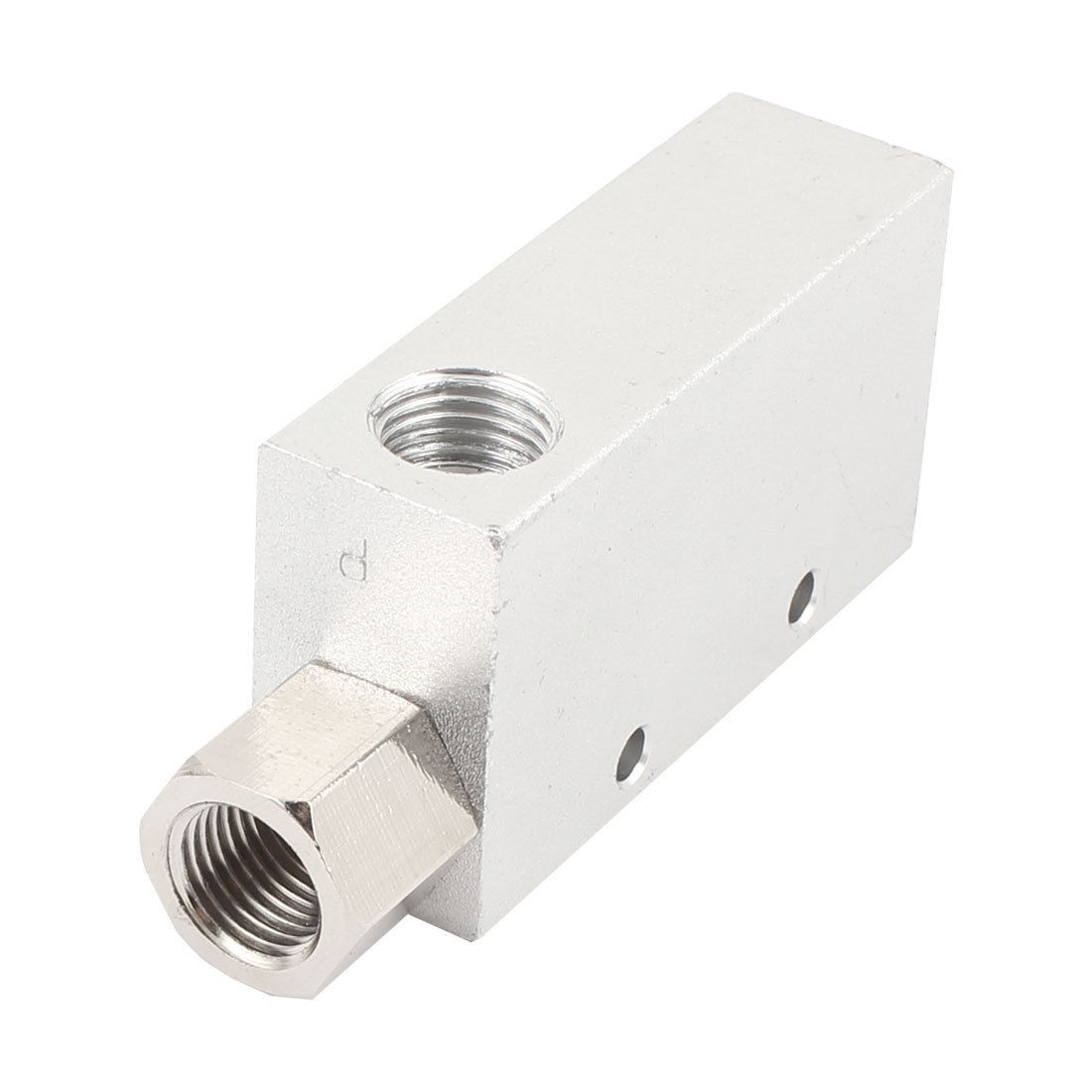

CV-15HS 1/4 BSP Female Thread Dia Vacuum Ejector Pneumatic Fitting

Product Name Vacuum Ejector
Model CV-15HS
Nozzle Diameter 1.5mm
Vacuum Thread Dia 11.44mm/ 1/4 BSP
Inlet Thread Dia 11.44mm/ 1/4 BSP
Outlet Thread Dia 11.44mm/ 1/4 BSP
Mounting Size 4.3 x 20mm/ 0.17" x 0.79" ( Hole Dia * Distance)
Flow Medium Air
Operating Pressure 0.1 ~ 0.6Mpa
Air Comsumption 95 L/min
Vacuum Degree -20-88Kpa
Working Temperature 0-60oC
Total Size 78 x 35 x 20mm/ 3.1" x 1.4" x 0.79" (L*W*T)
Main Material Aluminum Alloy
Color Silver Tone
Net Weight 131g
Package 1 x Vacuum Ejector
