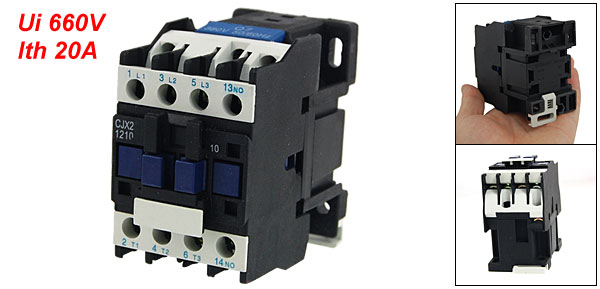

CJX2-1210 660V Ui 12A 3 Poles 1NO 380V 50/60Hz Coil AC Contactor

CJX2-1210 660V Ui 12A 3 Poles 1NO 380V 50/60Hz Coil AC Contactor

More Views

CJX2-1210 660V Ui 12A 3 Poles 1NO 380V 50/60Hz Coil AC Contactor
$17.93

Availability: In stock

OR
Description

Details

CJX2-1210 660V Ui 12A 3 Poles 1NO 380V 50/60Hz Coil AC Contactor

Product Name AC Contactor
Model Number CJX2-1210
Coil Rated Current 380VAC, 50/60Hz
Rated Operational Current 12A
Insulation Current (Ui) 660V
Thermal Current Ith(Ith) 20A
AC-3 Rated Voltage(Ue) 380V 660V
Rated Operational Current(Ie) 12A 8.9A
Controled Power(Pe) 5.5KW 7.5KW
Number of Contact 3P+NO
Overall Size(Approx.) 75 x 45 x 80mm / 2.99'' x 1.85'' x 3.42'' (L*W*H)
Material Plastic, Metal, Electrical Parts
Main Color Black
Net Weight 312g
Package Content 1 x AC Contactor
