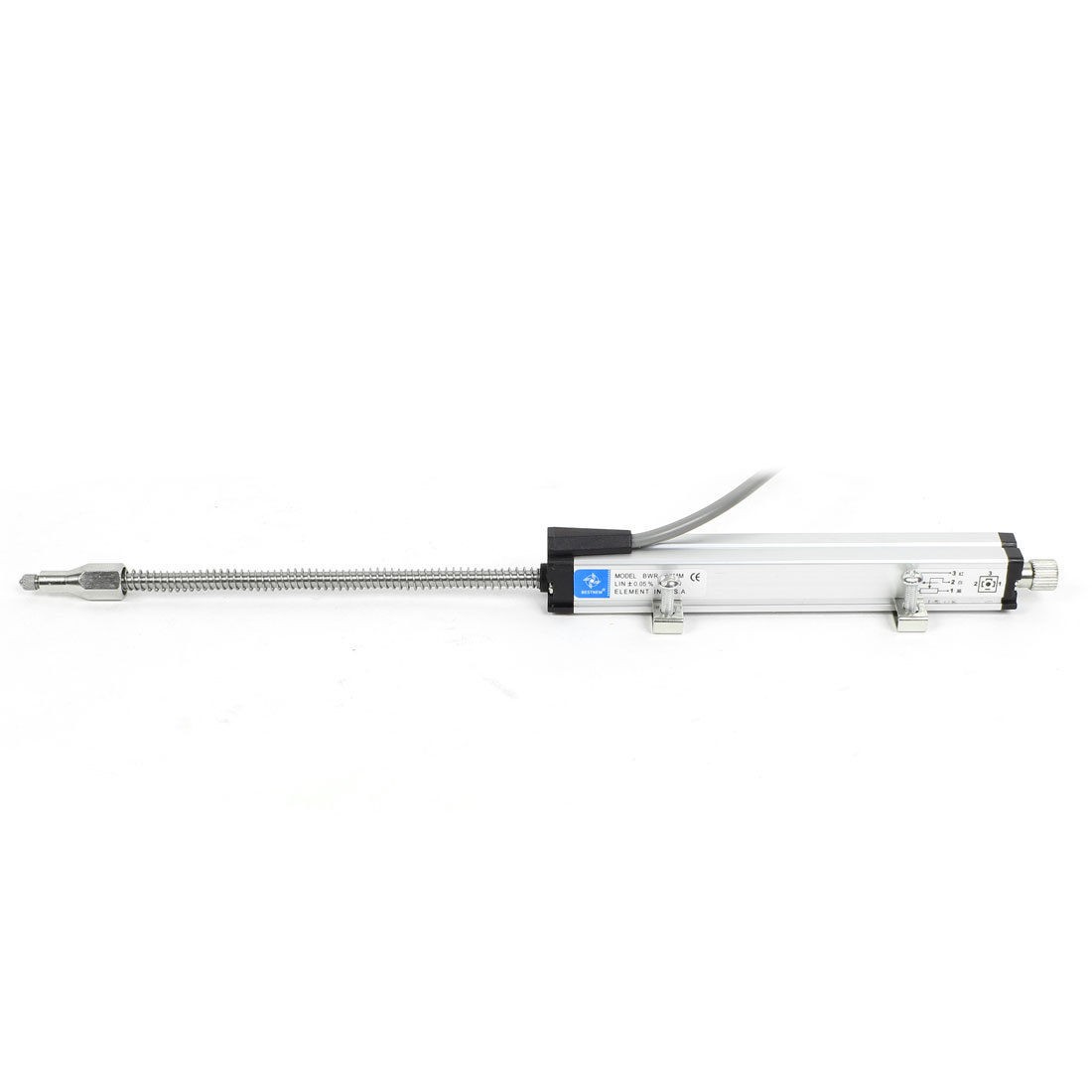

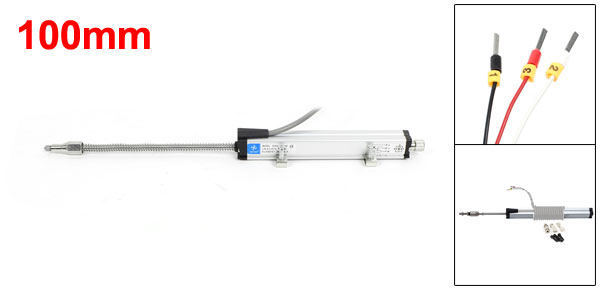

BWR100 100mm Stroke Micro Linear Position Sensor for Injection Molding Machine

Product Name Linear Position Sensor
Model BWR100
Type Self Reset
Measuring Stroke 103mm
Output Wire Quantity 3
Resistance 5K Ohm(+/-10%)
Independent Linearity +/-0.05%
Mechanical Stroke 78mm
Resolution Infinite
Max. Working Speed 5m/s
Recommended Current <=10uA
Recommended Temperature -60-+150C
Body Size 155 x 18 x 18mm/6" x 0.7" x 0.7"(L*W*H)
Wire Length 128cm/4.2Ft
Rod Dia 5mm/0.2"
Mounting Screw Dia M4/0.16"
Materials Metal, Plastic
Net Weight 176g
Package Content 1 x Linear Position Sensor
Several Installation Parts
