BWM50 50mm Stroke Micro Linear Position Sensor for Injection Molding Machine

BWM50 50mm Stroke Micro Linear Position Sensor for Injection Molding Machine

More Views

BWM50 50mm Stroke Micro Linear Position Sensor for Injection Molding Machine
$51.27

Availability: In stock

OR
Description

Details

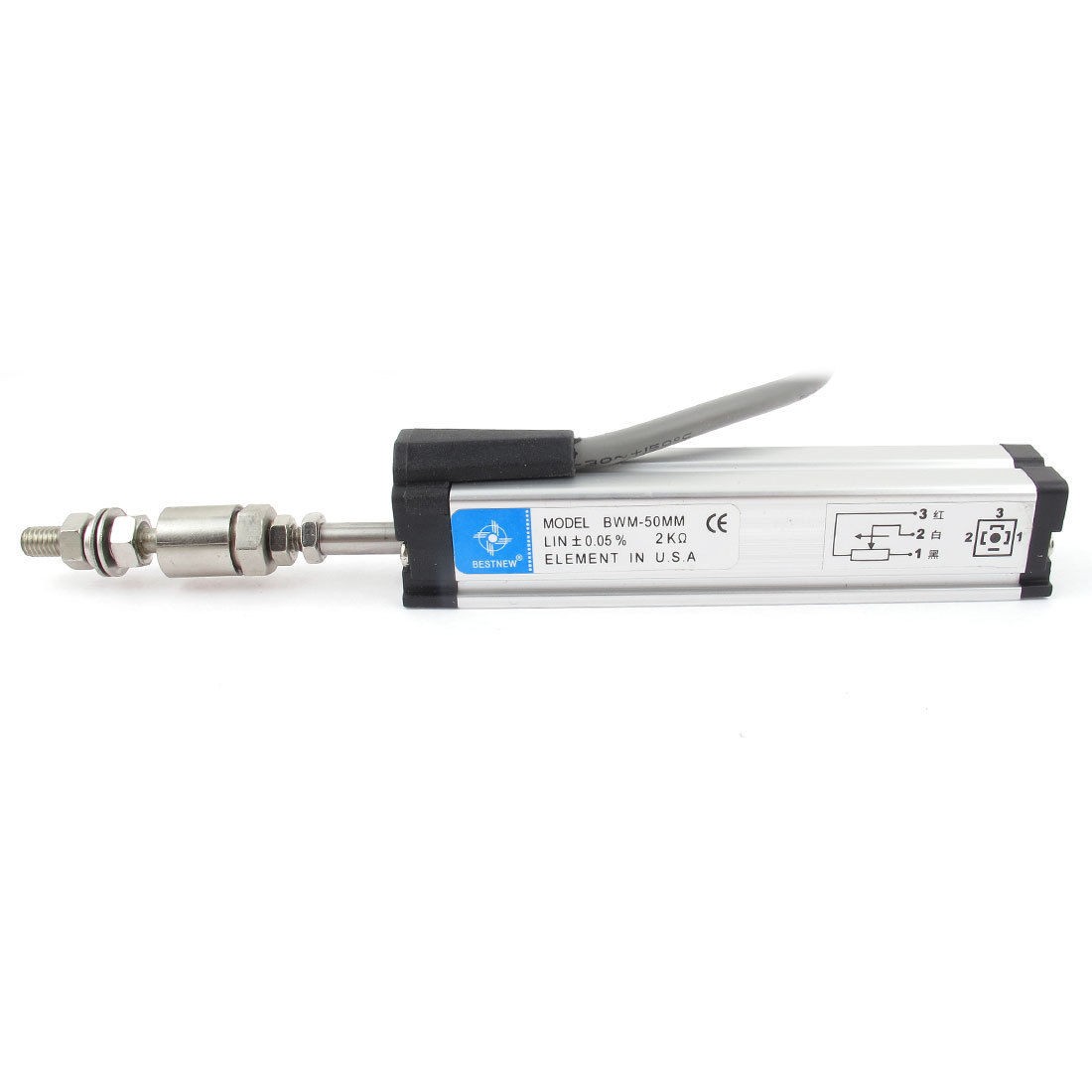

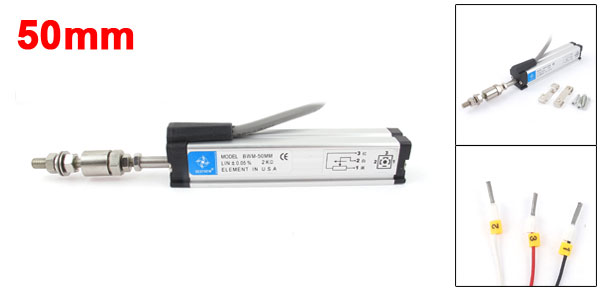

BWM50 50mm Stroke Micro Linear Position Sensor for Injection Molding Machine

Product Name Linear Position Sensor
Model BWM50
Measuring Stroke 50mm
Repeated Accuracy 0.01mm
Output Wire Quantity 3
Resistance 2K Ohm(+/-10%)
Independent Linearity +/-0.05%
Mechanical Stroke 53mm
Resolution Infinite
Max. Working Speed 10m/s
Recommended Current <=10uA
Recommended Temperature -60-+150C
Body Size 96 x 18 x 18mm/3.8" x 0.7" x 0.7"(L*W*H)
Wire Length 140cm/4.6Ft
Universal Joint Thread Dia M5/0.2"
Mounting Screw Dia M4/0.16"
Materials Metal, Plastic
Net Weight 127g
Package Content 1 x Linear Position Sensor
1 x  Universal Joint
Several Installation Parts
