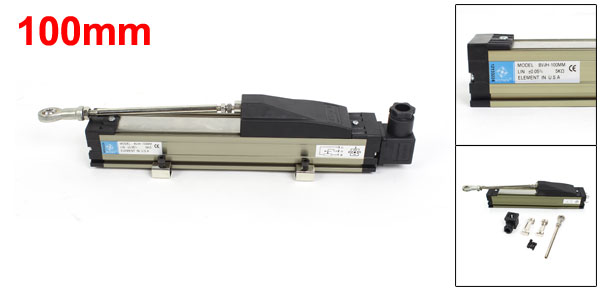

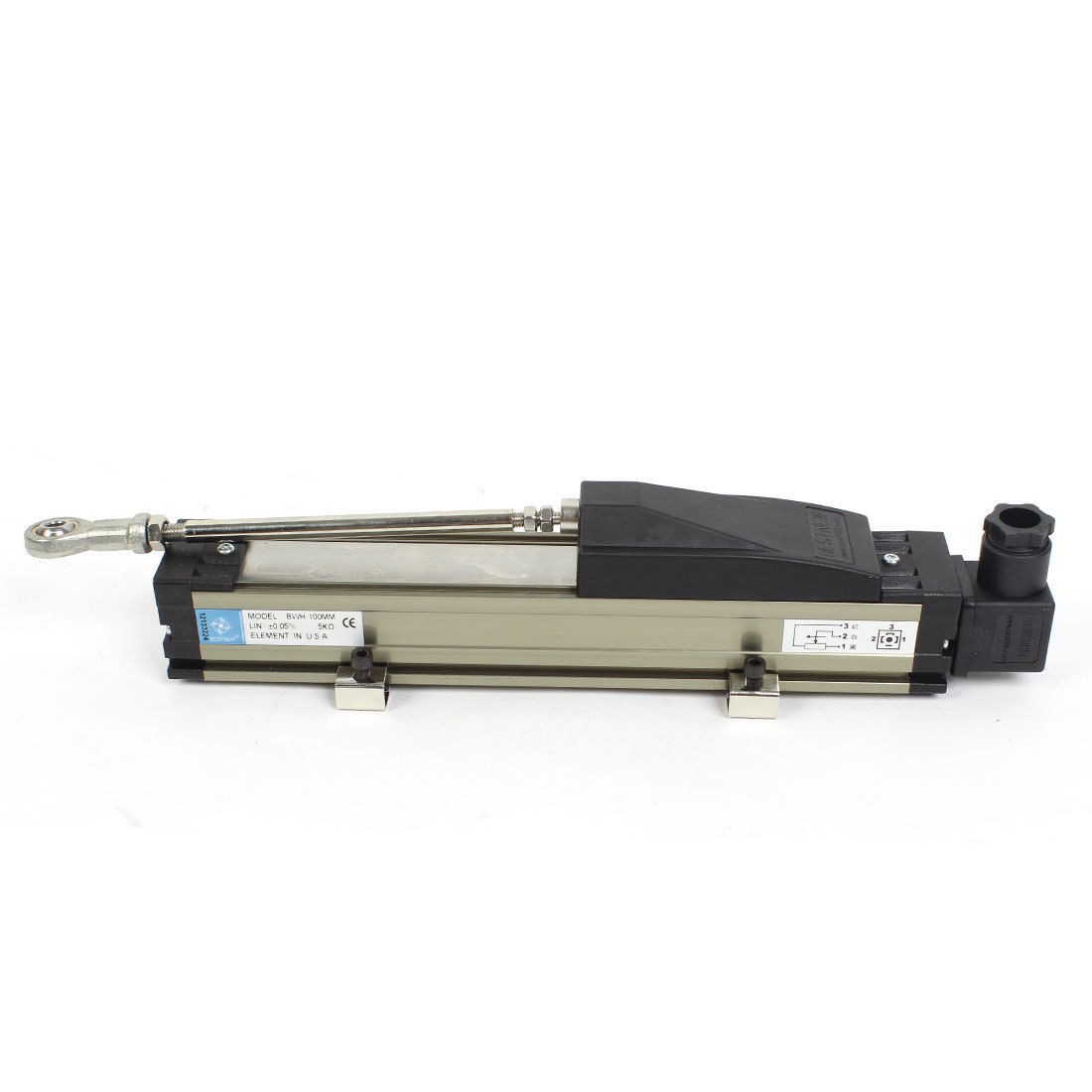

BWH100 100mm Slide Type Linear Position Sensor Transducer for Electronic Scale

BWH100 100mm Slide Type Linear Position Sensor Transducer for Electronic Scale

More Views

BWH100 100mm Slide Type Linear Position Sensor Transducer for Electronic Scale
$59.26

Availability: In stock

OR
Description

Details

BWH100 100mm Slide Type Linear Position Sensor Transducer for Electronic Scale

Product Name Linear Position Sensor
Model BWH100
Type Slide Sensor
Measurement Distance 100mm
Resistance 5K Ohm
Linearity +/- 0.05%
Mechanical Travel 107mm
Max Working Speed 10m/s
Current <10uA
Working Temperature -60 to +150C
Rod End Length 152mm/6"
Rod End Hole Dia 6mm/0.24"
Body Size 240 x 38 x 32mm /9.4" x 1.5" x 1.2"(L*W*H)
Screw Dia 4mm / 0.16"
Material Aluminum Alloy,Stainless Steel
Weight 549g
Package 1 x Linear Position Sensor
1 x Rod End
Several Installation Parts
