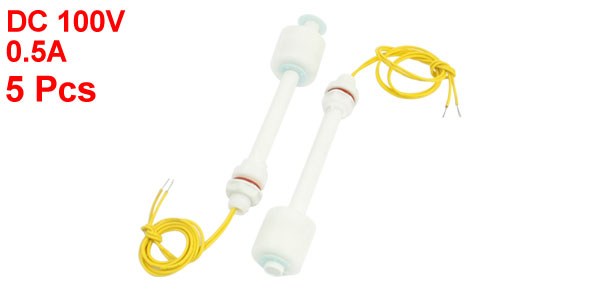

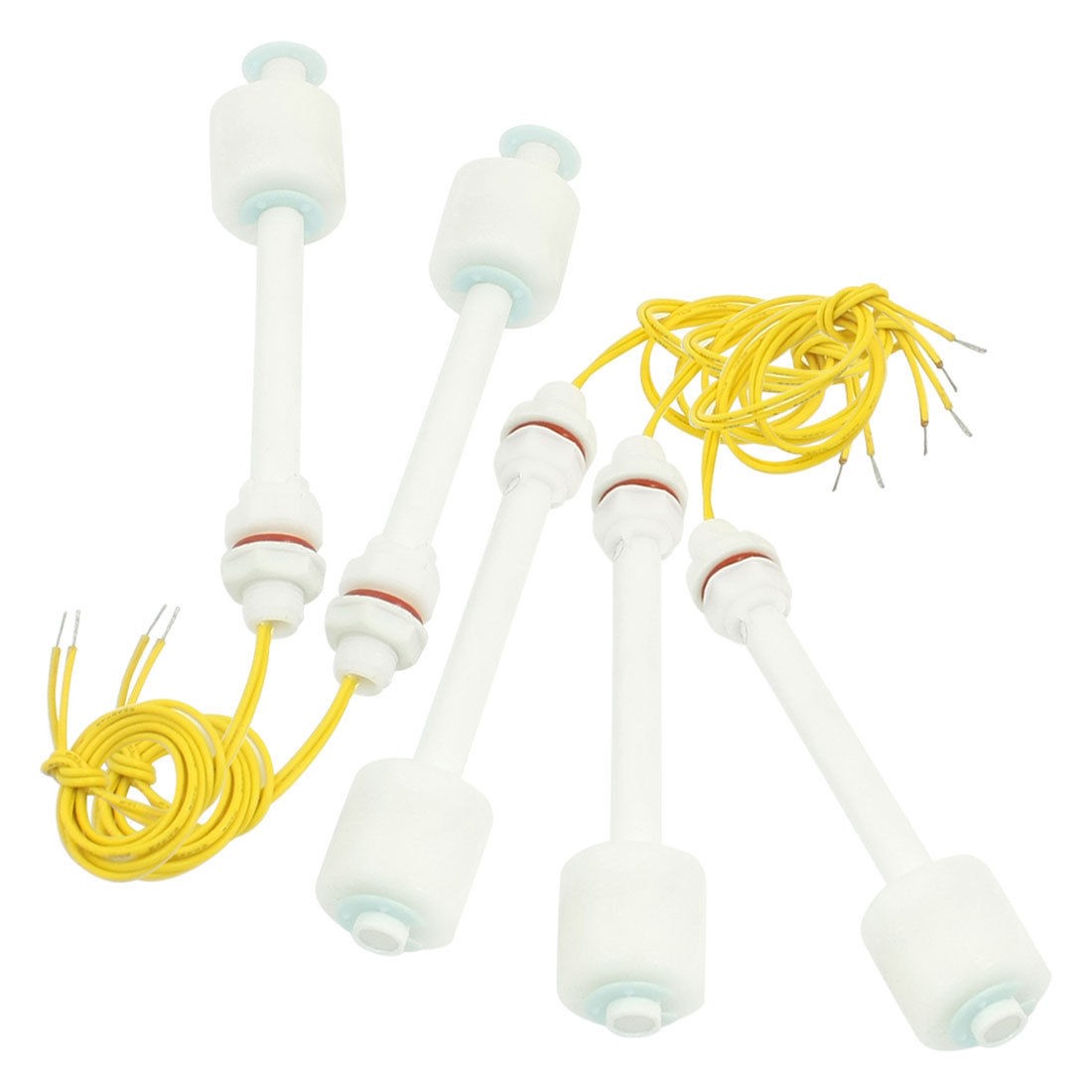

Aquarium Liquid Water Level Sensor Vertical White Plastic Float Switch 5 Pcs

Aquarium Liquid Water Level Sensor Vertical White Plastic Float Switch 5 Pcs

More Views

$16.70

Availability: In stock

Qty:

Description

Product Name	Float Switch
Contacts	NO+NC
Max Contact Rating
Max Contact Rating	10W
Max Switching Voltage	DC 100V
Max Switching Current	0.5A
Max Breakdown Voltage	DC 220V
Max Carry Current	1.0A
Max Contact Resistance	100mΩ
Temperature Rating	-10 ~ +60 °C / 85 °C
Float Ball Material	Plastic
Float Body Material	Plastic
Float Ball Size(Approx)	23 x 21mm / 0.91" x 0.83"(L*D)
Thread Dia(Approx)	10mm / 0.4"
Nut Dia(Approx)	15mm / 0.6"
Bottom Clip Dia(Approx)	15.5mm / 0.62"
Straight Bar Dia	8mm/0.31"
Body Total Length	11.5cm /4.5"
Cable Length	38.5cm /15"
Color	White, Yellow
Net Weight	86g
Package Content	5Pcs x Float Switch Some Fixing Parts
