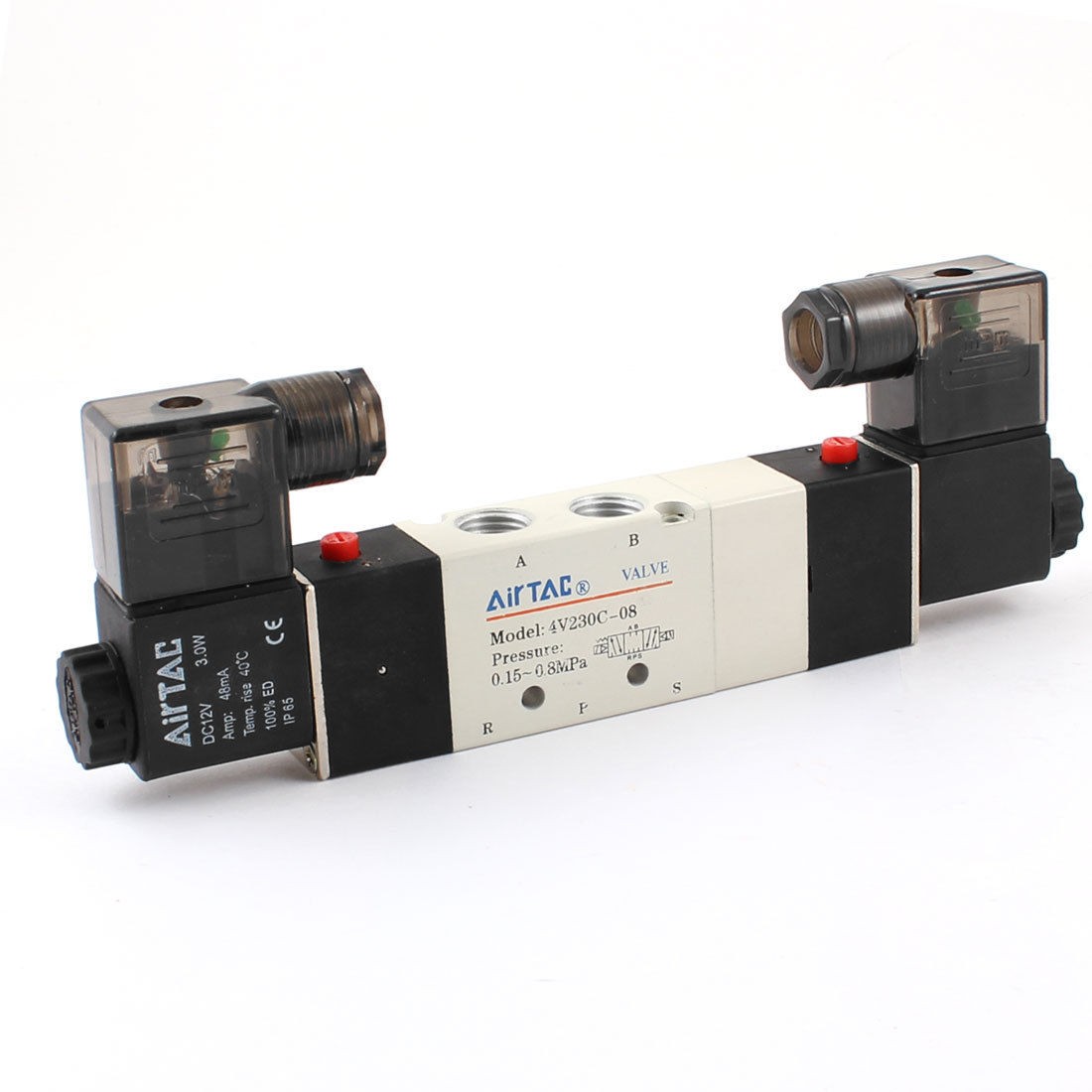

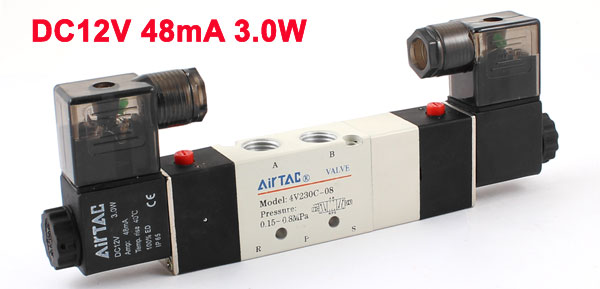

Air Control Two Head Three Position DC12V 48mA 3.0W Close Type Solenoid Valve

Product Name Pneumatic Solenoid Valve
Model 4V230C-08

Working Medium

40 Micron Filtered Air

Motion Pattern

Inner Guide Type
Type 3 Position 5 Way
Material Resin, Plastic
Working Voltage/Current/Power

DC12V, 48mA, 3.0W
Temperature Rise 40°C
Operating Pressure 0.15-0.8MPa
Effective Area 12mm²
Port Connection Air Inlet =Air Outlet=PT 1/4, Exaust =PT 1/8
AirInlet Diameter 1.15cm/ 0.45"
Air Exhaust Diameter 0.85cm/0.335
Black Pull Into Diameter 1.1cm/ 0.43"

Wiring Form

 Direct Lead Wire or Connector
Total Size (Approx.) 19 x 6.5 x 2.2cm / 7.5" x 2.6" x 0.9" (L * W * T)
Color White, Black
Weight 321g
Package Content 1 x  Pneumatic Solenoid Valve
