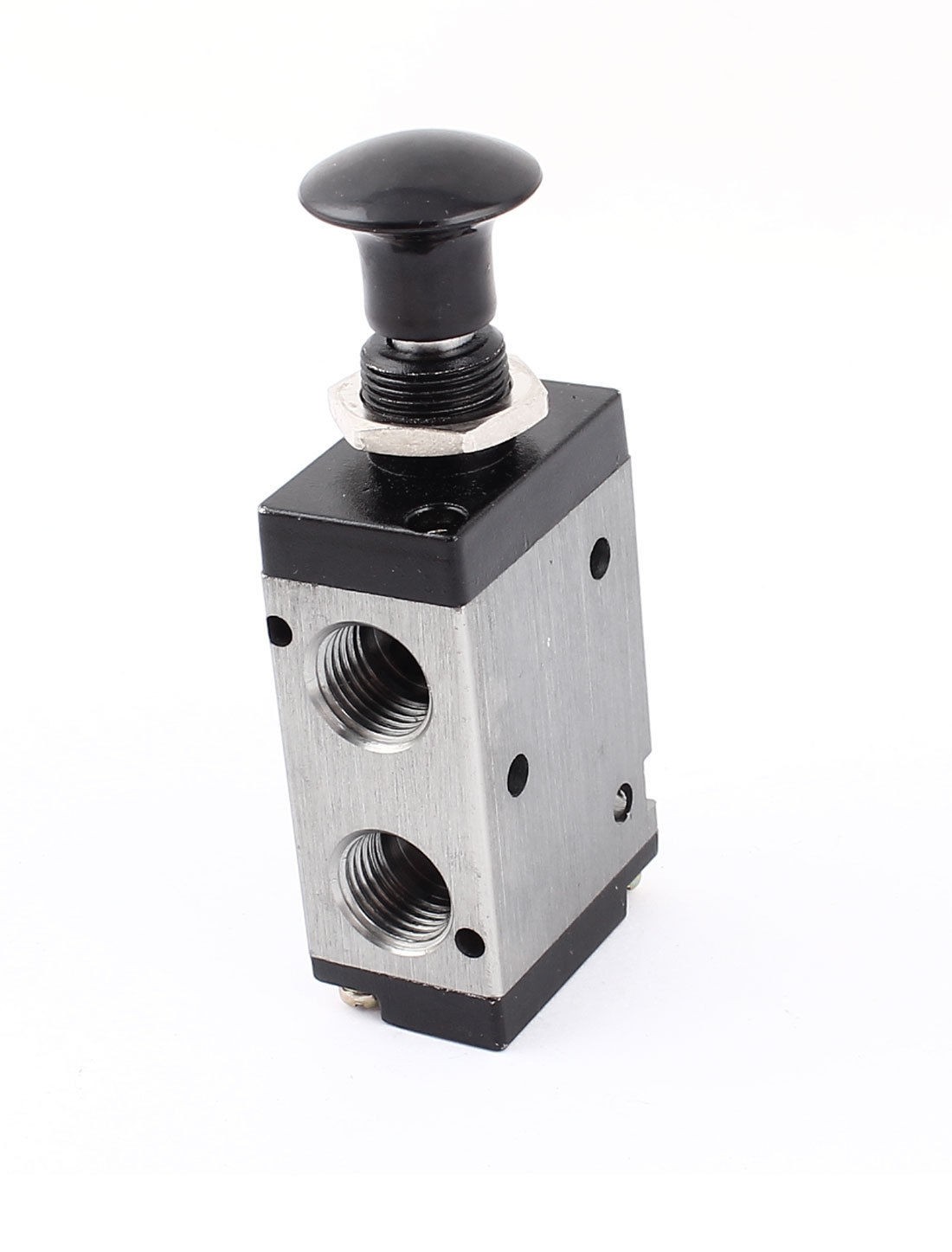

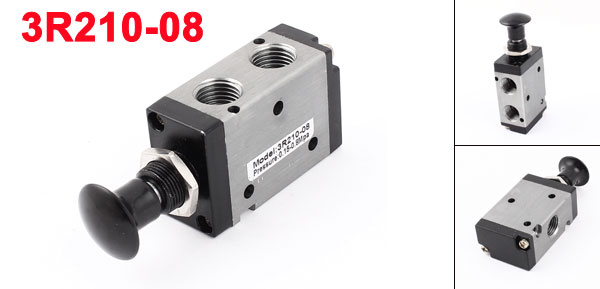

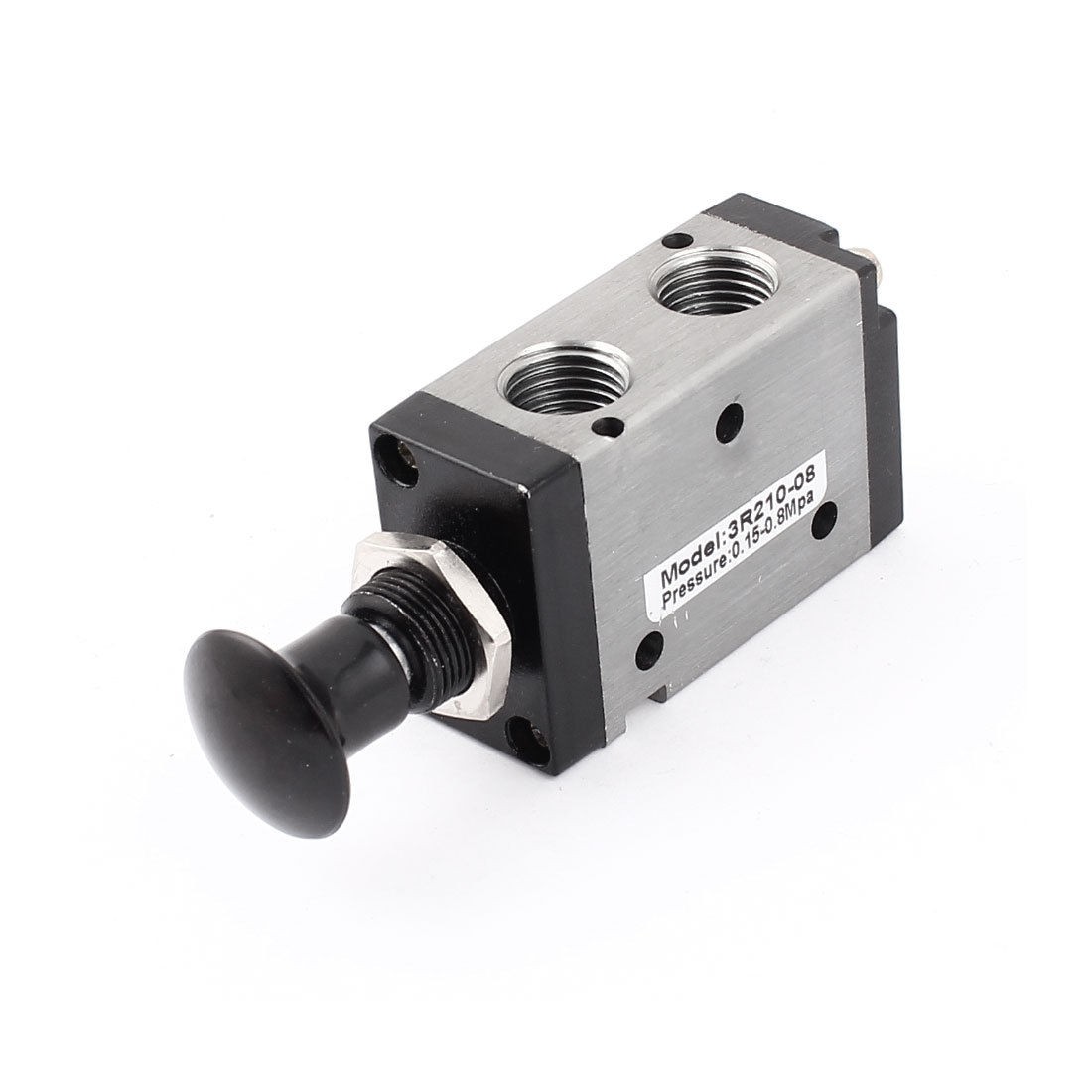

Air Control Pneumatic 3 Port 2 Positions Hand Pull Mechanical Valve 3R210 08

Air Control Pneumatic 3 Port 2 Positions Hand Pull Mechanical Valve 3R210 08

More Views

Air Control Pneumatic 3 Port 2 Positions Hand Pull Mechanical Valve 3R210 08
$18.24

Availability: In stock

OR
Description

Details

Air Control Pneumatic 3 Port 2 Positions Hand Pull Mechanical Valve 3R210-08

Product Name Hand Pull Valve
Model 3R210-08
Operation Type Direct Acting
Control Type External Control
Number of Port 3
Number of Position 2
Port Diameter Air inlet=Air outlet=Exhaust=11.5mm/ 1/4BSP
Lever Handle Diameter 23mm/0.91"
Orifice area 16mm2(CV=0.89)

Operating Temperature Range

0~60 Celsius Degree

Working Pressure Range

0.15 - 0.8Mpa
Total Size(Approx.) 8.6 x 3.5 x 2.2cm/3.4'' x 1.4'' x 0.9'' (L*W*H)
Color Gray, Black
Material Metal
Weight 106g
Package 1 x Hand Pull Valve
