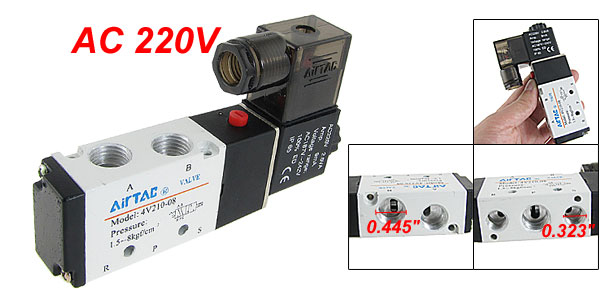

AC220V Single Head 2 Position 5 Port Air Control Solenoid Valve 4V210-08
Product Name Solenoid Valve Model No. 4V210-08 Fluid
40 Micron Filtered Air
Operation Type
Inner Guide Type 2 Position 5 Way Single Head Type Power Consumption AC 220V, 2VA, 9mA Voltage Range AC 187V-242V Frequence 50/60Hz Working Pressure 1.5 - 8 kgf/cm² Joint Bore Size(Approx) Inlet=Outlet=PT1/4 Threaded Port Size(Approx) Outlet A= Outlet B=1.13cm / 0.445"
Inlet P=1.13cm / 0.445"
Exhaust R=Exhaust S=0.82cm/ 0.323"
Hex Connector Inner Dia(Approx) 1.04cm/ 0.409" Overall Size(Approx) 11.8 x 2.2 x 6.5cm/ 4.6" x 0.8" x 2.5" (L*W*H) Color See the Picture External Materila Plastic, Metal Weight 191g Package Content 1 x Solenoid Valve - Reviews
-
