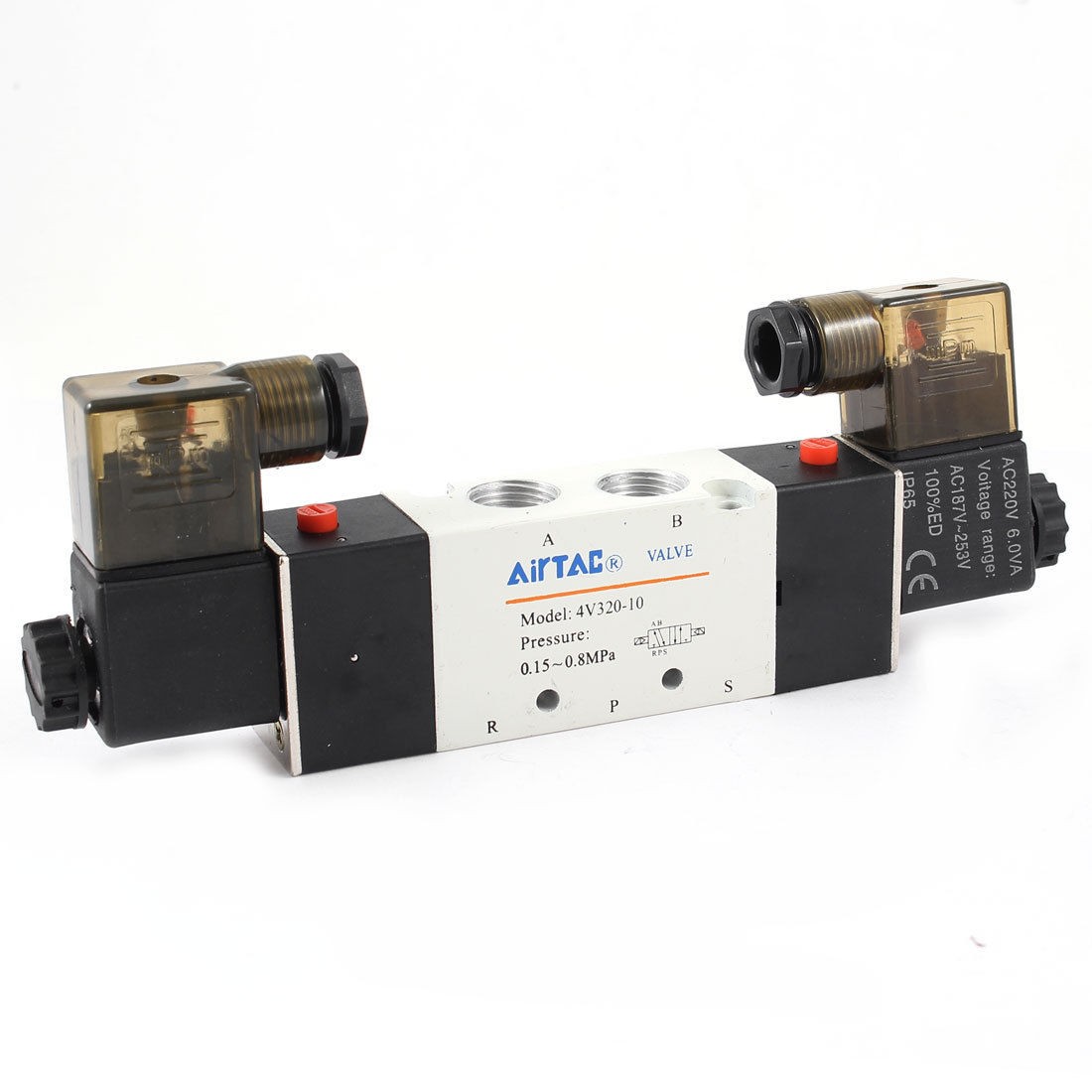

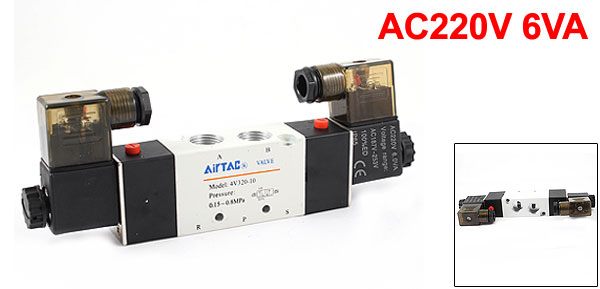

AC220V 6VA 3/8" Inlet 2 Position 5 Way Solenoid Valve 4V320-10

Product Name Solenoid Valve
Model 4V320-10
Type 5 Port 2 Position
Effective sectional Area 30mm2(CV=1.68)
Working Medium 40 Micron Filtered Air
Protection IP65
motion Pattern Inner Guide Type
Material Aluminium Alloyl, Plastic
Voltage
AC220V 6VA
Voitage Range AC187-253V  50Hz/60Hz
Operating Pressure 0.15-0.8mpa (1.5-8kgf/cm2)
Port Inner Dia. Air Inlet=Air Outlet= 14.95mm(3/8"),Exhaust=11.44mm(1/4")
Total Size 19 x7x 3.5cm / 7.8" x 2.4" x1.4"(L*W*T)
Mounted Hole Dia 3mm
Shortest Excitation Time 0.05 Second
Main Color Black
Weight 390g
Package Content 1 x Solenoid Valve
