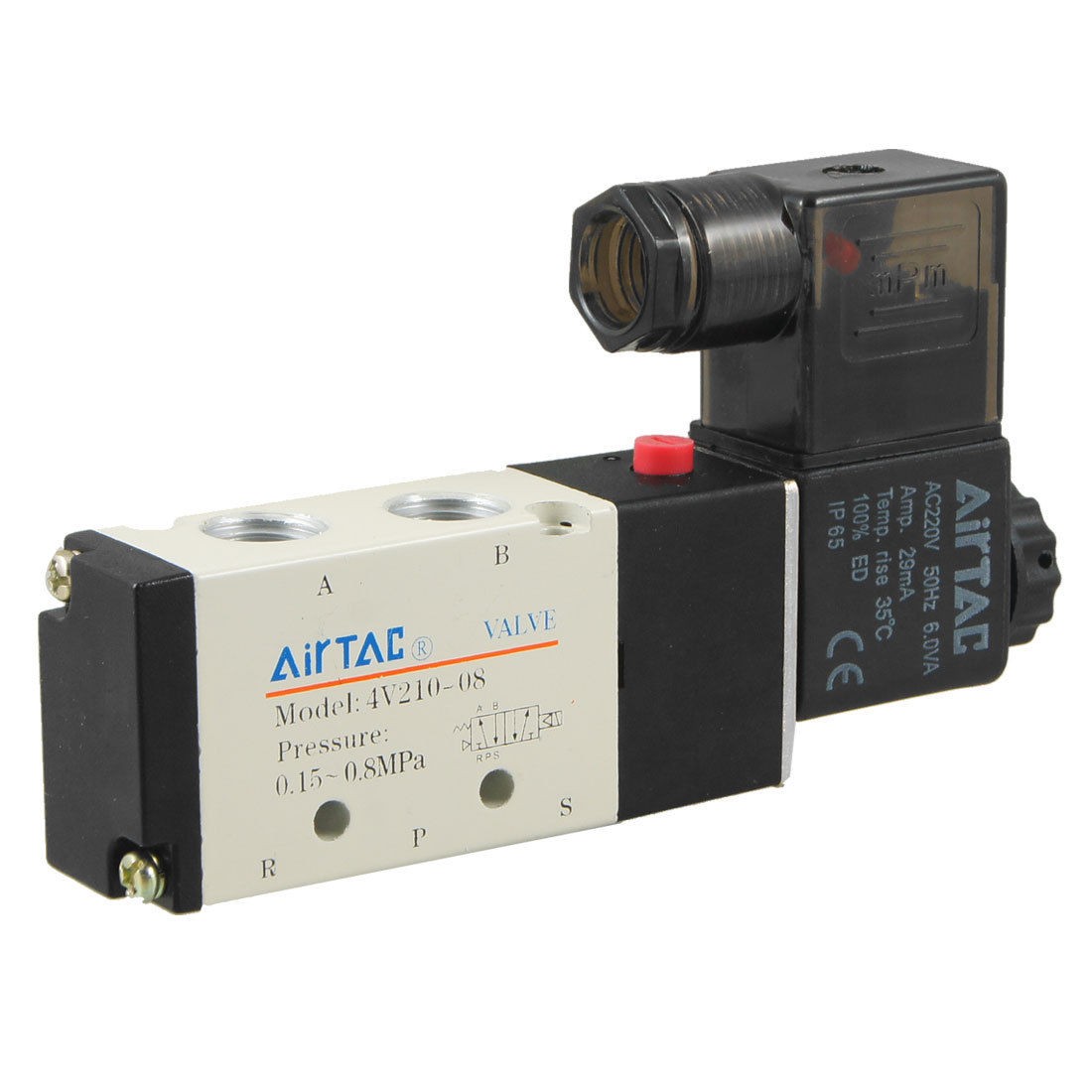

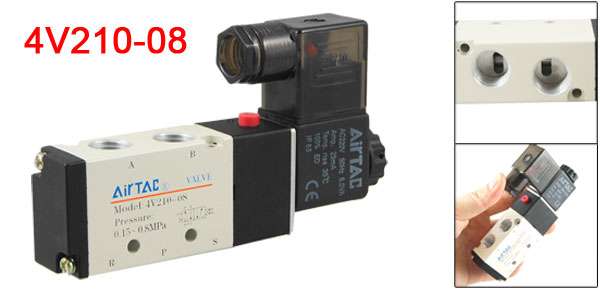

AC220V 29mA 2 Position 5 Port Pneumatic Air Control Solenoid Valve 4V210-08
Product Name Solenoid Valve Model No. 4V210-08 Fluid
40 Micron Filtered Air
Operation Type
Inner Guide Type 2 Position 5 Way Single Head Type Power Consumption AC 220V, 29mA
DC24V, 3W
Frequence 50/60Hz Working Pressure 1.5 - 8 kgf/cm² Joint Bore Size(Approx) Inlet=Outlet=PT1/4 Threaded Port Size(Approx) Outlet A= Outlet B=1.23cm / 0.484"
Inlet P=1.2cm / 0.47"
Exhaust R=Exhaust S=0.9cm / 0.35"
Hex Connector Inner Dia(Approx) 1.3cm / 0.51" Overall Size(Approx) 11.8 x 6.5 x 2.3cm / 4.6" x 2.5" x 0.9" (L*W*H) Color See the Picture External Materila Plastic, Metal Weight 198g Package Content 1 x Solenoid Valve - Reviews
-
