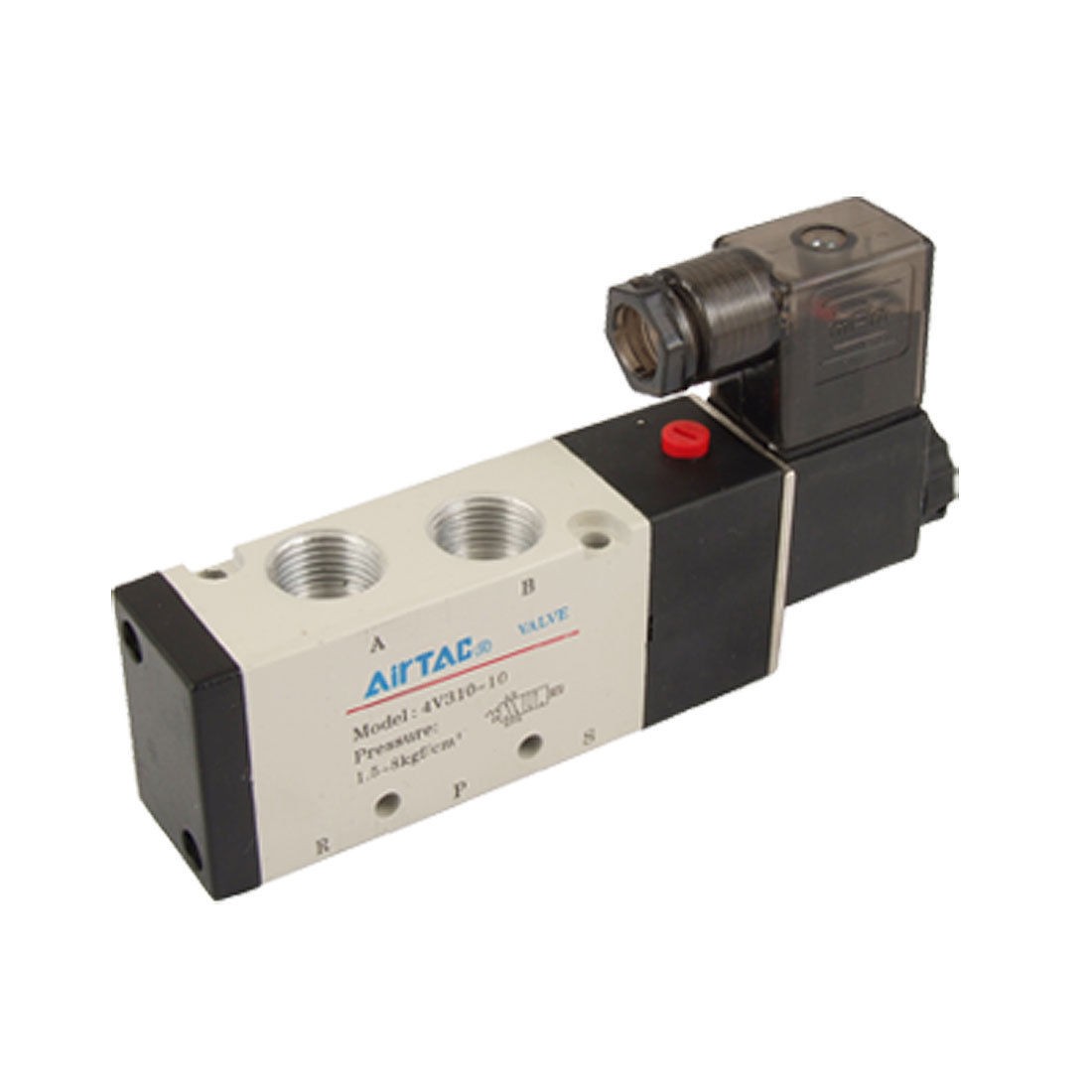

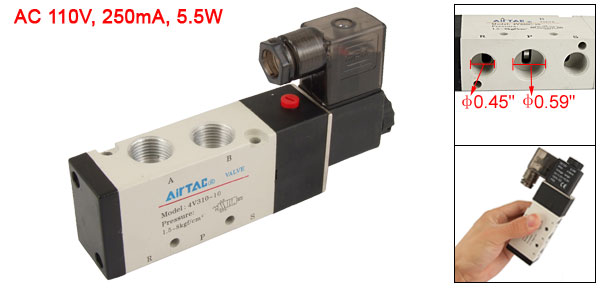

AC110V 4V310-10 Single Head Two Position Solenoid Valve
Product Name Pneumatic Solenoid Valve Model 4V310-10 Working Medium
40 Micron Filtered Air
Motion Pattern
Inner Guide Type
Type 2 Position 5 Way Material Resin, Plastic Working Voltage/Current/Power AC 110V, 250mA, 5.5W
Temperature Rise 35°C Operating Pressure 1.5 ~ 8kgf/cm² Effective Area 30mm² Port Connection Air Inlet =Air Outlet=PT 3/8, Exaust =PT 1/4 AirInlet Diameter 1.5cm/ 0.59" Air Exhaust Diameter 1.15cm/ 0.45" Black Pull Into Diameter 0.95cm/ 0.37" Wiring Form
Direct Lead Wire or Connector Total Size (Approx.) 13.5 x 6.7 x 2.2cm / 5.3" x 2.6" x 0.87" (L * W * T) Color White, Black Weight 287g Package Content 1 x Pneumatic Solenoid Valve - Reviews
-
