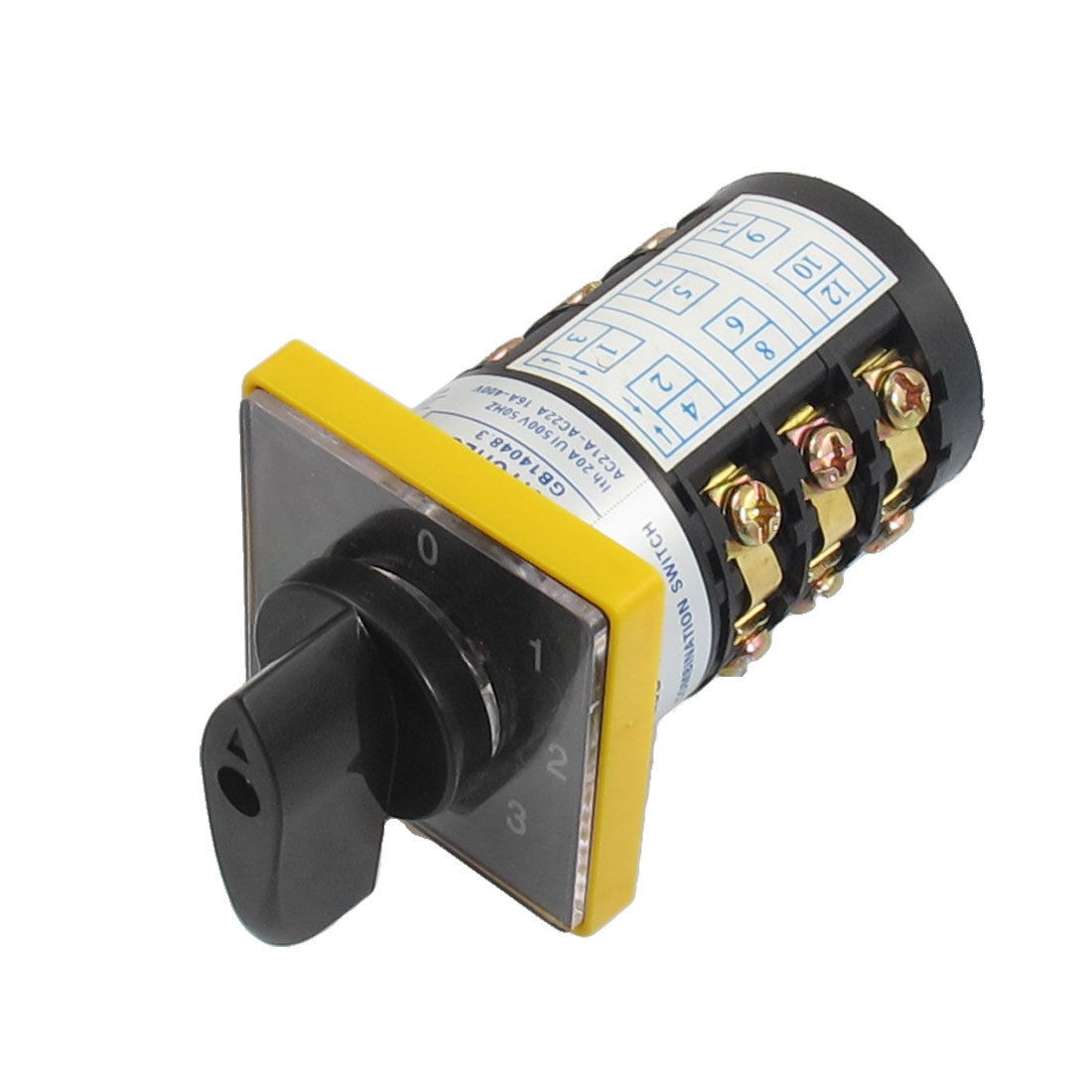

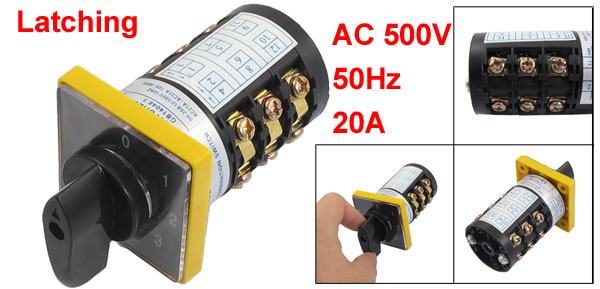

AC 500V 20A Latching 12 Terminals 7 Position Cam Combination Changeover Switch
Product Name Changeover Switch Model No. HZ5B-20/3.0-6 Action Type Latching Ui AC 500V 50Hz Ith 20A AC23A-KW 3ph=4(230V), 3ph=7.5(400V)
1ph=1.1(110V), 1ph=202(230V)
AC3-KW 3ph=3.7(230V), 3ph=5.5(400V)
1ph=0.75(110V), 1ph=1.5(230V)
Positions 7(0-1-2-3-4-5-6) Terminal Number 12 Thread Hole Distance 36mm/ 1.42"(Center to Center) Thread Hole Diameter 4.5mm/ 0.18" Body Diameter 40mm/ 1.57" Overall Size 49x 49 x 95mm / 1.93" x 1.93" x 3.74"(L*W*H) External Material Plastic Net Weight 135g Package Content 1 x Changeover Switch
