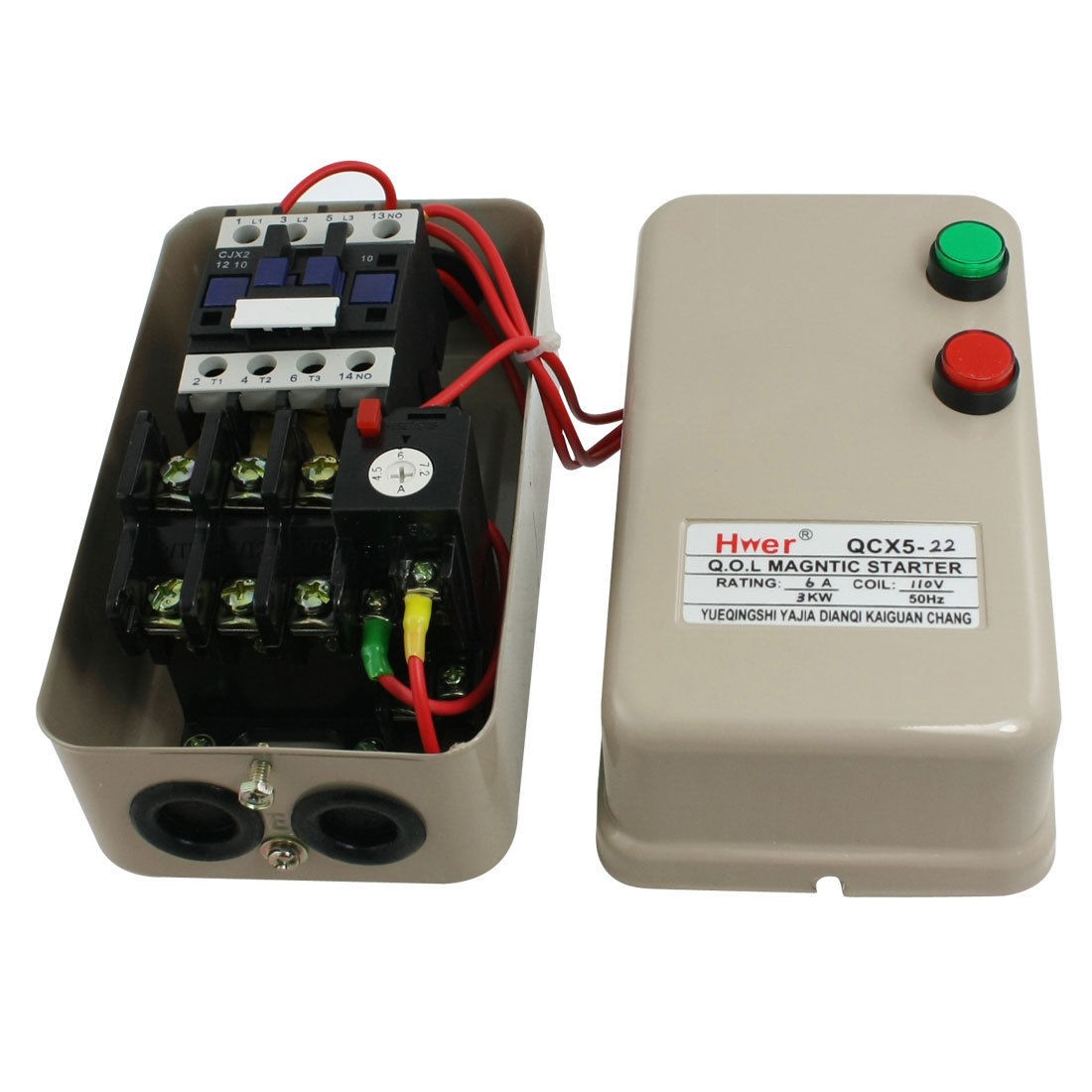

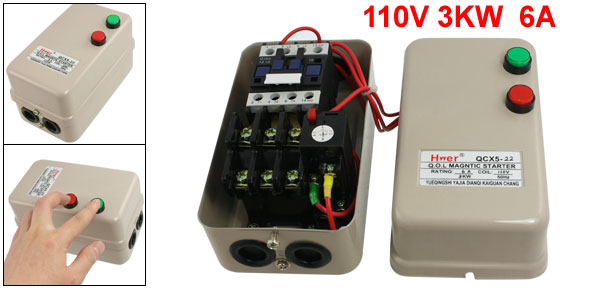

  • AC 110V Coil 3 Phase Magnetic Starter Motor Control 4 HP 4.5-7.2A 3Poles

AC 110V Coil 3 Phase Magnetic Starter Motor Control 4 HP 4.5-7.2A 3Poles

AC 110V Coil 3 Phase Magnetic Starter Motor Control 4 HP 4.5-7.2A 3Poles

More Views

AC 110V Coil 3 Phase Magnetic Starter Motor Control 4 HP 4.5-7.2A 3Poles
$47.51

Availability: In stock

OR
Description

Details

AC 110V Coil 3 Phase Magnetic Starter Motor Control 4 HP 4.5-7.2A 3Poles

Product Name Motor Magnetic Starter
Model QCX5-3KW
Shell Material Metal
Starter Coil:110VAC
Rated Power:3KW / 4 HP

Rated Current:6A
Ie(AC-1):25A
AC Contactor
Ui:660V
Ue 220V 380V 660V
AC-3 Ie 12A 12A 8.9A
Pe 3KW / 4HP 5.5KW / 7.37HP 7.5KW / 10HP
Contact:4 NO, 3 Phase
Setting Current 4.5-7.2A
Control Box Total Size 160 x 92 x 92mm / 6.3" x 3.6" x 3.6" (L * W * H)
Fixing Hole Diameter 5.9mm / 0.23"
Hole Center Distance 140mm / 5.5"
Push Button Diameter 15.4mm / 0.6"
Box Color Gray
Weight 966g
Package Content 1 x Motor Magnetic Starter
