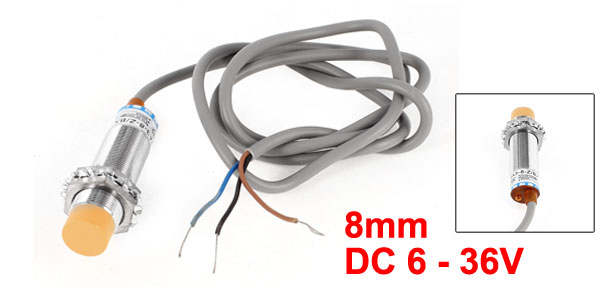

8mm Sensor Distance NPN NO Inductive Proximity Switch DC 6-36V

8mm Sensor Distance NPN NO Inductive Proximity Switch DC 6-36V

More Views

8mm Sensor Distance NPN NO Inductive Proximity Switch DC 6-36V
$10.25

Availability: In stock

OR
Description

Details

8mm Sensor Distance NPN NO Inductive Proximity Switch DC 6-36V

Product Name Proximity Sensor
Model LJ18A3-8-Z/BX
Detecting Distance 8mm ± 10%
Standard Detecting Target 30 x 30 x 1mm
Setting Distance 0 to 7mm
Power Supply DC 6 - 36V
Current Consumption Max. 13mA
Response Frequency 200Hz
Residual Voltage Max. 13V
Control Output 200mA
Insulation Resistance Min. 50M ohm
Dielectric Strength 1000V AC, 50/60Hz for 1 Minute
Ambient Temperature -20C to 60C
Protection IP65
Output Type NPN  NO(Normal Open)
Column Sensor Diameter 16mm/0.63"
Thread Diameter 18mm/0.71"
Cable Length 120.5cm/3.9ft
Weight 87g
Package Content 1 x Proximity Sensor
