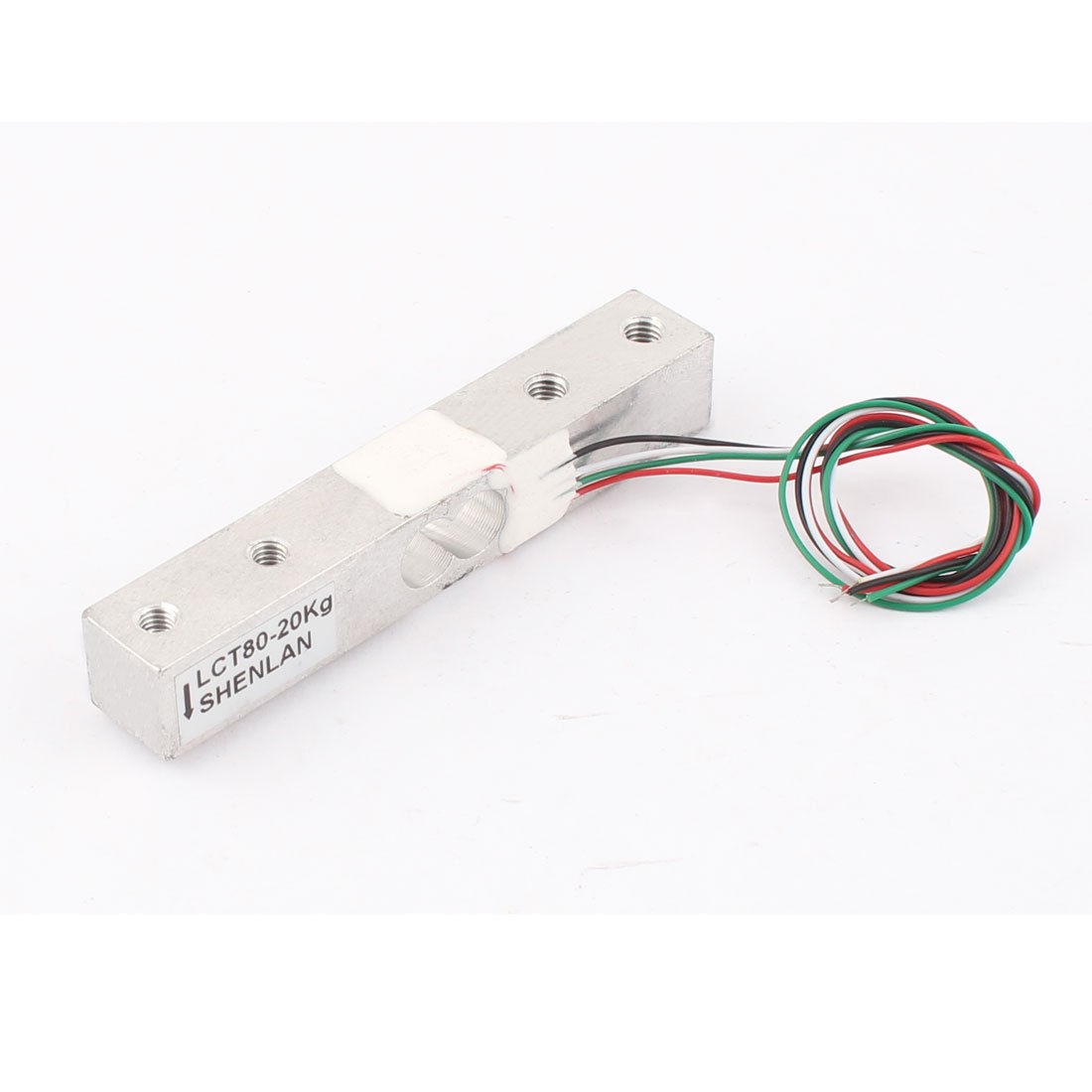

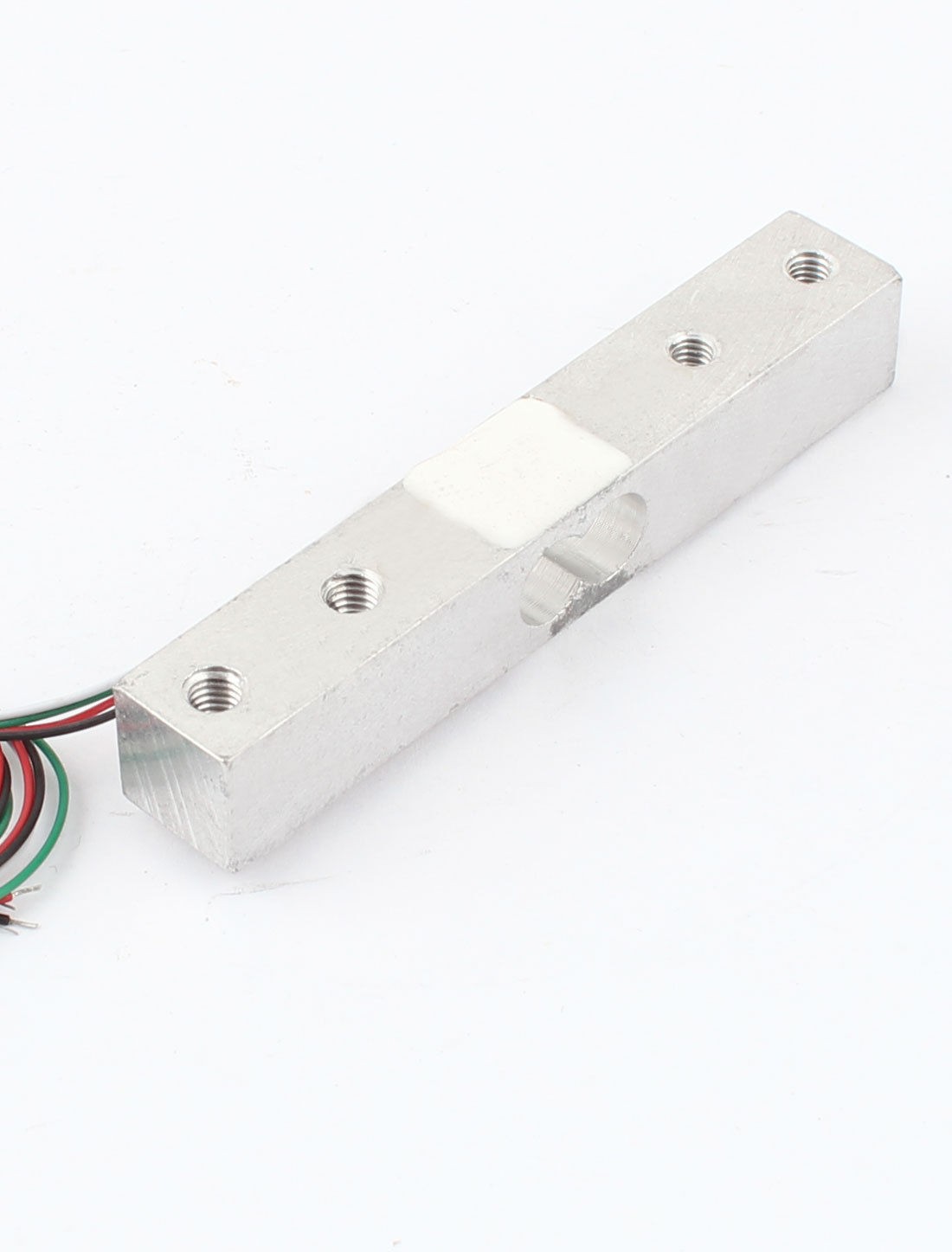

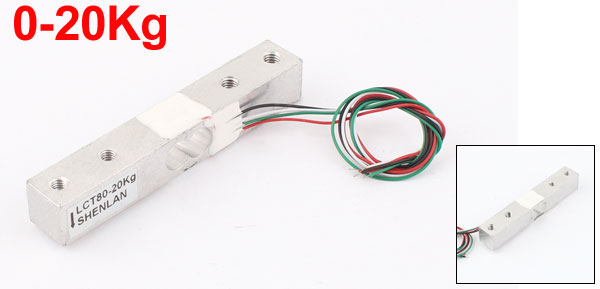

80mmx12.7mmx12.7mm Aluminum 0-20Kg Weighing Load Cell for Electronic Scale
Product Name Weighing Load Cell Rated Load 0-20Kg Ranted Output 1.0 +/-10 %mV/V Non-Linearity 0.02%F.S. Hysteresis 0.02%F.S. Repeatability 0.02%F.S. Zero Balance +/-2%F.S. Temp Effect on Zero 0.025%F.S./10C Temp Effect on Zero Output 0.025%F.S./10C Creep (30min) 0.03%F.S. Input Impedance 410+/-30 Ohm Output Impedance 350+/-3 Ohm Insulation > 2000 Megohm / 50V DC Compensated Temperature Range -10C~40C Operating Temperature Range -20C~60C Safe Overload 150%F.S. Ultimate Overload 300%F.S. Input End Red+, Black- Output End Blue+, White- Recommended Excitation 10V Maximum Excitation 15V Load Cell Size 80 x 12.7 x 12.7mm / 3.1" x 0.5" x 0.3" (L*W*T) Thead Hole Diameter 4mm Center Hole Size 15 x 8mm (L*Max.W) Cable Length 20cm / 7.9" Main Color Silver Tone Material Aluminum Weight 33g Package Content 1 x Weighing Load Cell - Reviews
-
