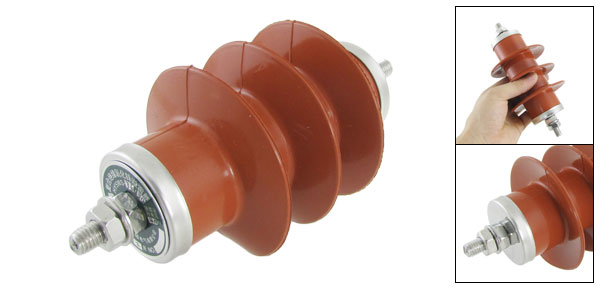

7.6KV High Voltage Zinc Oxide Distribution Type Lightning Arrester

More Views

$24.25

Availability: In stock

Qty:

Description

Product Name	Distribution Type Lightning Arrester
Model No.	HY5WS-7.6/30
Sys R.V	6KV
MOA R.V	7.6KV
MCOV	4.0KV
D.C.U1mA	15.0(>=KV)
1/10us Steep Current Impulse	34.5(<=KV)
8/20us Lightning Current Impulse	30(<=KV)
30/60us Switching Current Impulse	25.5(<=KV)
2ms Rectangular Current Impulse Withstand	75A
4/10us High Current Impulse Withstand	40KA
Material	Silicon Rubber Housing, Zinc Oxide, Metal
Thread Diameter	9.6mm / 0.38"
Overall Size(Approx.)	184 x 86mm / 7.2" x 3.4"(L*Diameter)
Weight	559g
Package Content	1 x Distribution Type Lightning Arrester
