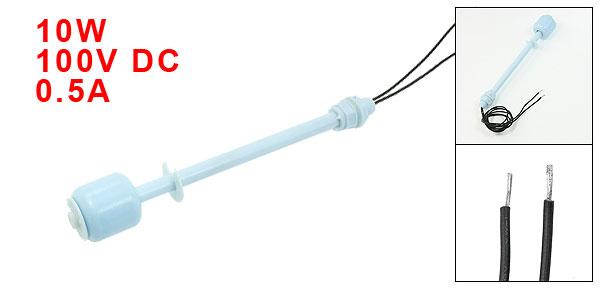

  • 6.7" Long Single Ball Liquid Vertical Water Level Sensor Float Switch Blue

6.7" Long Single Ball Liquid Vertical Water Level Sensor Float Switch Blue

6.7" Long Single Ball Liquid Vertical Water Level Sensor Float Switch Blue

More Views

6.7" Long Single Ball Liquid Vertical Water Level Sensor Float Switch Blue
$9.49

Availability: In stock

OR
Description

Details

6.7" Long Single Ball Liquid Vertical Water Level Sensor Float Switch Blue

Product Name Float Switch
Contacts NO+NC
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +60 °C / 85 °C
Float Ball Material PP
Float Body Material PP
Float Ball Size(Approx) 25 x 26mm / 1" x 1.1"(L*D)
Thread Dia(Approx) 9.7mm / 0.37"
Nut Dia(Approx) 14mm / 0.55"
Bottom Clip Dia(Approx) 21mm / 0.85"
Body Total Length 17cm / 6.7"
Cable Length 40cm / 10.8"
Color Blue
Net Weight 24g
Package Content 1 x Float Switch
