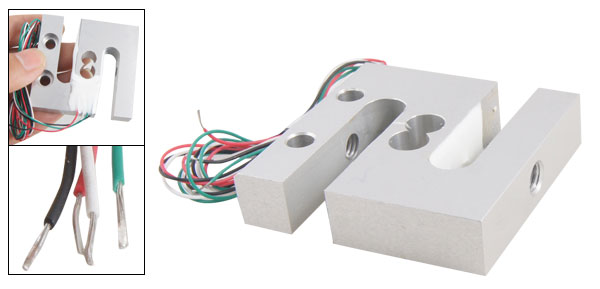

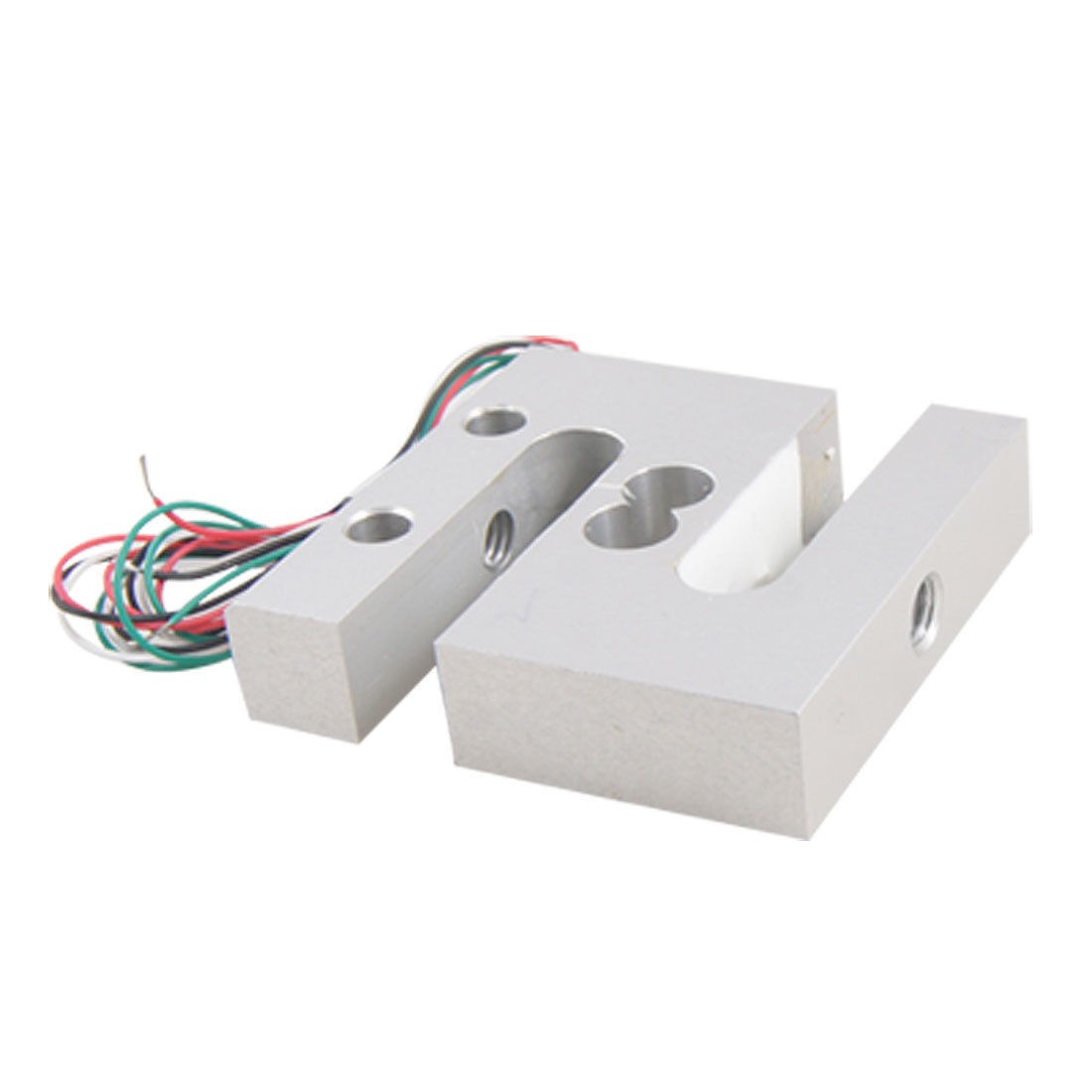

60Kg Capacity Electronic Scale Weighing Sensor S Type Load Cell
Product Name S Type Load Cell Rated Load 60Kg Rated Output 2mV/V Linearity ≤0.03%F.S Hysteresis ≤0.03%F.S Repeatability ≤0.02%F.S Zero Balance ±2%F.S Temp Effect on Zero ≤0.03%F.S./ 10°C Temp Effect on Zero Output ≤0.03%F.S./ 10°C Creep (30min) ≤0.03%F.S./ 30 min Crner Error ±1uV Input Impedance 410±10Ω Output Impedance 350±3Ω Insulation >5000MΩ/50V DC Compensated Temperature Range -20°C~60°C Operating Temperature Range -10°C~40°C Safe Overload 150%F.S. Ultimate Overload 200%F.S Input End Red+, Black- Output End Green+, White- Test Insrtument E2000 Force Testing Equipment Actual Load Excitation Voltage 5-10V DC Total Size 52 x 50 x 12mm/2.05'' x 2'' x 0.47'' (L*W*T) Thead Hole Diameter 5mm/0.2'' Center Hole Size 15 x 8mm/0.59'' x 0.31'' (L*W) Cable Length 490mm/19.3'' Material Alloy Steel Color Silver Tone Weight 61g Package Content 1 x S Type Load Cell - Reviews
-
