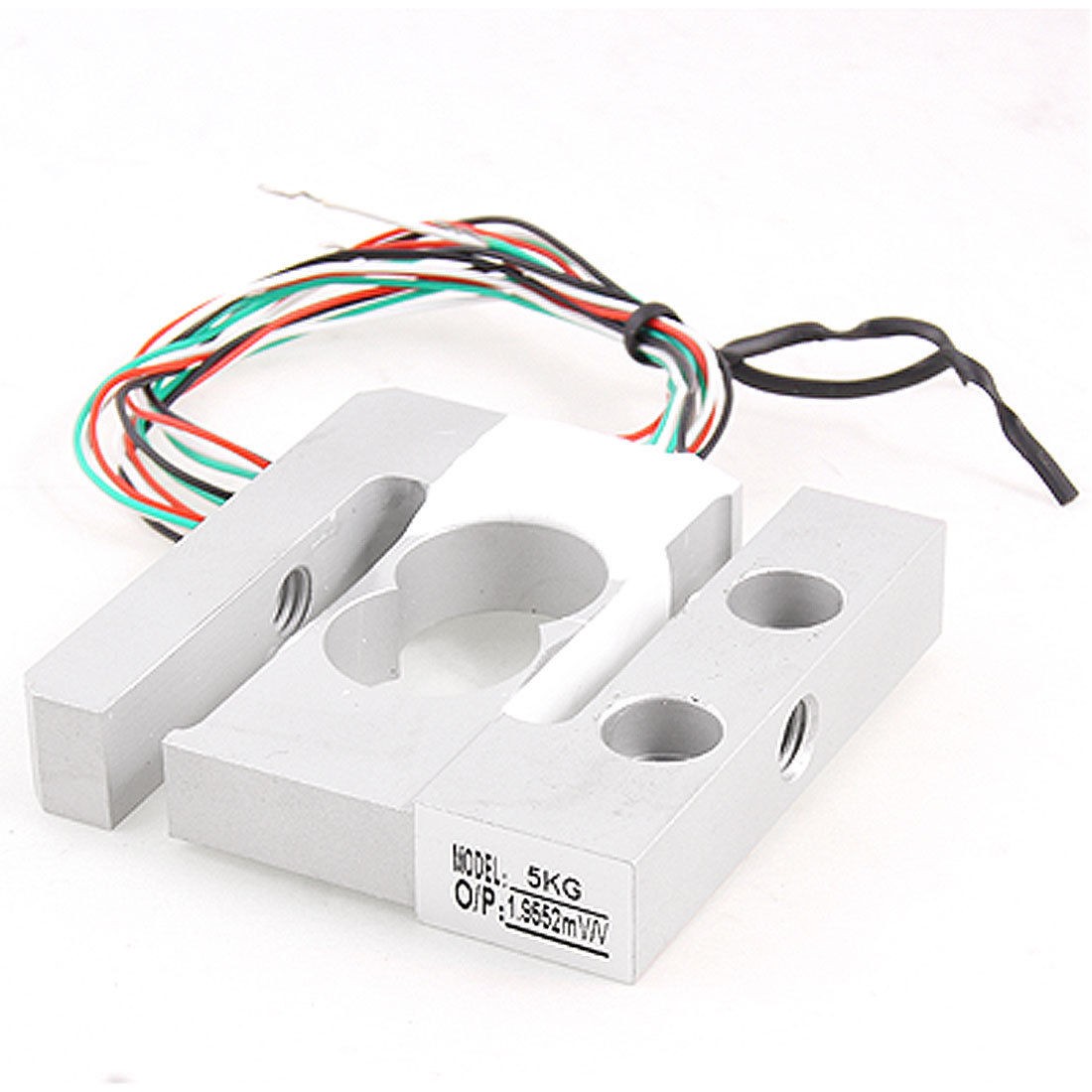

5Kg Rated Load Hanging Crane Scale Alloy Steel S Type Load Cell
Product Name S Type Load Cell Rated Load 5Kg Rated Output 1.9552mV/V Linearity ≤0.03%F.S Hysteresis ≤0.03%F.S Repeatability ≤0.02%F.S Zero Balance ±2%F.S Temp Effect on Zero ≤0.03%F.S./ 10°C Temp Effect on Zero Output ≤0.03%F.S./ 10°C Creep (30min) ≤0.03%F.S./ 30 min Crner Error ±1uV Input Impedance 410±10Ω Output Impedance 350±3Ω Insulation >5000MΩ/50V DC Compensated Temperature Range -20°C~60°C Operating Temperature Range -10°C~40°C Safe Overload 150%F.S. Ultimate Overload 200%F.S Input End Red+, Black- Output End Green+, White- Test Insrtument E2000 Force Testing Equipment Actual Load Excitation Voltage 5-10V DC Total Size 52 x 50 x 10mm/2.05'' x 2'' x 0.39'' (L*W*T) Thead Hole Diameter 5mm/0.2'' Center Hole Size 25 x 15mm/1'' x 0.59''(L*W) Cable Length 490mm/19.3'' Material Alloy Steel Color Silver Tone Weight 46g Package Content 1 x S Type Load Cell - Reviews
-
