  • 4V310 15 1 2" PT 2 Position 5 Port Solenoid Valve AC 220V 24mA

4V310 15 1 2" PT 2 Position 5 Port Solenoid Valve AC 220V 24mA

4V310 15 1 2" PT 2 Position 5 Port Solenoid Valve AC 220V 24mA

More Views

4V310 15 1 2" PT 2 Position 5 Port Solenoid Valve AC 220V 24mA
$31.67

Availability: In stock

OR
Description

Details

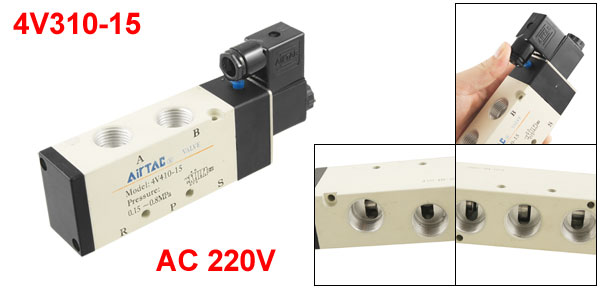

4V310-15 1/2" PT 2 Position 5 Port Solenoid Valve AC 220V 24mA

Product Name Pneumatic Solenoid Valve
Model 4V310-15
Type Inner Guide Type
Port Position 2 Position 5 Way
Working Medium Air(40 Micron Filtered Air)
Power AC 220V 5.0VA
Current 24mA
Voltage Range AC 176V - 242V
ED 100%
Port Thread Diameter Air Inlet =Air Outlet=Exaust=20mm
Pipe Connection Air Inlet =Air Outlet=Exaust =PT 1/2
Fixing Hole Diameter 4.3mm
Pressure 0.15 - 0.8MPa / 1.5-8Kgf/cm² / 21 - 114psi
Operating Temperature -5°C - 60°C
Total Size 166 x 75 x 33mm / 6.5" x 2.9" x 1.3" (L * W * T)
External Material Metal, Plastic
Color Black, Off White
Net Weight 497g
Package Content 1 x Pneumatic Solenoid Valve
