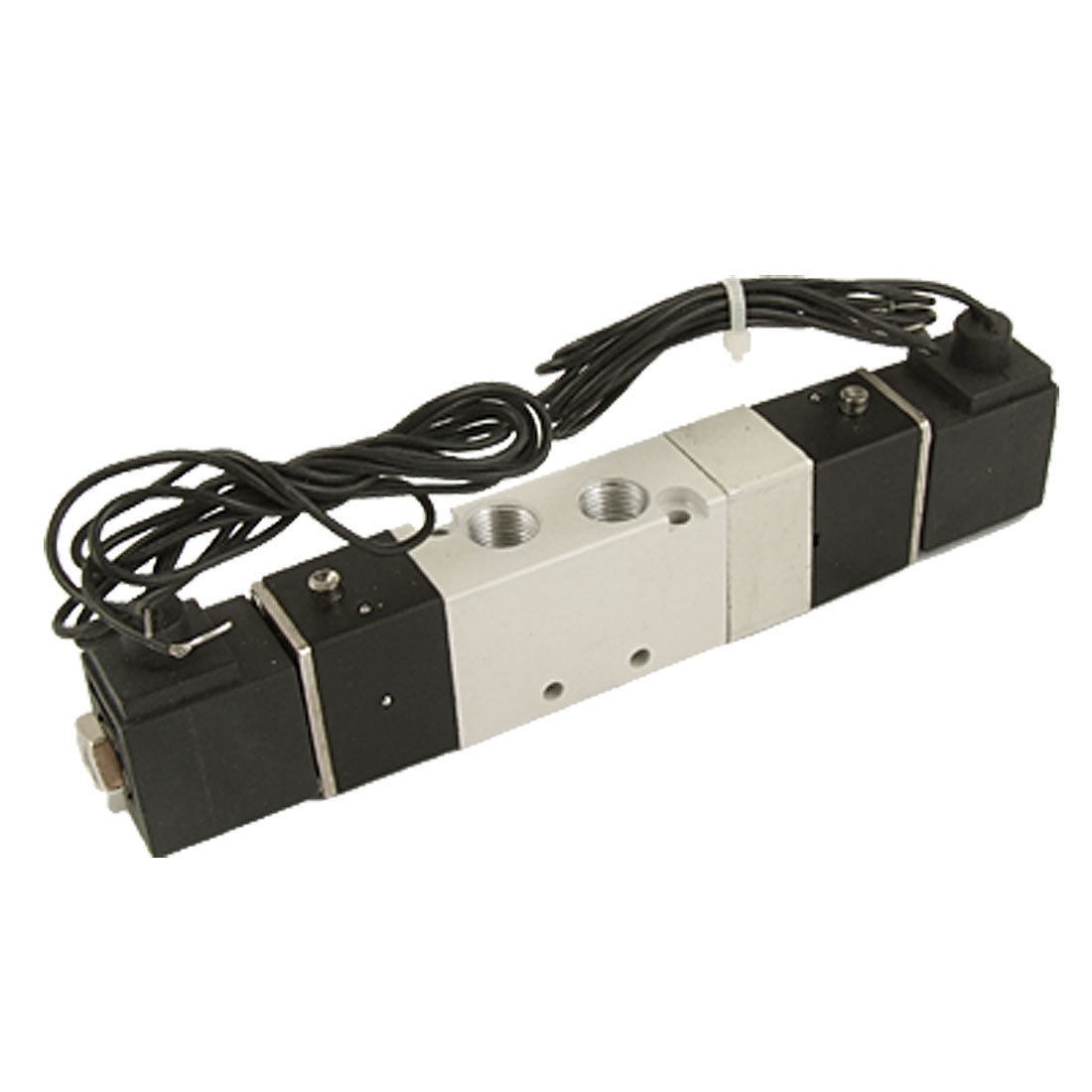

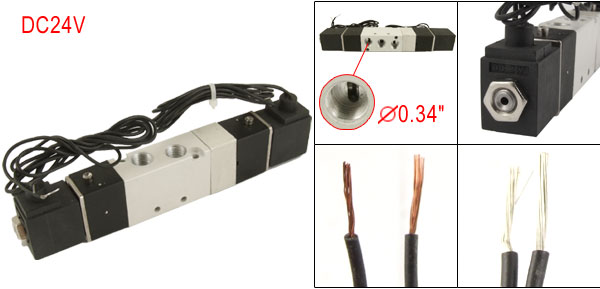

4V130C 06 DC24V Double Head Close Type Solenoid Valve

More Views

$31.78

Availability: In stock

Qty:

Description

Product Name	Pneumatic Solenoid Valve
Model	4V130C-06
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Type	3 Position 5 Way
Material	Resin, Plastic
Working Voltage/Power	DC24V, 2.5W
Temperature	Rise 35°C
Operating Pressure	1.5 ~ 8kgf/cm²
Effective Area	9mm²
Port Connection	Air Inlet =Air Outlet=Exaust =PT 1/8
Air Inlet/ Exaust Diameter	0.87cm/ 0.34"
Cable Length	42cm/ 16.5"
Wiring Form	Direct Lead Wire or Connector
Total Size (Approx.)	15 x 3.3 x 1.8cm / 5.9" x 1.3" x 0.7" (L * W * T)
Color	White, Black
Weight	183g
Package Content	1 x Pneumatic Solenoid Valve
