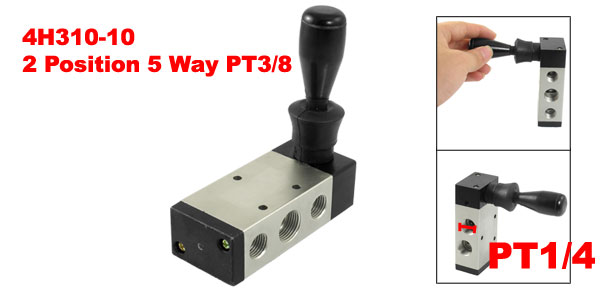

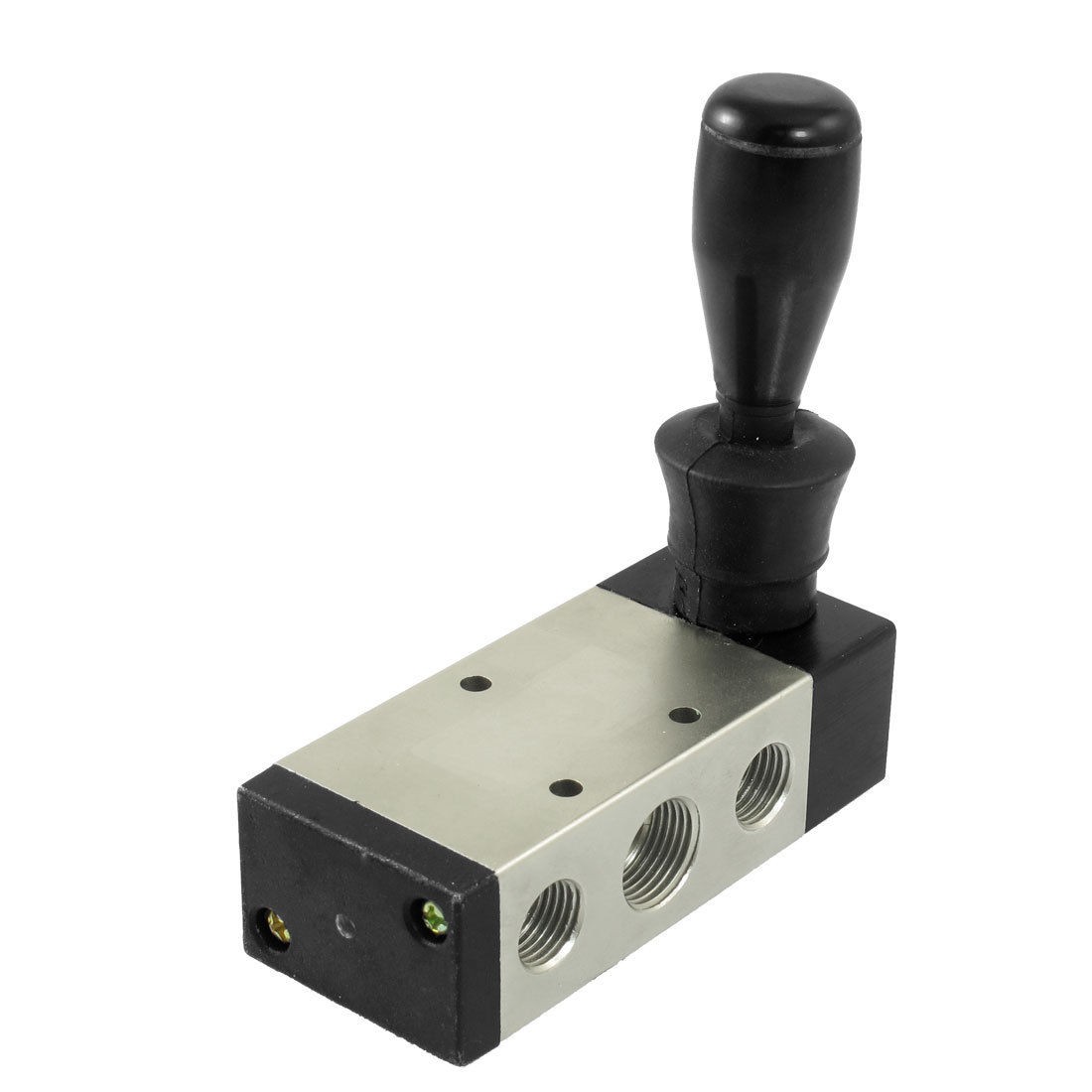

4H310-10 2 Position 5 Way PT 3/8" Port Hand Pull Pneumatic Mechanical Valve

Product Name Hand Pull Mechanical Valve
Model 4H310-10
Button Type Rod
Operation Type Direct Acting
Control Type External Control
Operating Pressure 1.5~8 kgf/cm2
Number of Port 5
Number of Position 2
Port Diameter Air inlet=Air outlet=PT3/8", Exhaust=PT1/4"
Effective area 30mm2(CV=0.89)
Handle Size 45 x 23mm/1.77" x 0.91"(H*Dia)
Working Medium 40 Micron Filtered Air

Operating Temperature Range

5~50 Celsius Degree
Total Size(Approx.) 9.3 x 4 x 10.4cm/3.66" x 1.57" x 4.09 (L*W*H)
Color Black
Material Metal, Plastic
Weight 258g
Package 1 x Hand Pull Mechanical Valve
