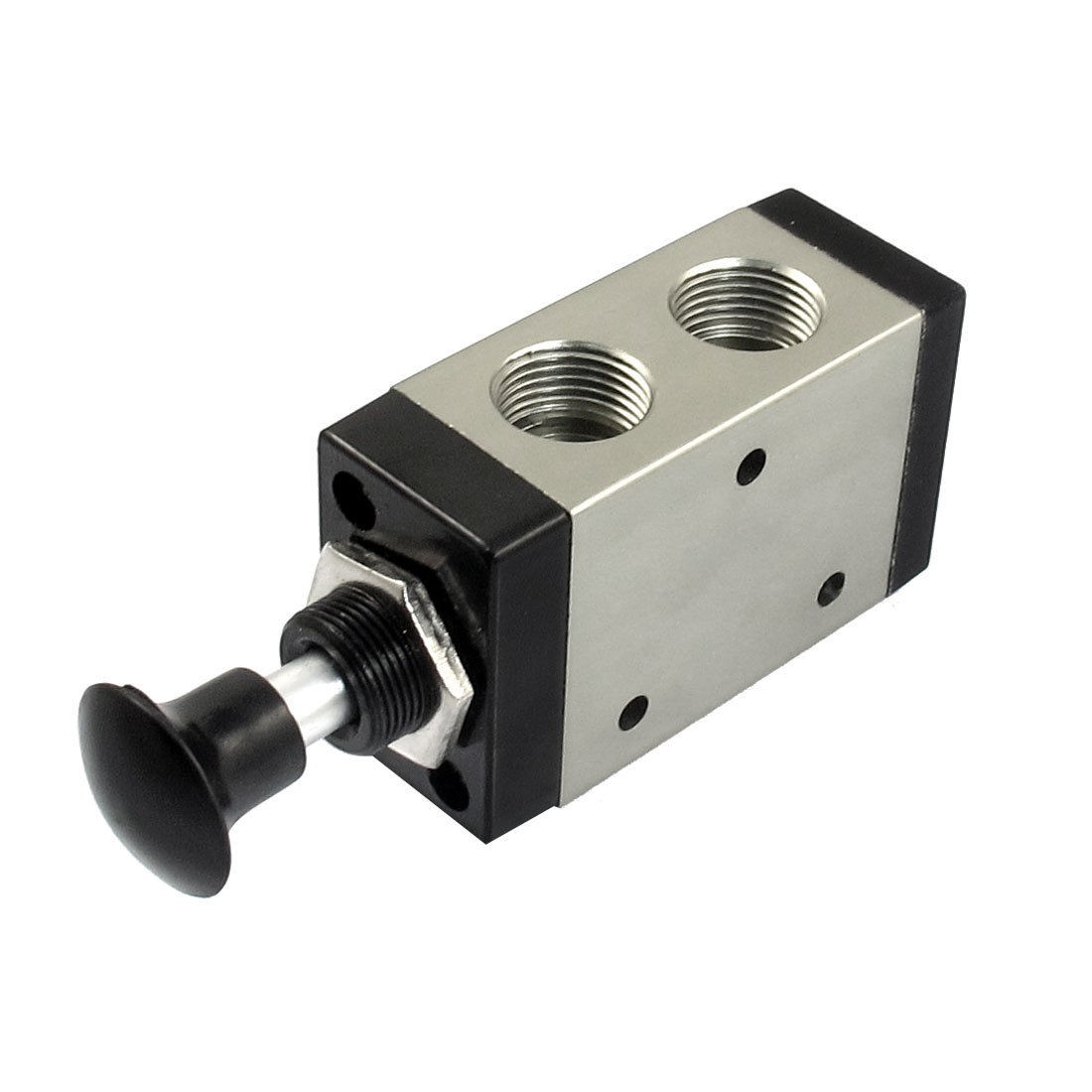

3R310-10 3 Position 2 Way PT 3/8" Port Hand Push Pull Mechanical Valve

Product Name Hand Push Pull Mechanical Valve
Model 3R310-10
Button Type Rod
Operation Type Direct Acting
Control Type External Control
Number of Port 2
Number of Position 3

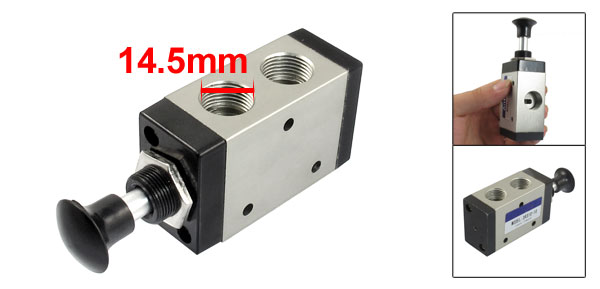

Port Diameter Air inlet=Air outlet=Exhaust=14.5mm/0.57
Joint Pipe Size PT 3/8"
Lever Handle Diameter 23mm/0.91"
Effective area 30mm2(CV=0.89)
Working Medium 40 Micron Filtered Air

Operating Temperature Range

0~60 Celsius Degree

Working Pressure Range

0 - 0.8Mpa
Total Size(Approx.) 10.2 x 4 x 2.7cm/4'' x 1.57'' x 1.06'' (L*W*H)
Color Black
Material Metal
Weight 196g
Package 1 x Hand Push Pull Mechanical Valve
