  • 3R310 10 2 Position 5 Way G3 8" Hand Push Pull Mechanical Valve MMPPW

3R310 10 2 Position 5 Way G3 8" Hand Push Pull Mechanical Valve MMPPW

3R310 10 2 Position 5 Way G3 8" Hand Push Pull Mechanical Valve MMPPW

More Views

3R310 10 2 Position 5 Way G3 8" Hand Push Pull Mechanical Valve MMPPW
$14.64

Availability: In stock

OR
Description

Details

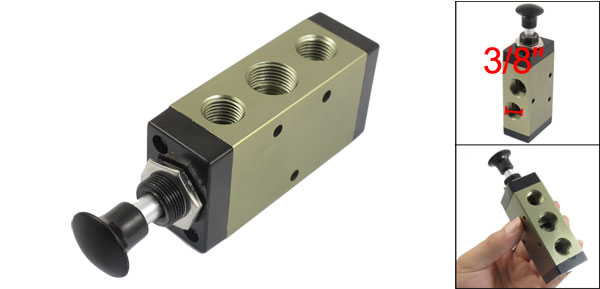

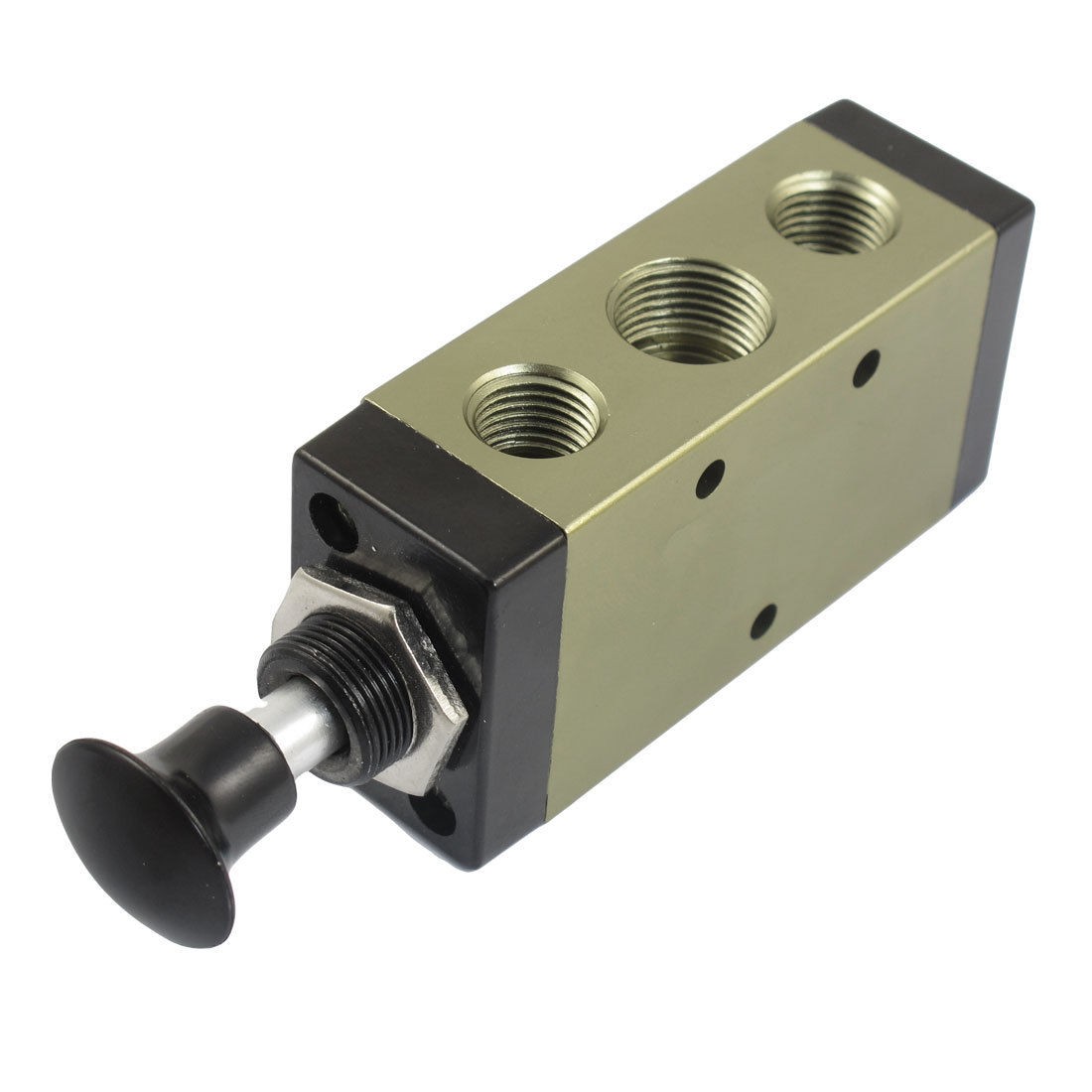

3R310-10 2 Position 5 Way G3/8" Hand Push Pull Mechanical Valve Mmppw

Product Name Hand Push Pull Mechanical Valve
Model 4R310-10
Button Type Rod
Operation Type Direct Acting
Control Type External Control
Number of Port 5
Number of Position 2
Port Size Air inlet=Air outlet=G3/8" Exhaust=G1/4"
Lever Handle Diameter
 23mm/0.91"
Effective area 30mm2(CV=0.89)
Working Medium 40 Micron Filtered Air

Operating Temperature Range

0~60 Celsius Degree

Working Pressure Range

0 - 0.8Mpa
Total Size(Approx.) 10.2 x 4 x 2.7cm/4'' x 1.57'' x 1.06'' (L*W*H)
Color Gray
Material Metal
Weight 169g
Package 1 x Hand Push Pull Mechanical Valve
