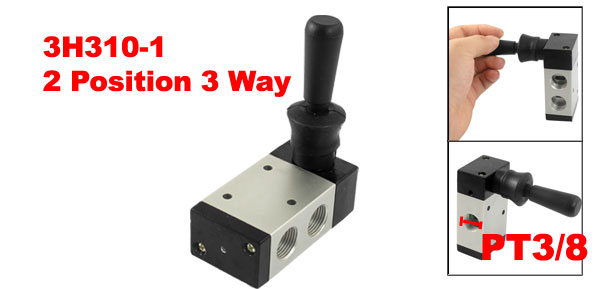

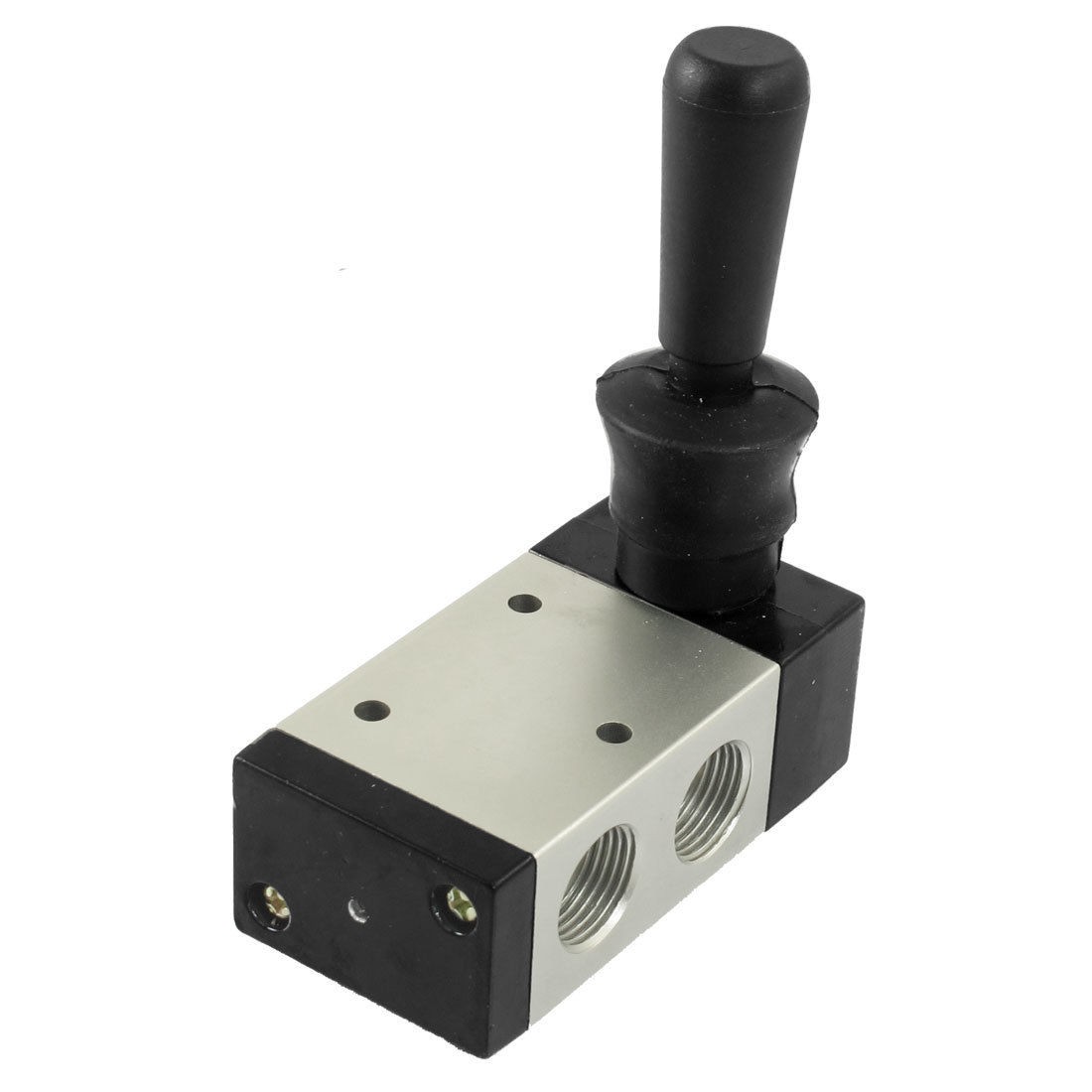

3H310-10 2 Position 3 Way PT3/8" Port Handle Hand Pull Mechanical Valve

Product Name Hand Pull Mechanical Valve
Model 3H310-10
Button Type Rod
Operation Type Direct Acting
Control Type External Control
Operating Pressure 1.5~8 kgf/cm2
Number of Port 3
Number of Position 2
Port Diameter Air inlet=Air outlet=Exhaust=PT3/8"
Effective area 30mm2(CV=0.89)
Handle Size 39 x 18mm/1.54" x 0.71"(H*Dia)
Working Medium 40 Micron Filtered Air

Operating Temperature Range

5~50 Celsius Degree
Total Size(Approx.) 7.8 x 4 x 9.9cm/3.07'' x 1.57'' x 3.9'' (L*W*H)
Color Black
Material Metal, Plastic
Weight 204g
Package 1 x Hand Pull Mechanical Valve
