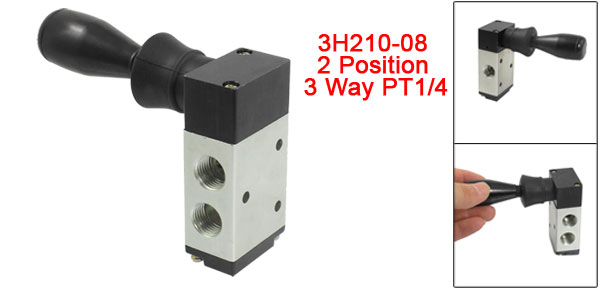

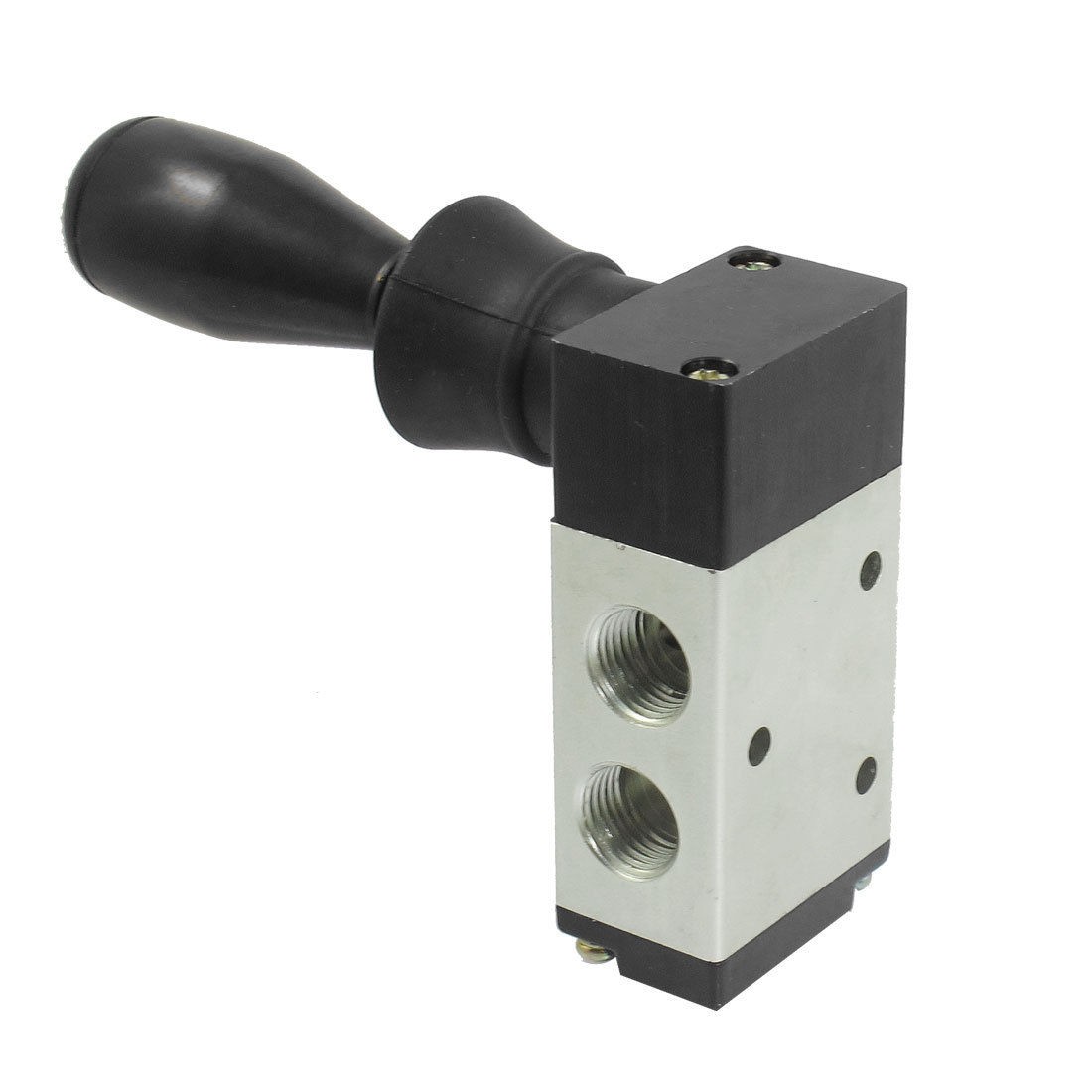

3H210-08 2 Position 3 Way PT1/4" Port Hand Pull Mechanical Valve

Product Name Hand Pull Mechanical Valve
Model 3H210-08
Button Type Rod
Operation Type Direct Acting
Control Type External Control
Operating Pressure 1.5 ~ 8 kgf/cm2
Number of Port 3
Number of Position 2
Port Diameter Air inlet=Air outlet=Exhaust=PT1/4"
Effective area 30mm2(CV=0.89)
Handle Size 45 x 23mm/1.77" x 0.91"(H*Dia)
Working Medium 40 Micron Filtered Air

Operating Temperature Range

-5~50 Celsius Degree
Total Size(Approx.) 10.2 x 4 x 2.7cm/4'' x 1.57'' x 1.06'' (L*W*H)
Color Black
Material Metal, Plastic
Weight 165g
Package 1 x Hand Pull Mechanical Valve
