32mm Bore 50mm Stroke Single Rod Double Acting Air Cylinder

32mm Bore 50mm Stroke Single Rod Double Acting Air Cylinder

More Views

32mm Bore 50mm Stroke Single Rod Double Acting Air Cylinder
$20.55

Availability: In stock

OR
Description

Details

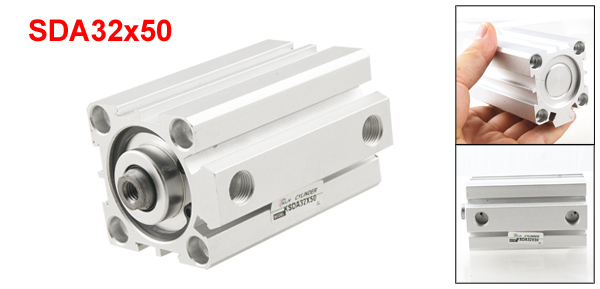

32mm Bore 50mm Stroke Single Rod Double Acting Air Cylinder

Product Name Air Cylinder
Model SDA32x50
Action Type Double Action
Bore 32mm / 1.3"
Stroke 50mm / 1.9"
Max Presssure 1.0Mpa / 10.2Kg/cm² / 145PSI
Rod Diameter 12mm / 0.47"'
Rod Thread Diameter 6mm / 0.23"
Air Hole Diameter 8.8mm / 0.34"
Mounting Hole Diameter 5mm / 0.19"
Mounting Hole Distance(center to center)

34 x 34mm / 1.3" x 1.3" (L * W)
Overall Size(Approx) 44 x 44 x 75mm / 1.7"x 1.7"x 2.9"(L*W*H)
Material Aluminum Alloy
Weight 282g
Package Content 1 x Air Cylinder
