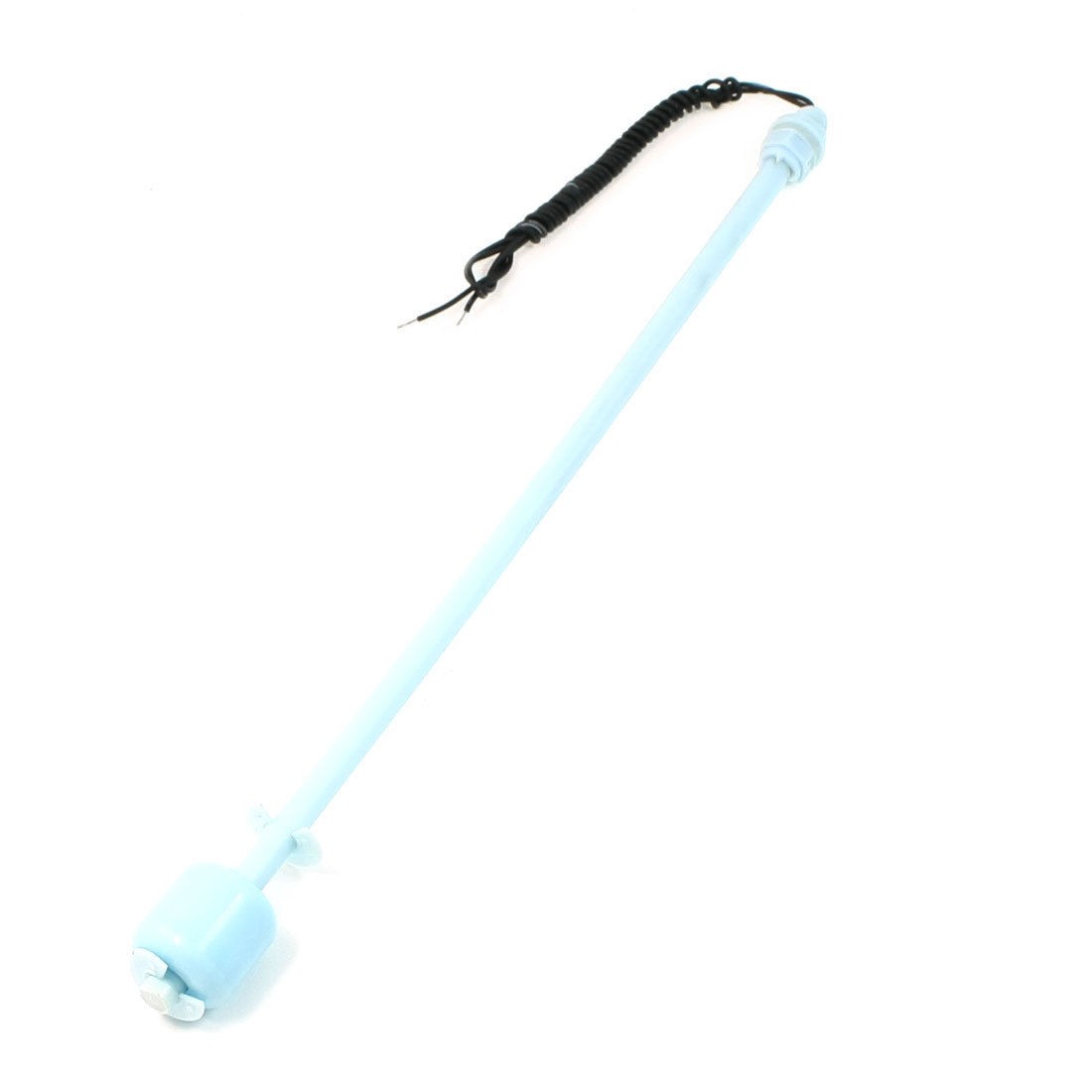

31cm Long Tank Pool Liquid Vertical Water Level Sensor PP Plastic Float Switch

31cm Long Tank Pool Liquid Vertical Water Level Sensor PP Plastic Float Switch

More Views

31cm Long Tank Pool Liquid Vertical Water Level Sensor PP Plastic Float Switch
$10.20

Availability: In stock

OR
Description

Details

31cm Long Tank Pool Liquid Vertical Water Level Sensor PP Plastic Float Switch

Product Name Float Switch
Contacts NO+NC
Max Contact Rating

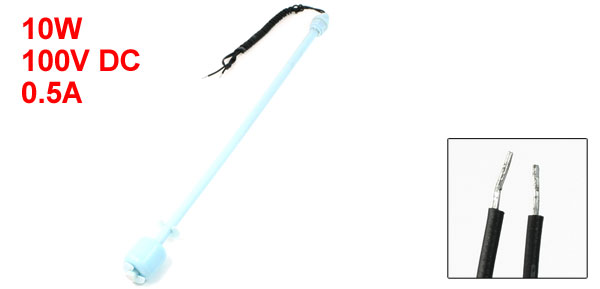

10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +60 °C / 85 °C
Float Ball Material PP
Float Body Material PP
Float Ball Size(Approx) 25 x 26mm / 1" x 1.1"(L*D)
Thread Dia(Approx) 10mm / 0.39"
Nut Dia(Approx) 14mm / 0.55"
Bottom Clip Dia(Approx) 21mm / 0.85"
Body Total Length 31cm / 12.2"
Cable Length 59cm /23.2"
Color Blue
Net Weight 32g
Package Content 1 x Float Switch
