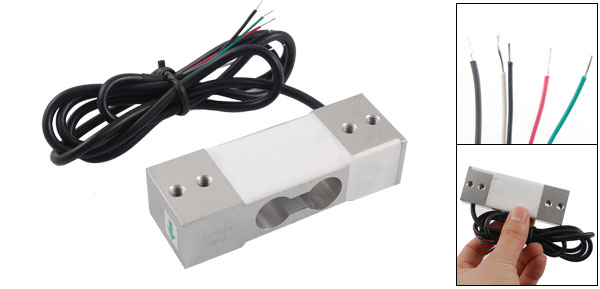

30kg Aluminium Alloy Single Ended Shear Beam Load Cell Pqqkc
Product Name Load Cell Rated Load 30Kg Sensitivity 0.7±0.1mV/V Zerobalance ±0.1mV/V Non Linearity ±0.03% Hysteresis ±0.04% Repeatability ±0.05% Insulation Resistance >=2000M Output Resistance 1000±10% Input Resistance 1043±10% Temp Effect on Zero 0.1±0.09%F.S./ 10°C Temp Effect on Zero Output ±1.0%F.S./ 10°C Voltage ≤10VDC Storage Temperature Range -20°C~70°C Operating Temperature Range 0°C~40°C Safe Overload 150%F.S. Ultimate Overload 200%F.S Input End Red+, Black- Output End Green+, White- Total Size 88 x 30 x 22mm/3.46'' x 1.18'' x 0.87'' (L*W*T) Thead Hole Diameter 4mm / 0.157" Center Hole Size 33 x 14mm/1.3'' x 0.6'' (L*W) Cable Length 1M/39.4'' Material Aluminium Alloy Color Silver Tone Weight 136g Package Content 1 x Shear Beam Load Cell - Reviews
-
