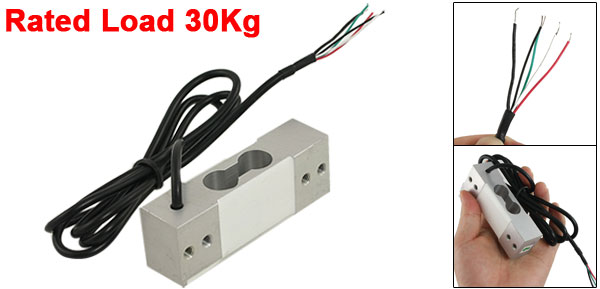

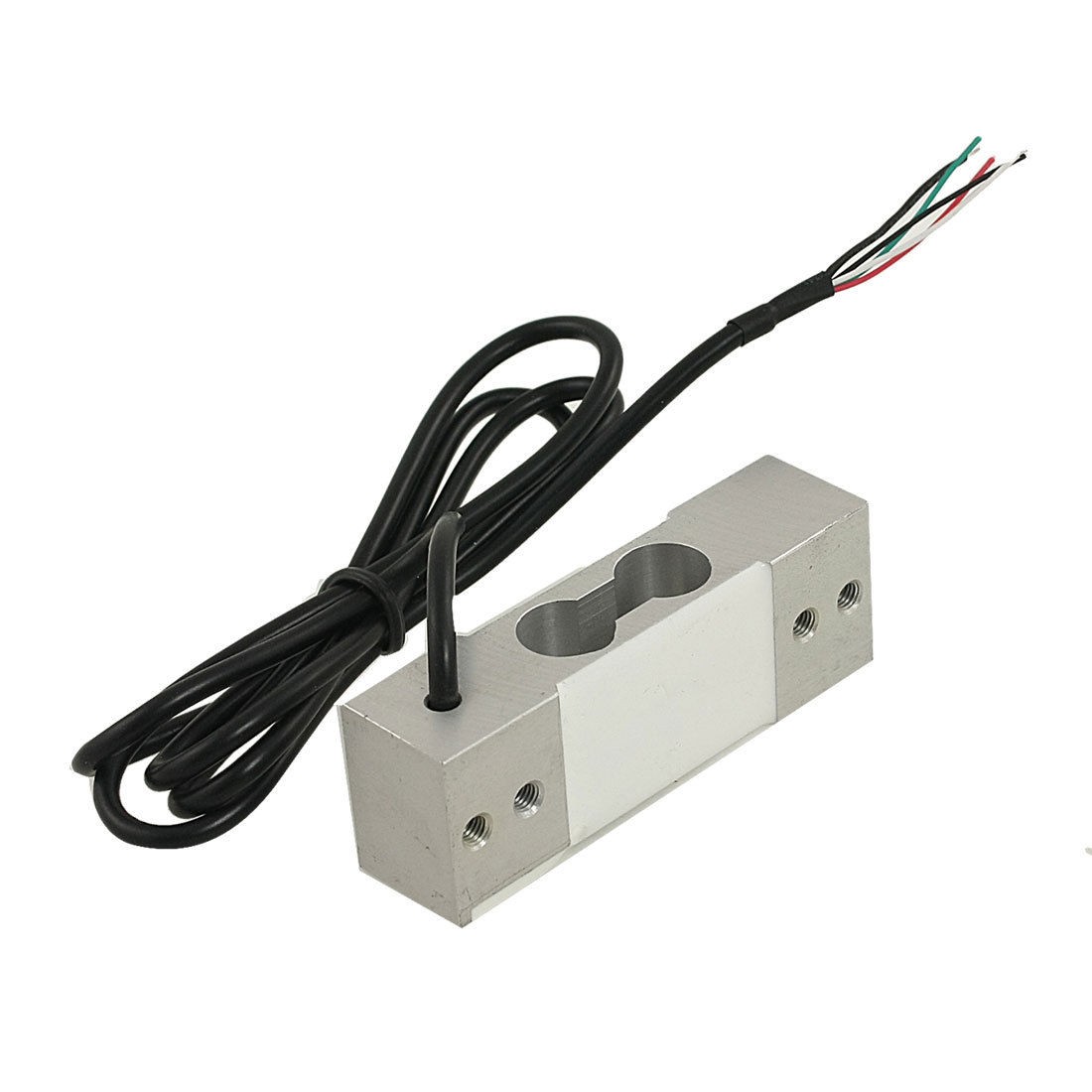

30kg 66 Lbs Single Ended Shear Beam Load Cell Weighing Sensor
Product Name Load Cell Rated Load 30Kg/ 66 Lbs Rated Output 2.0±10%mV/V Linearity ≤0.02%F.S Hysteresis ≤0.02%F.S Repeatability ≤0.02%F.S Zero Balance ±2%F.S Temp Effect on Zero ≤0.03%F.S./ 10°C Temp Effect on Zero Output ≤0.025%F.S./ 10°C Creep (30min) ≤0.025%F.S./ 30 min Crner Error ±1uV Input Impedance 410±10Ω Output Impedance 350±3Ω Insulation >5000MΩ/50V DC Compensated Temperature Range -20°C~60°C Operating Temperature Range -10°C~40°C Safe Overload 150%F.S. Ultimate Overload 200%F.S Input End Red+, Black- Output End Green+, White- Test Insrtument E2000 Force Testing Equipment Actual Load Excitation Voltage 5-10V DC Total Size 88 x 30 x 22mm/3.46'' x 1.18'' x 0.87'' (L*W*T) Thead Hole Diameter 4mm / 0.157" Center Hole Size 25 x 15mm/1'' x 0.59''(L*W) Cable Length 1M/39.4'' Material Aluminium Alloy Color Silver Tone Weight 132g Package Content 1 x Shear Beam Load Cell - Reviews
-
