| Product Name |

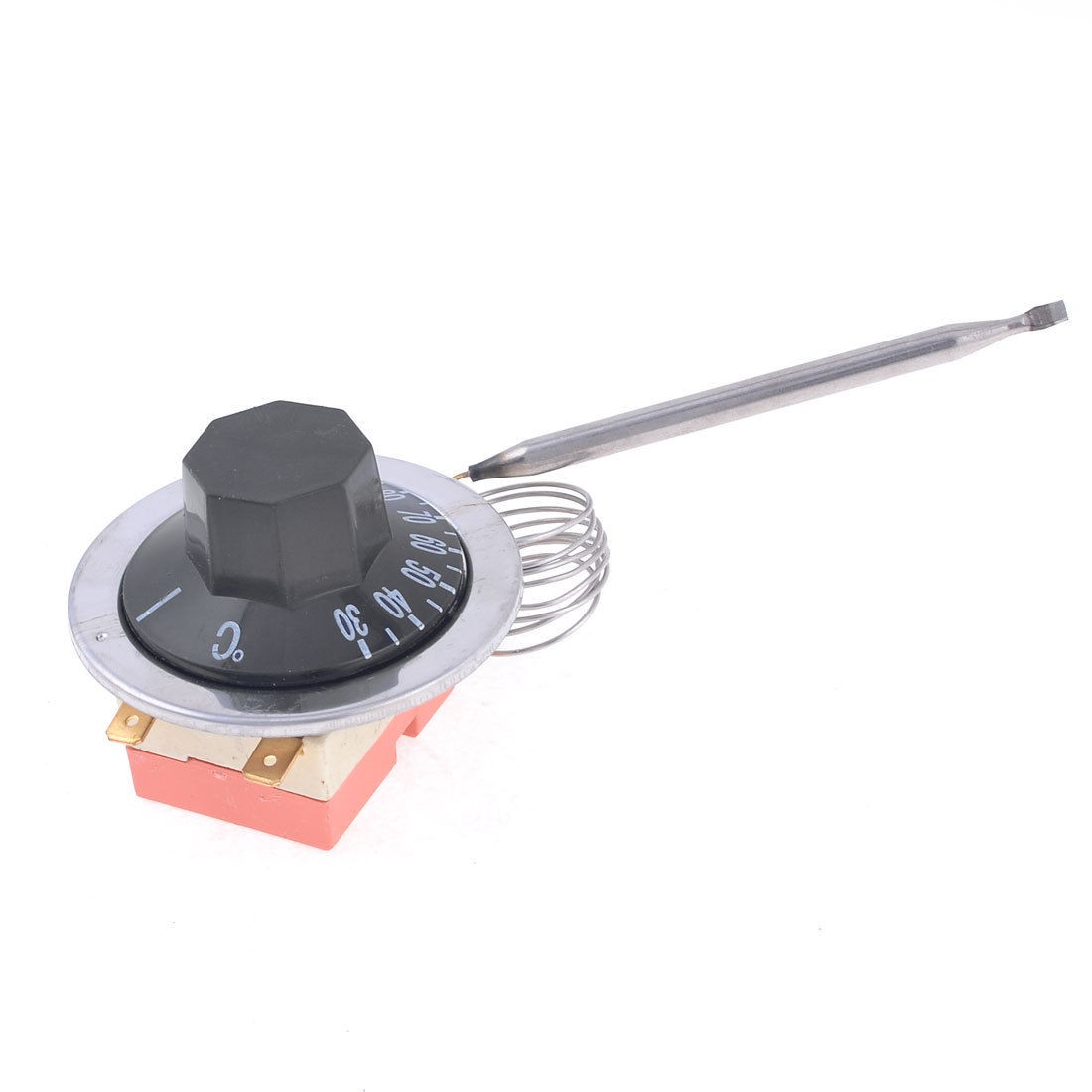

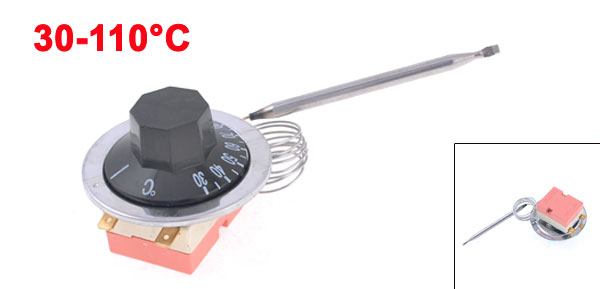

Temperature Capillary Thermostat |
| Material |
Plastic, Resin, Metal |
| Contact |
NC(Normal Closed) |
| Control Temerature |
30-110°C |
| Rating |
16(3)A 250V 50/60Hz, 10(1.8)A 400V AC |
| Connect Method |
two pin connect to power electro circuit |
| Knob Color |
Black |
| Probe Diameter |
6mm / 0.23" |
| Probe Length |
7cm / 2.7" |
| Capillary Length(Approx.) |
72cm / 28.3" |
| Pin Size |
9 x 6.5mm / 0.35" x 0.25" (L*W) |
| Base Dimension |
43 x 34 x 23mm / 1.7" x 1.3" x 0.9" (L*W*H) |
| Overall Dimension |
68 x 53mm / 2.6" x 2.1" (Max.D*H) |
| Weight |
90g |
| Package Content |
1 x Temperature Capillary Switch |
