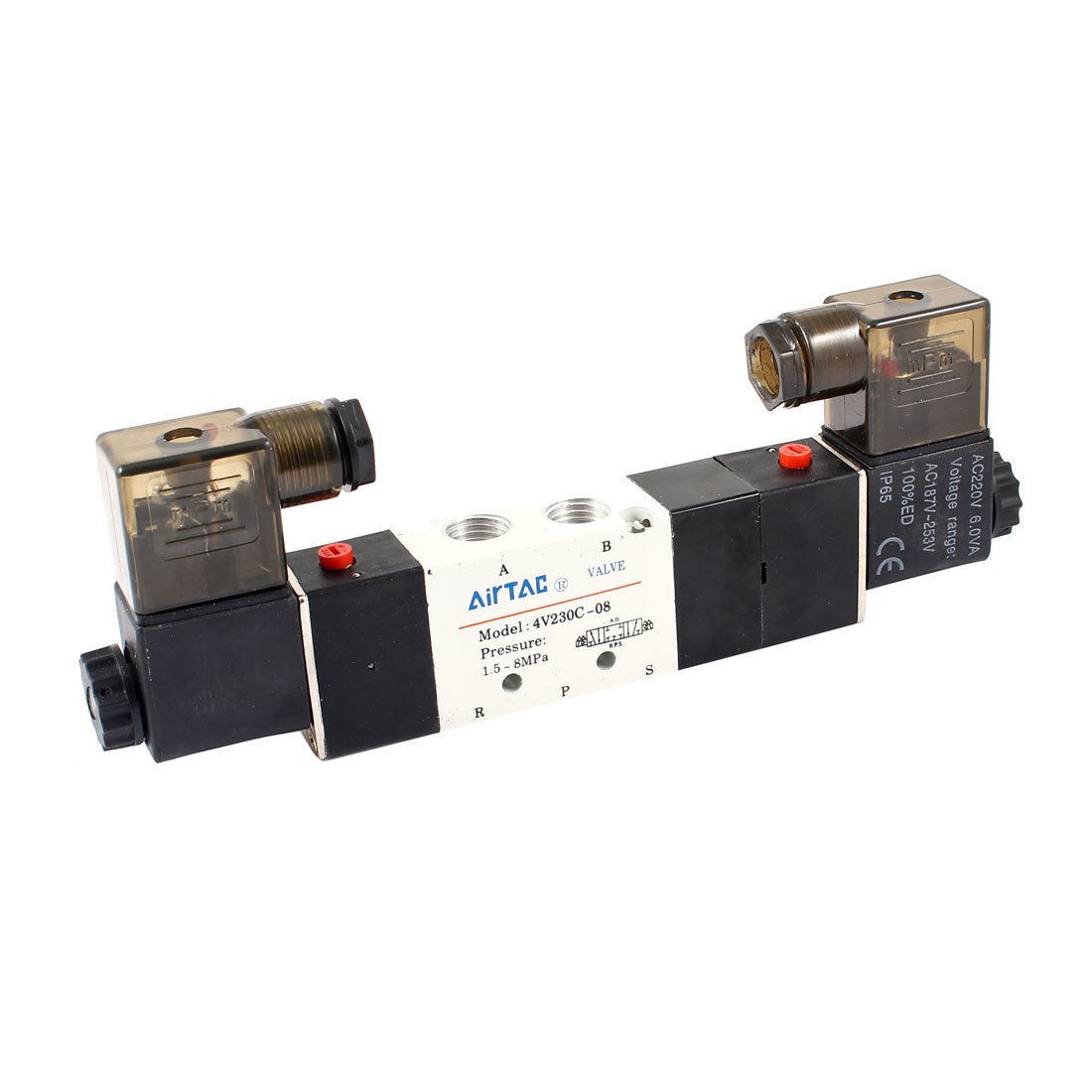

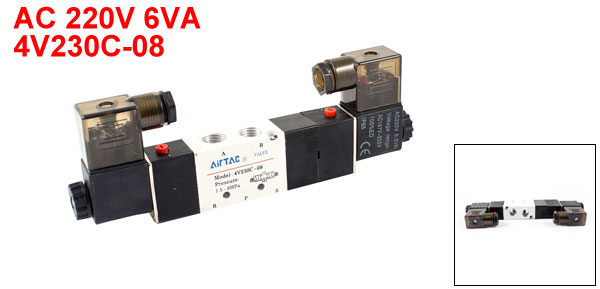

3 Position 5 Way Air Solenoid Valve AC220V 6VA 4V230C 08

More Views

$25.65

Availability: In stock

Qty:

Description

Product Name	Solenoid Valve
Model	4V230C-08
Type	Three-Position Five Way
Effective sectional Area	12mm2(Cv=0.67)
Working Medium	40 Micron Filtered Air
Solenoid Coil	Monocoil
Montion Patten	Inner Guide Type
Material	Aluminium Alloyl, Plastic
Voltage
Voltage	AC220V 6VA
Voitage Range	AC187-253V 50Hz/60Hz
Operating Pressure	0.15-0.8mpa (1.5-8kgf/cm2)
Port Inner Dia.	Air Inlet=Air Outlet=11.4mm(G1/4), Exhaust=8.56mm(G1/8)
Total Size	20 x 6.5 x 2cm / 7.7" x 2.5" x0.8"(LWT)
Working Temperature	5--50°C
Mounted Hole Dia	3mm
Shortest Excitation Time	0.05 Second
Main Color	Black,Gray
Weight	356g
Package Content	1 x Solenoid Valve
