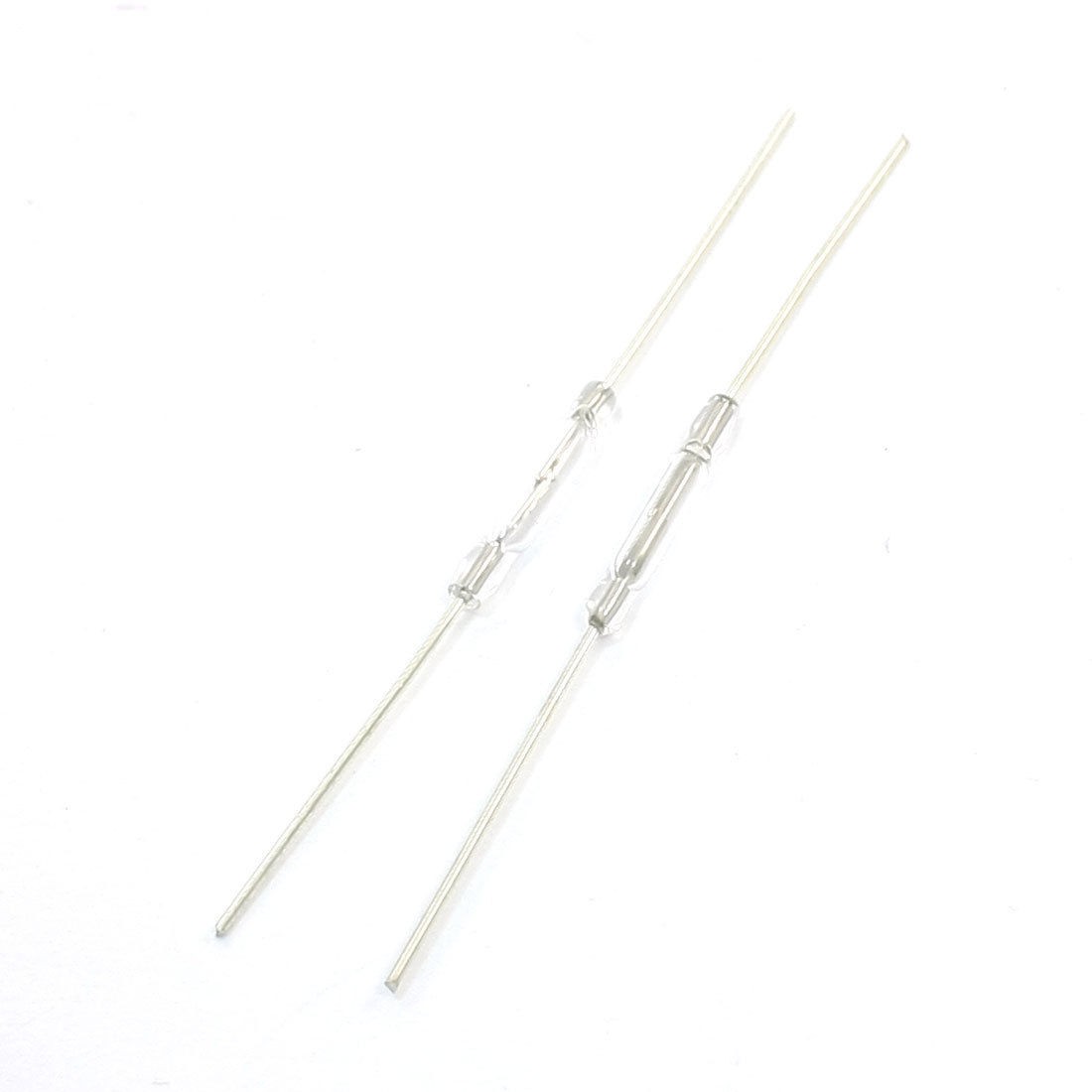

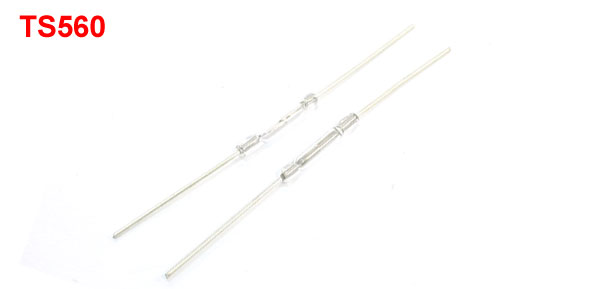

2Pcs Clear Glass Sealed Axial Leading Reed Switch DC 75V/100V 0.5A TS560

2Pcs Clear Glass Sealed Axial Leading Reed Switch DC 75V/100V 0.5A TS560

More Views

2Pcs Clear Glass Sealed Axial Leading Reed Switch DC 75V/100V 0.5A TS560
$3.62

Availability: In stock

OR
Description

Details

2Pcs Clear Glass Sealed Axial Leading Reed Switch DC 75V/100V 0.5A TS560

Product Name Reed Switch
Model TS560
Contact Type NO(Normal Open)
Max. Rating Power 8VA
Max. Switching Voltage DC 75V/100V
Max. Switching Current 0.5A
Max. Carry Current 1A
Min. Breakdown Voltage DC 150V
Max. Initial Contact Resistance 250mOhm
Working Temperature Range -40~+125C
Pull in Value 10-15AT
Tube Size (Approx.) 14 x 2mm/ 0.57" x 0.08" (L*D)
Lead Terminal Size(Each Side) 21 x 0.6mm/ 0.83" x 0.06"(L*D)
Total Length (Approx.) 54mm/2.1"
Material Glass, Metal
Color Gold Tone, Clear
Weight 1g
Package Content 2 x Reed Switch
