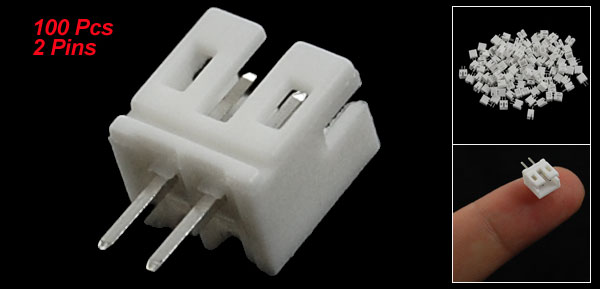

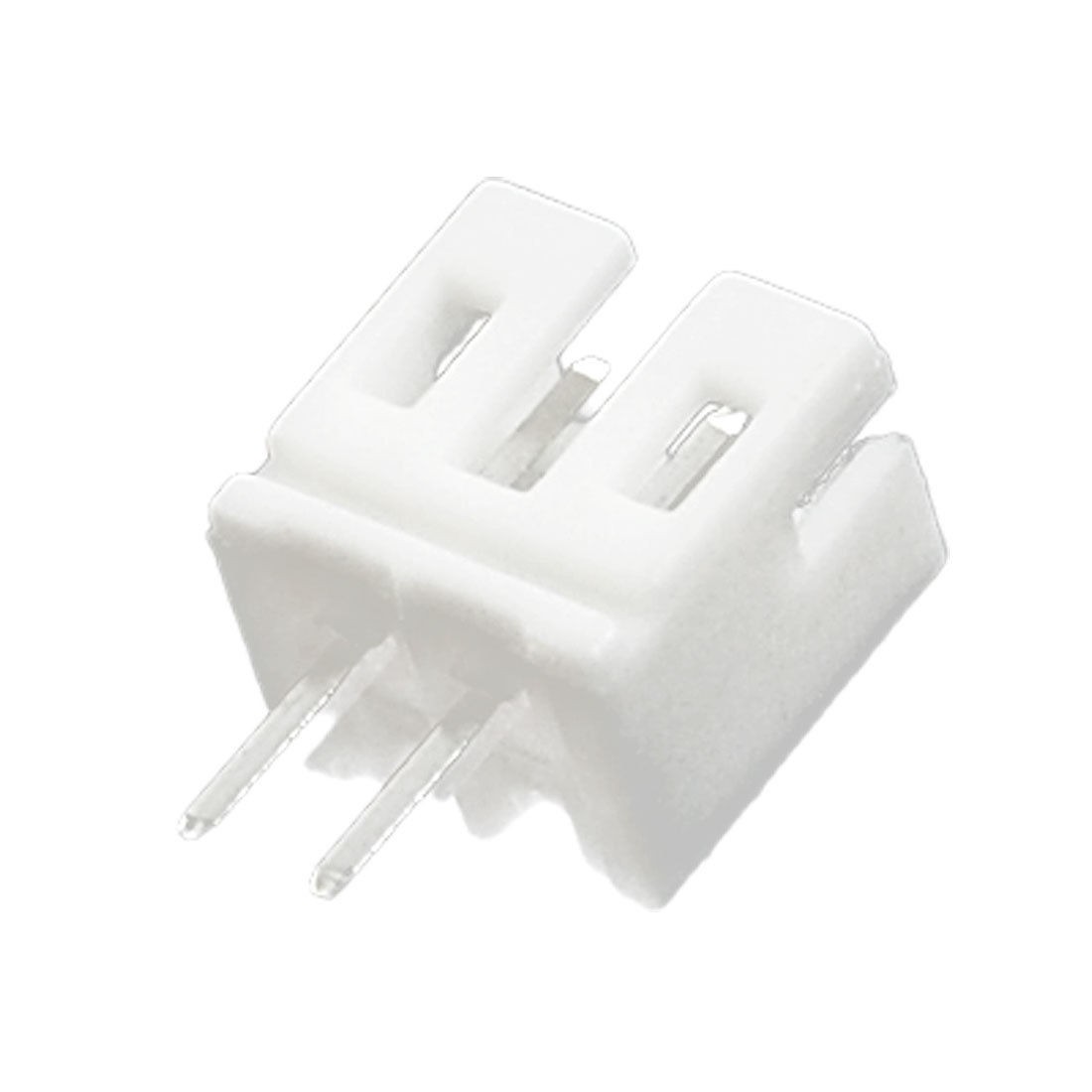

2mm Pitch PH Pressure Welding Bar Connector Wafers 2A

More Views

$4.56

Availability: In stock

Qty:

Description

Product Name	PH Pressure Welding Bar Connector Wafer
Poles	2 Pin
Pitch	2mm/0.0787"
Applicable PC Board Thickness	1.6mm/0.063"
Voltage Rating	250V AC/DC
Current Rating	2A
Contact Resistance	<=0.02Ω
Insulation Resistance	>=1000MΩ
Withstand Voltage	800V AC/minute
Temperature Range	-25°C~+85°C
Pin Length	3mm/0.118"
Overall Size(Each)	6 x 4.7 x 6mm/0.236" x 0.185" x 0.236"(LWMounting Height)
Material	Wafer: Nylon UL94V-0
Material	Terminal: Phosphor Bronze Tin/plated
Color	White
Weight	13g
Package Content	100 Pcs(±2) x PH Pressure Welding Bar Connector Wafers
