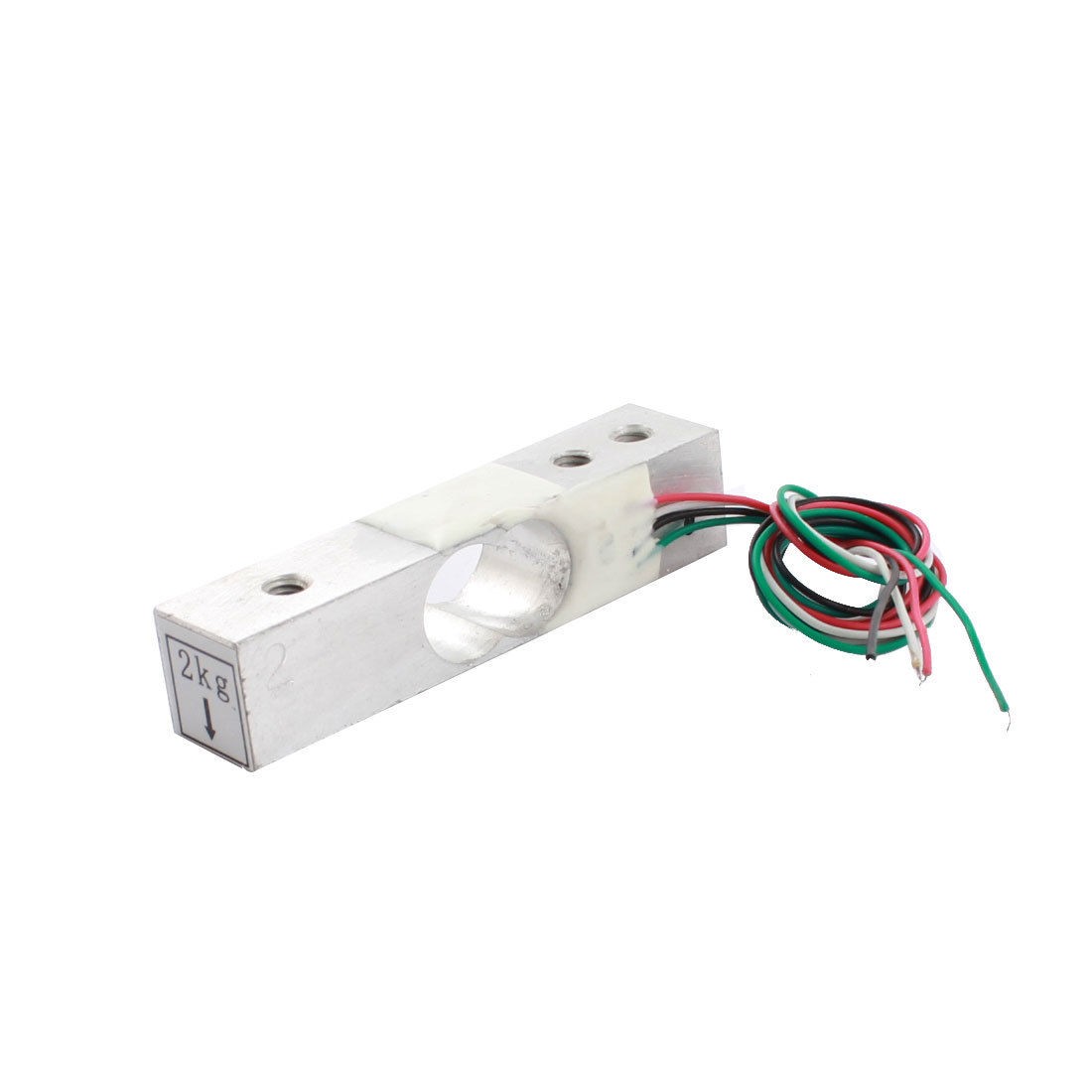

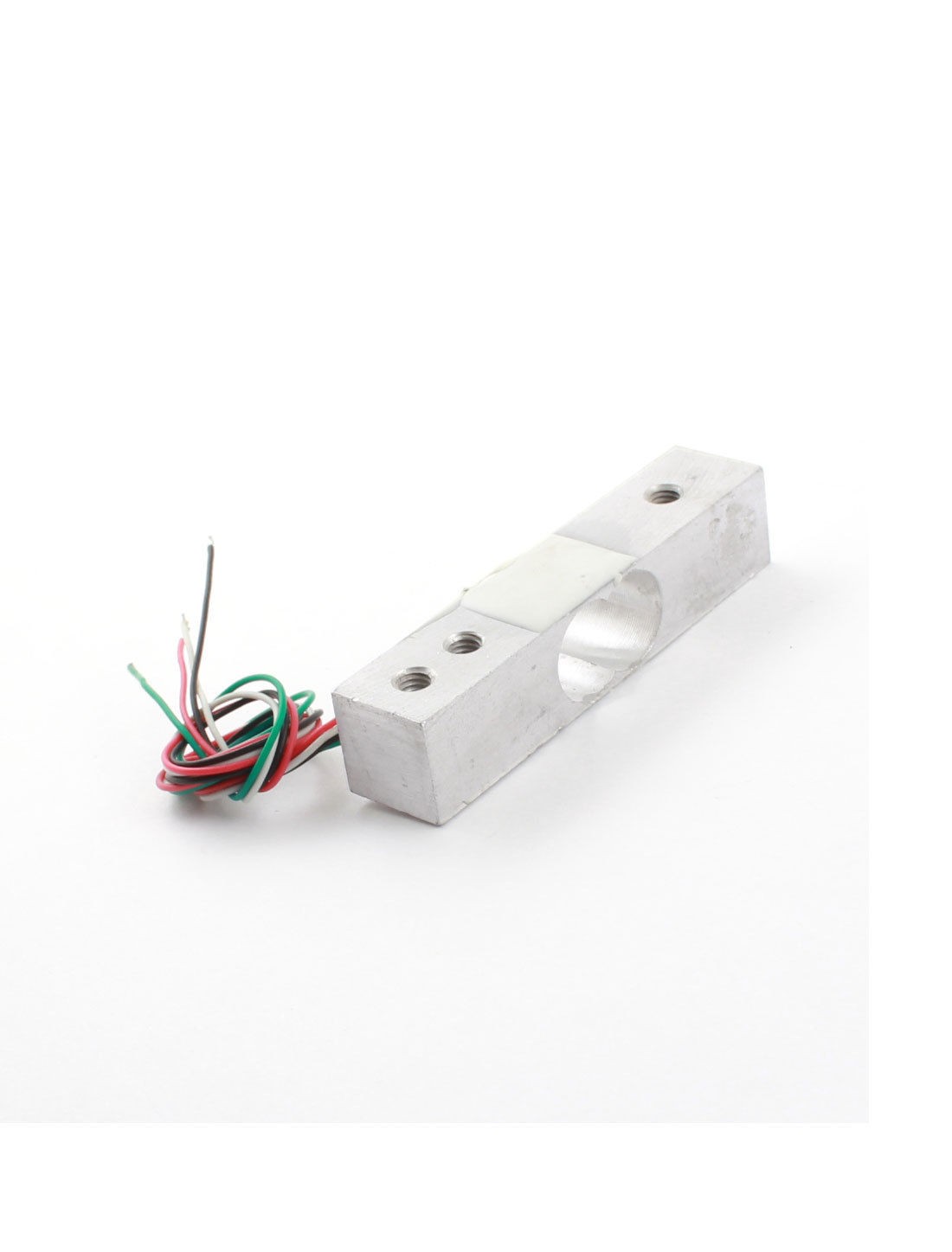

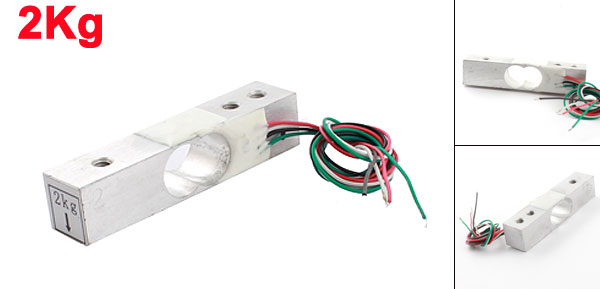

2Kg 3mm 3-Hole Aluminium Alloy Portable Electronic Scale Load Cell

More Views

$8.53

Availability: In stock

Qty:

Description

Product Name	Load Cell
Model	YZC-131
Rated Load	2Kg /4.4lb
Rated Output	1.2±0.1mV/V
Input Resistance	1066 ± 20 Ohm
Output Resistance	1000 ± 20 Ohm
Insulation Resistance	2000 Ohm
Working Temperature	-20°C~+65°C
Compensated Temperature Range	-10°C~+50°C
Safety Overload	120%F.S
Recommend Excitation Voltage	DC 5V
Max Excitation Voltage	DC 10V
Total Size	61 x 14 x 13mm /2.4" x 0.55" x 0.51"(LWT)
Screw Hole Type	3 Hole
Thead Diameter	3mm / 0.12"
Cable Length	250mm/ 10''
Material	Aluminium Alloy
Color	Silver Tone
Weight	22g
Package Content	1 x Load Cell
