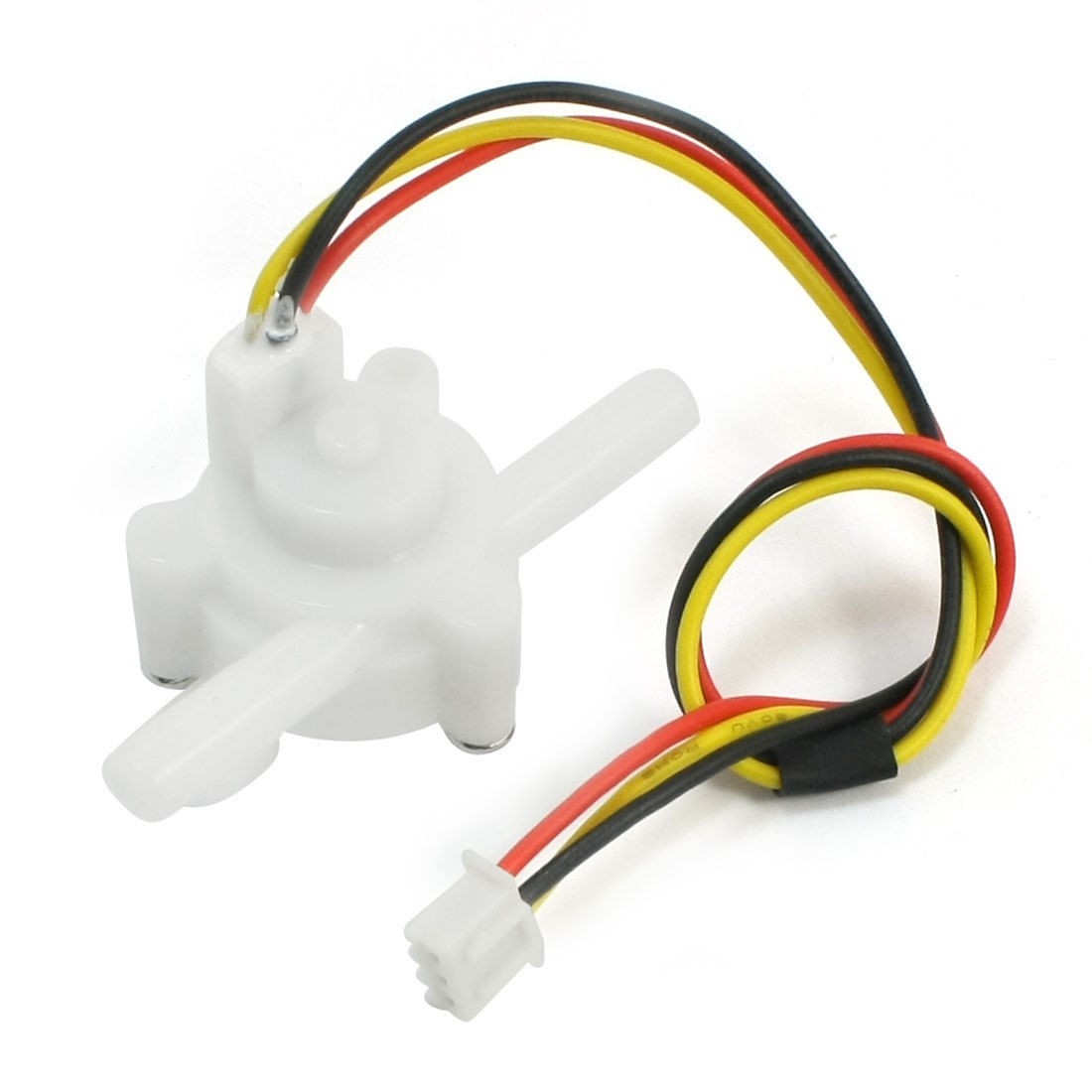

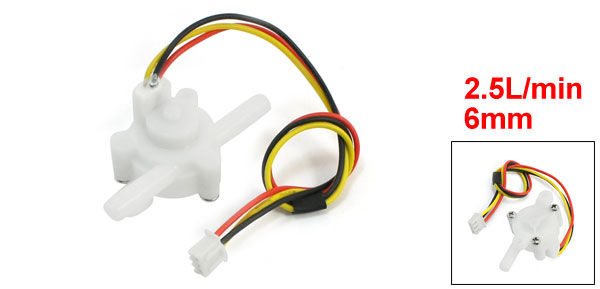

2.5L/min 6mm POM Double Ended Intubation Hall Effect Water Flow Sensor

2.5L/min 6mm POM Double Ended Intubation Hall Effect Water Flow Sensor

More Views

2.5L/min 6mm POM Double Ended Intubation Hall Effect Water Flow Sensor
$10.03

Availability: In stock

OR
Description

Details

2.5L/min 6mm POM Double Ended Intubation Hall Effect Water Flow Sensor

Product Name Water Flow Sensor
Model SEN-HZ06S
Type Straight Type
Flow Range 2.5L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V
Low Level of Pulse Output <0.5V
Max Pressure 0.8Mpa
Insulation Performance(Min.) 100MΩ
Connector Type 3Pin JST Connector
Main Material POM
Total Size 56x 30 x 28mm / 2.2" x 1.2" x 1.1"(L*W*T)
Outlet=Inlet Outer Diameter 6mm/0.24"
Cable Length 21cm / 8.3"
Mounting Hole Diameter 4mm/ 0.16"
Body Color White
Weight 19g
Package Content 1 x Water Flow Sensor
