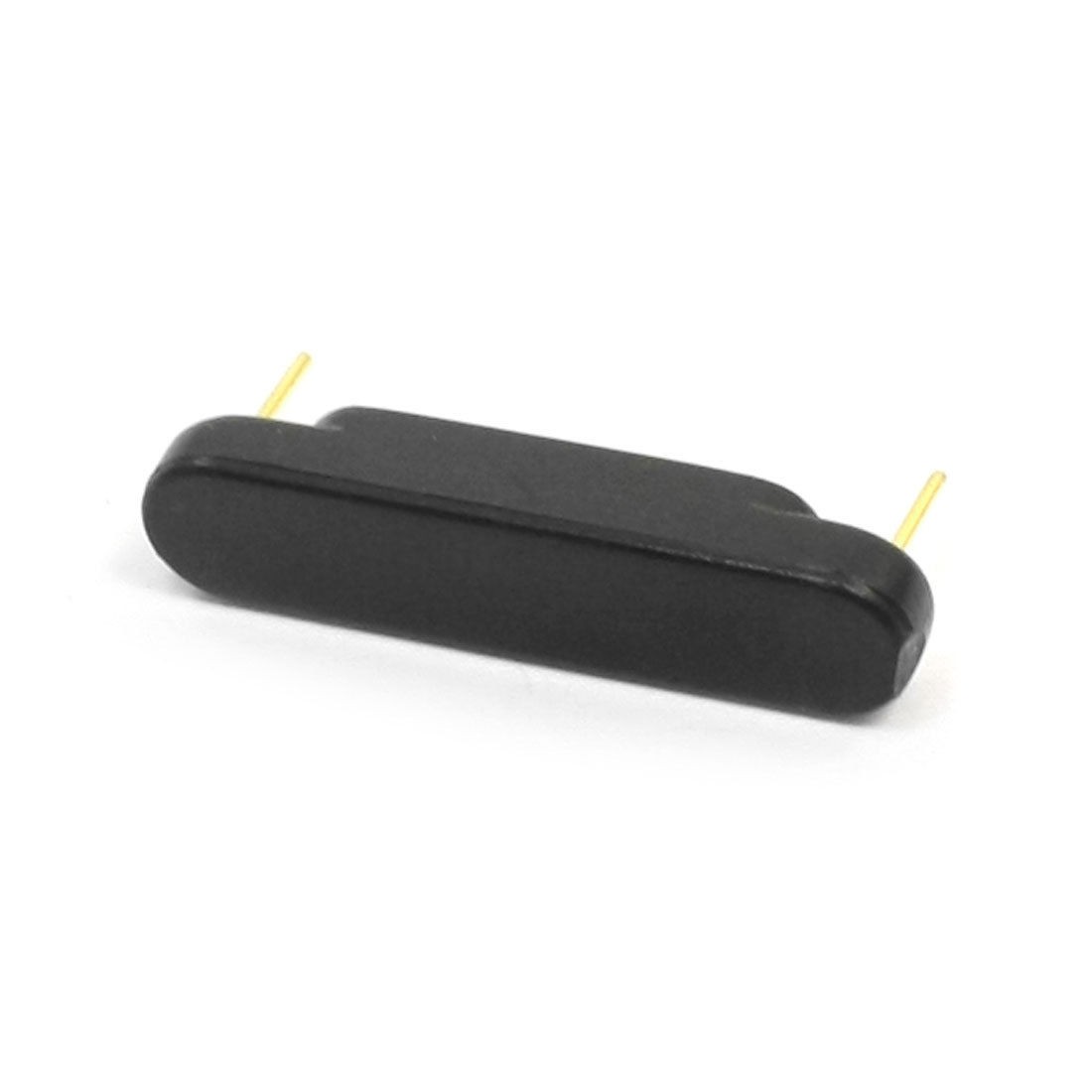

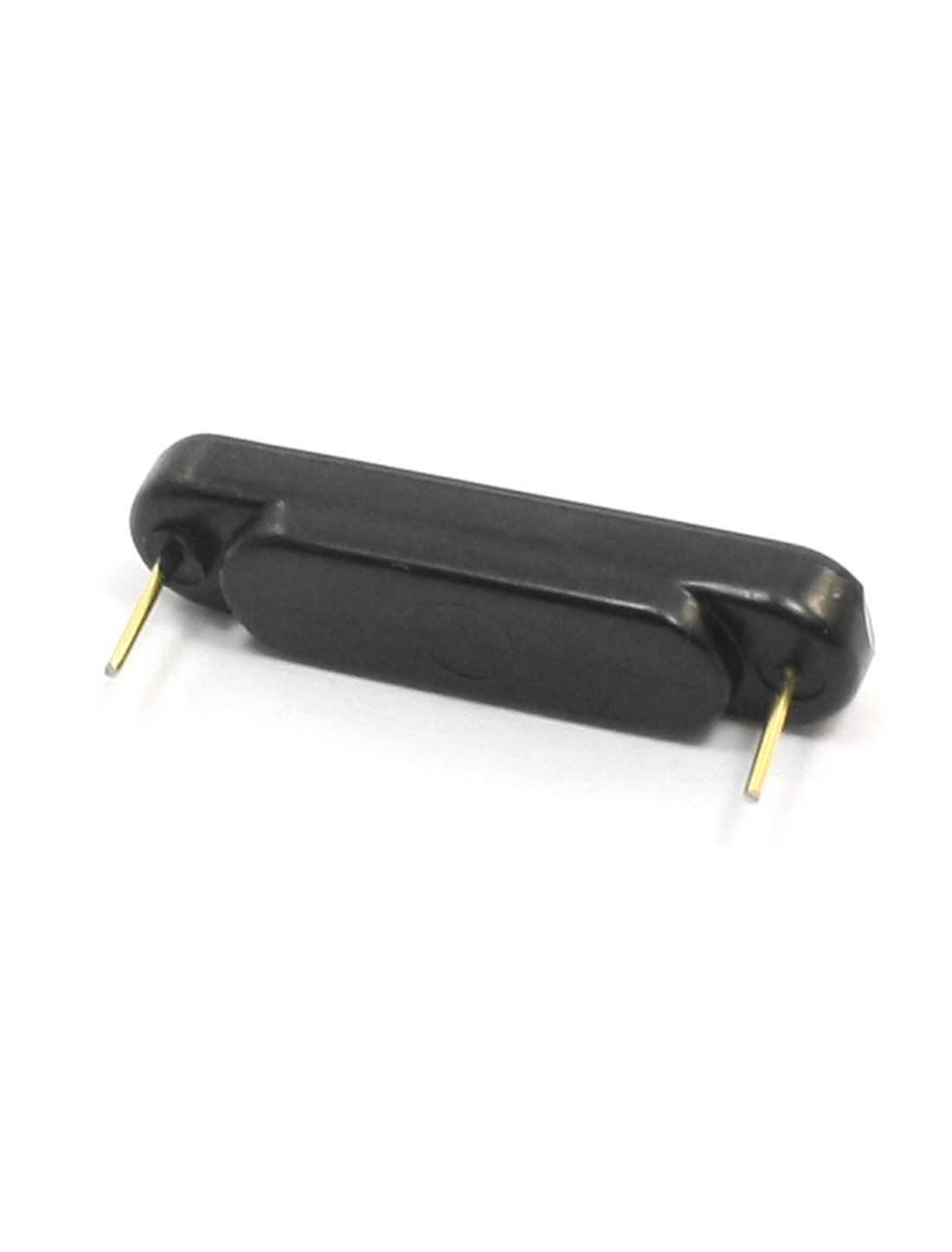

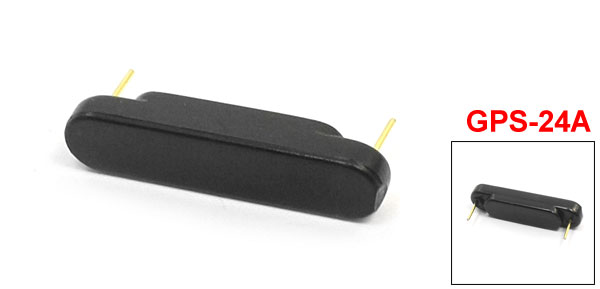

  • 23mm x 5mm Plastic Tube 2 Pins Reed Switch DC 100V 0.5A GPS-24A

23mm x 5mm Plastic Tube 2 Pins Reed Switch DC 100V 0.5A GPS-24A

23mm x 5mm Plastic Tube 2 Pins Reed Switch DC 100V 0.5A GPS-24A

More Views

23mm x 5mm Plastic Tube 2 Pins Reed Switch DC 100V 0.5A GPS-24A
$3.87

Availability: In stock

OR
Description

Details

23mm x 5mm Plastic Tube 2 Pins Reed Switch DC 100V 0.5A GPS-24A

Product Name Reed Switch
Model GPS-24A
Contact Type NO(Normal Open)
Max. Contact Rating 10W
Max. Switching Voltage DC 100V
Max. Switching Current 0.5A
Min. Breakdown Voltage DC 220V
Max. Initial Contact Resistance 100mOhm
Min. Insulation Resistance 100Ohm
Max. Release Time  0.1ms
Max. Operate Time   0.4ms
Body Size (Approx.) 23 x 5 x 4mm/ 0.91" x 0.2"  x 0.16" (L*W*H)
Pin Size(Each Side) 5 x 0.4mm/ 0.2" x 0.016"(L*D)
Pin Pitch 20mm/0.8"
Material Plastic, Metal
Color Gold Tone, Black
Weight 1g
Package Content 1 x Reed Switch
