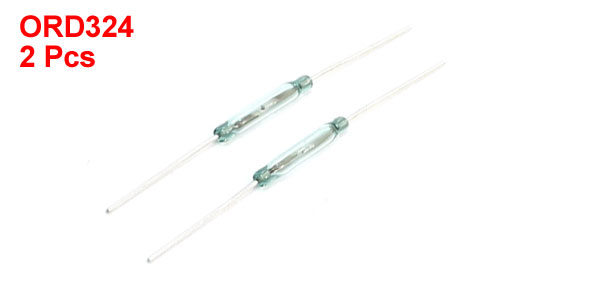

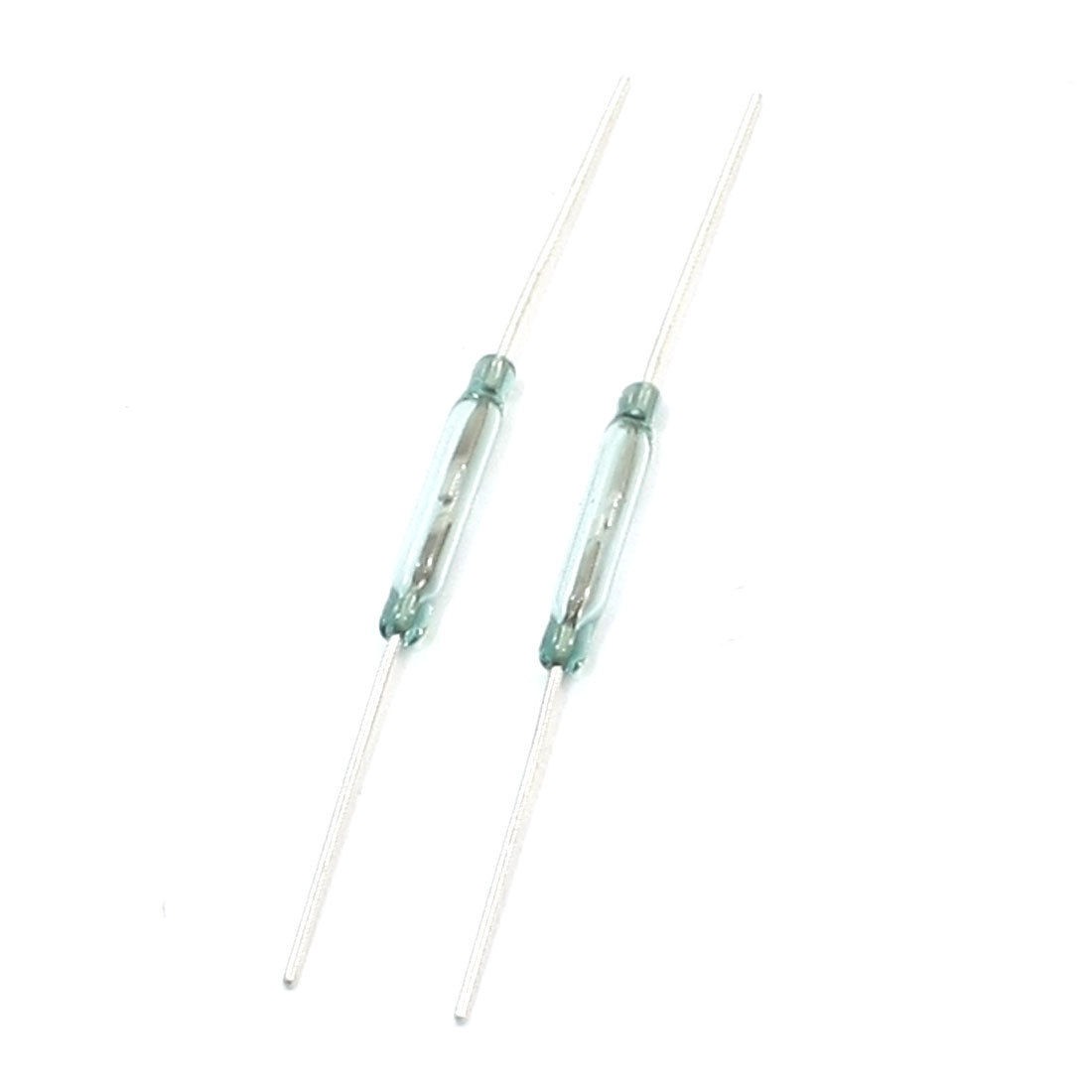

2 Pcs Clear Glass Sealed Axial Leading Reed Switch DC 100V 0.5A ORD324

More Views

$3.63

Availability: In stock

Qty:

Description

Product Name	Reed Switch
Model	ORD324
Contact Type	NO(Normal Open)
Max. Contact Rating	10W
Max. Switching Voltage	DC 100V
Max. Switching Current	0.5A
Max. Carry Current	1.0A
Min. Breakdown Voltage	DC 220V
Max. Initial Contact Resistance	100mOhm
Min. Insulation Resistance	1010Ohm
Max. Release Time	0.4ms
Max. Operate Time	0.05ms
Pull in Value	10-13AT
Lead Terminal Size(Each Side)	16 x 0.4mm/ 0.63" x 0.2" x 0.16" (LWH)
Tube Size (Approx.)	13 x 2mm/ 0.51" x 0.08"(L*D)
Total Length (Approx.)	46mm/1.8"
Material	Glass, Metal
Color	Gold Tone, Black
Weight	1g
Package Content	2Pcs x Reed Switch
