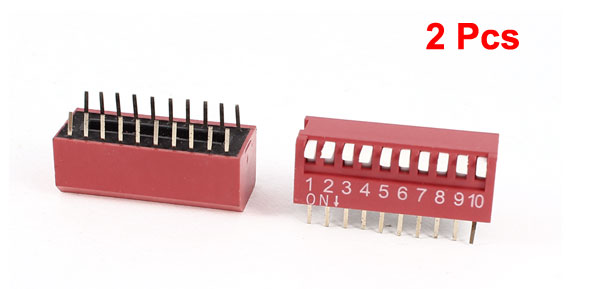

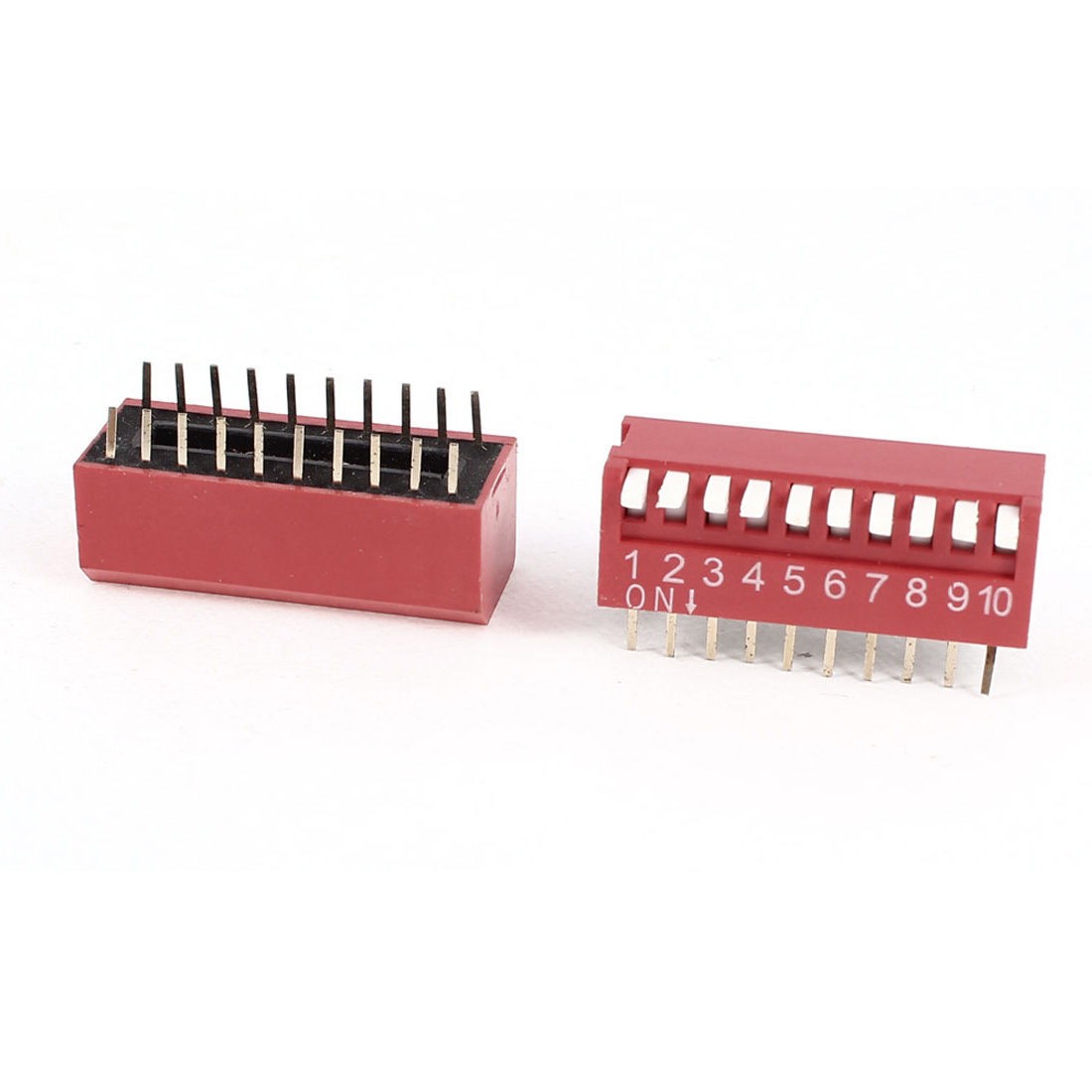

2 Pcs 2.54mm Pitch 10 Position 10-Bit 20 Pin Slide Type Red DIP Switch

More Views

$4.13

Availability: In stock

Qty:

Description

Product Name	DIP Switch
Type	Slide Type
Features	10Positions( 2 Row 20 Pin)
Pitch	2.54mm/0.1''
Non-Switching Rating	100mA DC 50V
Switching Rating	25mA DC 24V
Contact resistance	50mΩ 24VDC/100mA (at initial) 100mΩ typical, 24VDC/100mA (after life test)
Insulation Resistance	100mΩ Mini. At DC 500V
Operating Force	1000gf Max.
Temperature Range	-40 to 58C
Total Size	27 x 13 x 13mm / 1.1" x 0.51" x 0.51"(L * W * H)
Material	Plastic, Electric Parts
Main Color	Gold Tone, Red
Weight	76g
Package Content	2Pcs x DIP Switches
