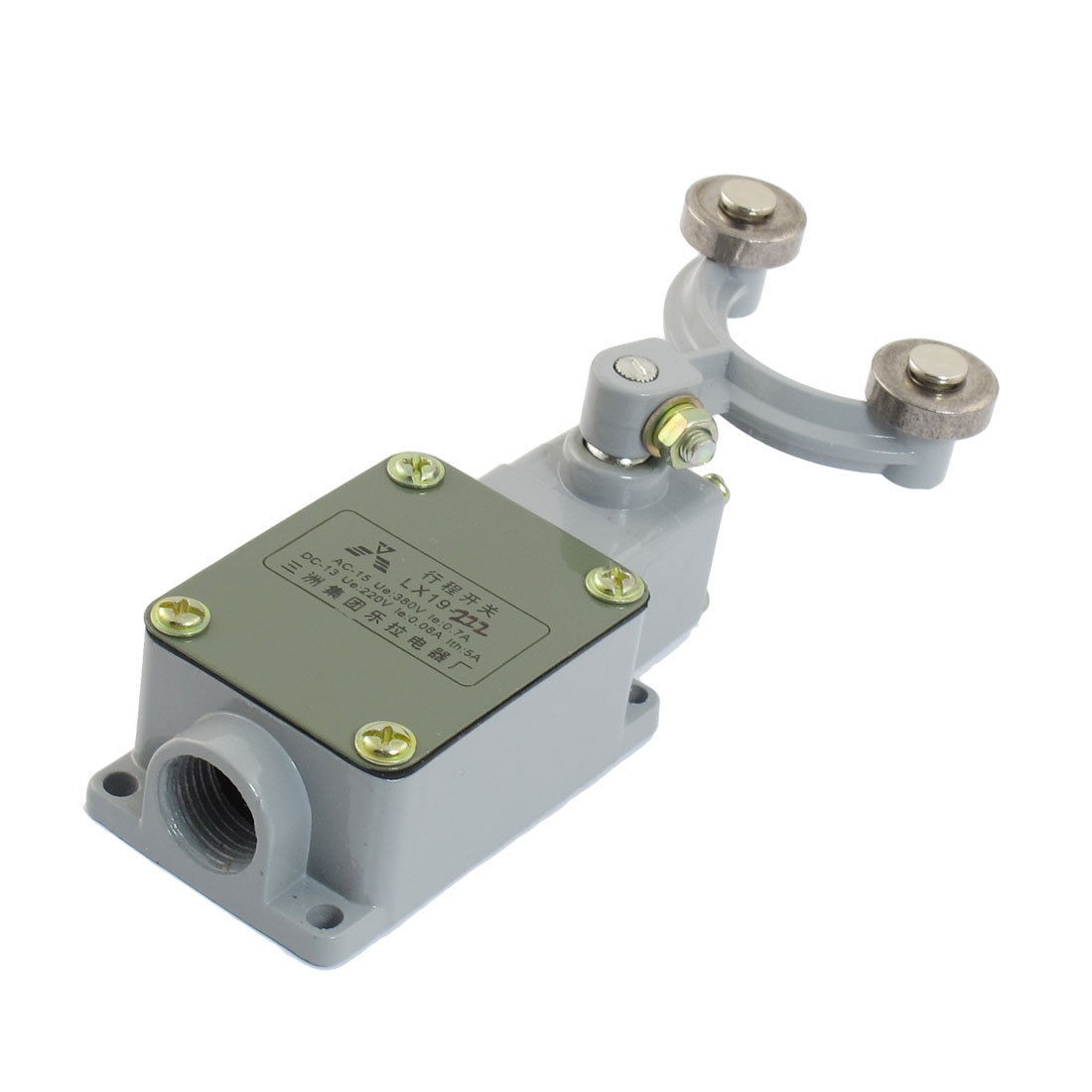

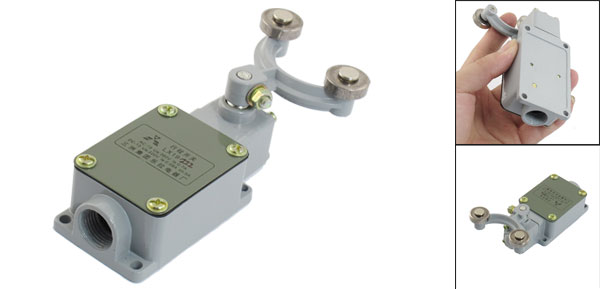

1NO 1NC SPDT Double Rotary Roller Lever Limit Switch 0.08A 220VDC 0.7A 380VAC

1NO 1NC SPDT Double Rotary Roller Lever Limit Switch 0.08A 220VDC 0.7A 380VAC

More Views

1NO 1NC SPDT Double Rotary Roller Lever Limit Switch 0.08A 220VDC 0.7A 380VAC
$9.13

Availability: In stock

OR
Description

Details

1NO 1NC SPDT Double Rotary Roller Lever Limit Switch 0.08A 220VDC 0.7A 380VAC

Product Name Limit Switch
Model No. LX19-222
Contact Configuration 1NO+1NC(SPDT)
Actuator Type Double Rotary Roller Lever
Action Type Latching
Ith 5A
Ue/Ie

AC 380V 0.7A(AC-15)

DC 220V 0.08A(DC-13)
Roller Wheel Size 6 x 18mm/ 0.24" x 0.71"(W*Dia.)
Lever Arm Length ~50mm/ 1.97"
Installing Hole Size ~4.5m/ 0.18"(Diameter)
Installing Hole Distance 10.3 x 35mm / 2.56" x 1.38"(L*W)(Center to Center)
Thread Hole Diameter 16mm/ 0.63"
Main Body Size ~103 x 44 x 26mm/ 4.1" x 1.7" x 1"(L*W*H)
Total Size ~120 x 40 x 37mm/ 4.7x 1.6" x 1.5"(L*W*H)
Material Plastic, Metal
Color As Picture Shown
Net Weight 199g
Package Content 1 x Limit Switch
