- Description
-
Details

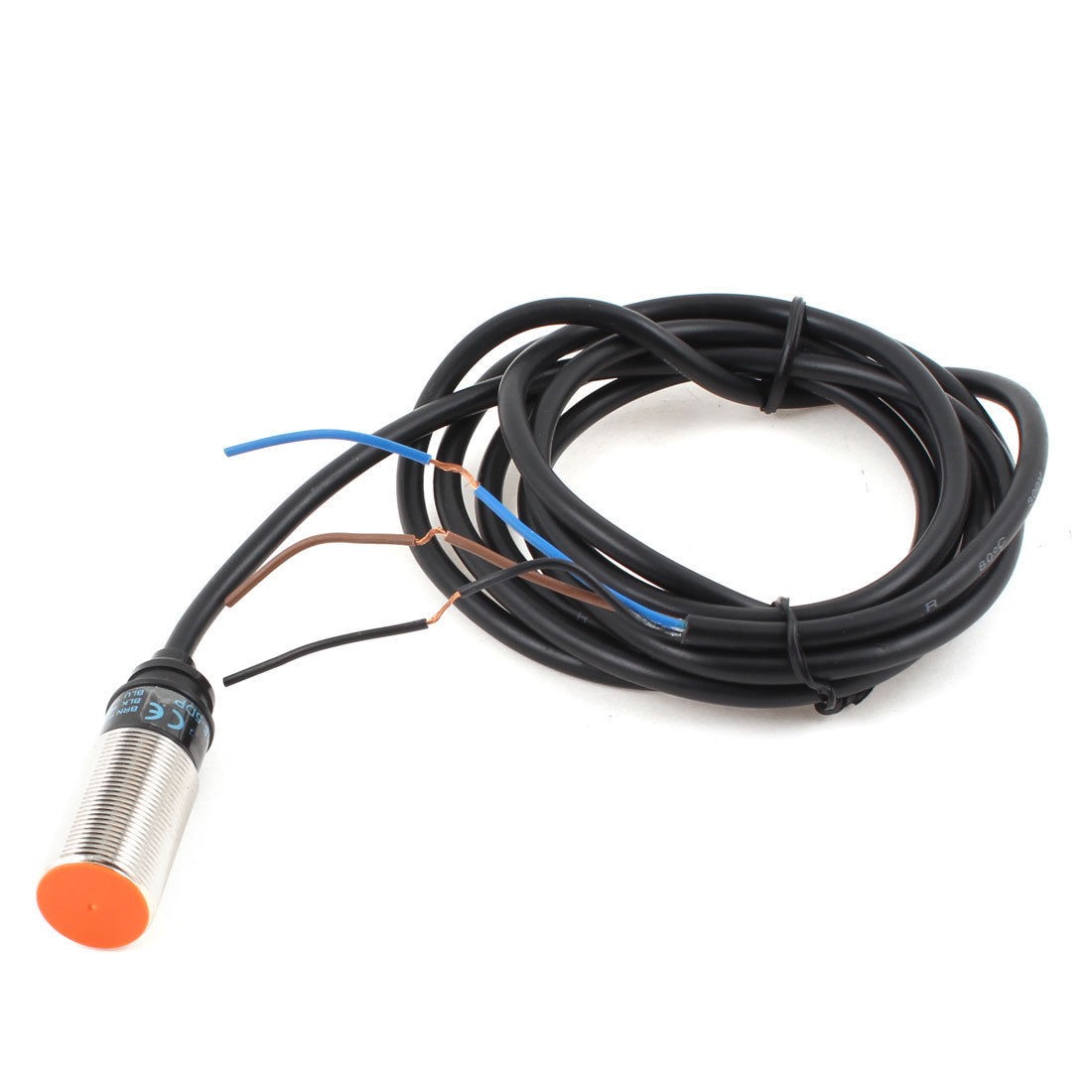

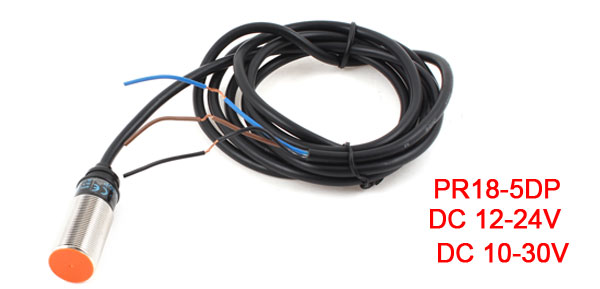

18mm Noncontact Detection Inductive Proximity Sensor Switch DC12-24V PNP
Product Name Proximity Switch Model PR18-5DP Wire Type 3 Wire Theory Inductive Sensor Output Type PNP, NO(Normal Open) Diameter of Head 18mm Detecting Distance 5mm±10% Hysteresis Max. 10% of Detecting Distance tandard Detecting Target Size:18 x 18 x 1mm
Material: Iron
Setting Distance 0 to 3.5 Supply Voltage DC 12-24V / DC 10-30v Current Consumption 10mA Response Frequency 350Hz Residual Voltage Max. 1.5V Variation Due To Temp. Fluctuation Max. +20% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output 200mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Indicator Red LED Operating Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse Polarity Protetion, Surge Protection, Overload & Short Circuit Prote Size 5 x 1.8cm / 2" x 0.7" ( L * Max. Dia ) Cable Length 194cm / 76.4" Extenal Material ABS Resin Net Weight 84g Color Black, Silver Tone, Orange Package Content 1 x Proximity Switch
